GDE-W

4 T

Applications

  • Commercial refrigeration cold rooms
  • Low ceiling commercial refrigeration cold rooms
  • Food processing rooms (fresh and sensitive products, seafood, meat)

Capacity Range

Unit coolers: From 1,8 to 34,5 kW

Brine coolers: Please use Scelte selection software

GDE-W Specifications

Overview

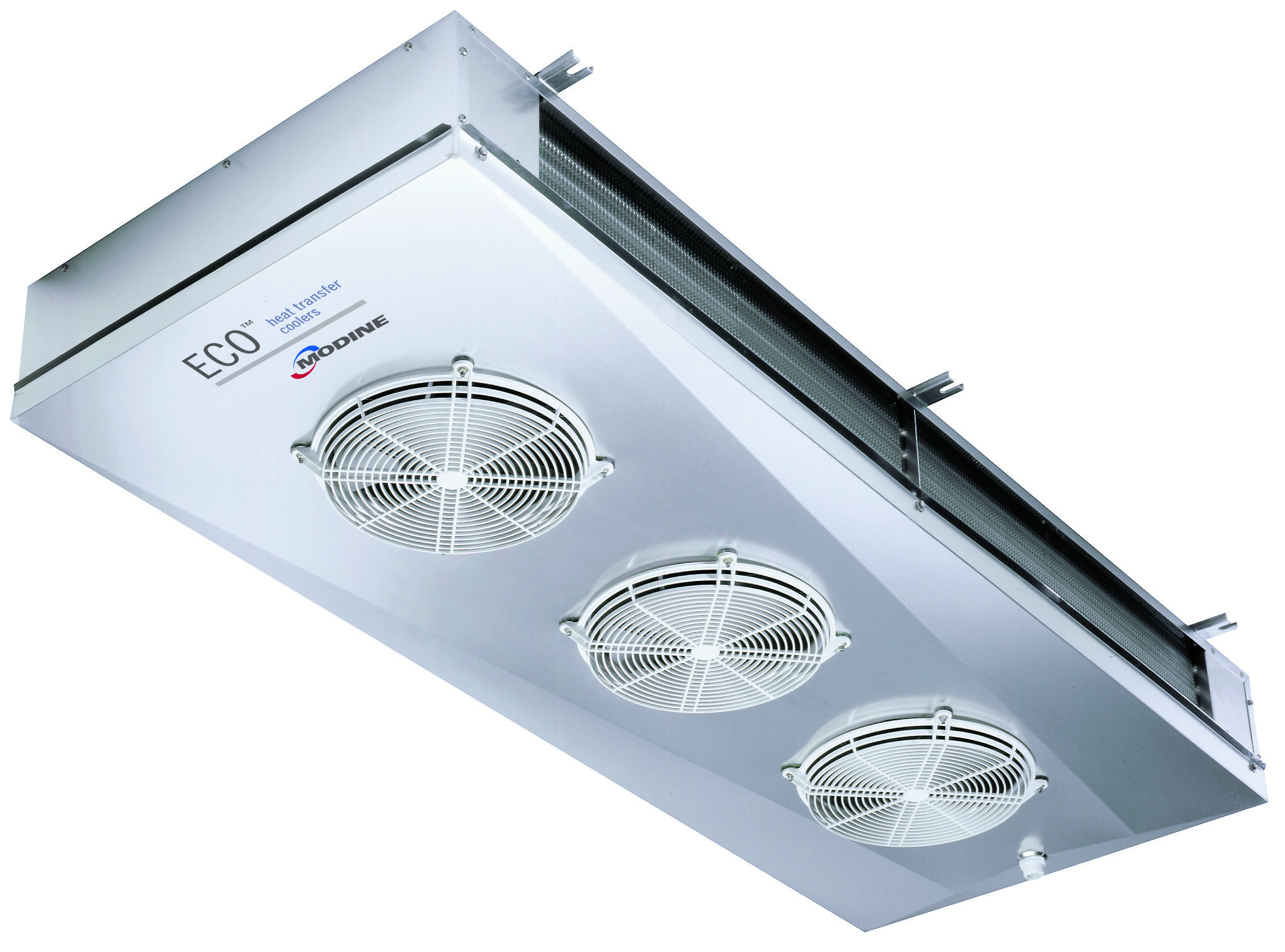

The dual discharge GDE range has been specifically designed for cold rooms with limited height for the preservation of fresh or frozen products and in food preparation and handling.

EMEA: Range consists of 48 customizable models
APAC: Range consists of 30 customizable models

According to the room temperature, the range is divided as follows:

  • GDE 3 for higher temperatures (≥ 5 °C) with 3 mm fin spacing, designed for work rooms with no possibility of ice/frost formation on fins
  • GDE 4 for medium temperatures (≥ 1 °C) with 4 mm fin spacing
  • GDE 7 for lower temperatures (≥ –25 °C) with 7 mm fin spacing, electric defrost version (ED) is recommended

On request, the models can be equipped with non-standard: coils, defrosting, and fan motors.

Coil Features
The entire range is equipped with high efficiency coils made from special profile aluminium fins and smooth copper tube, optimized for brine pump circulation.
Casing
Casing Features Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film
Fan Motors
The standard AC fan motors employed have the following features:
  • Ø 315 mm
  • fan motor module: from 1 to 6
  • dual speed
  • external rotor
  • single phase dual speed 230V/1/50-60 Hz
  • built-in electric capacitor
  • fibreglass charged polyamide fan guards
    • *EMEA only
  • Ø 350 mm
  • fan motor module: from 1 to 5
  • external rotor
  • single-phase high speed (4 or 6 poles) 230V/1/50-60Hz
  • built-in electric capacitor
  • epoxy coated steel fan guard

The optional high efficiency EC fan motors have the following features:
  • Ø 315 mm
  • fan motor module: the same as AC fan motors
  • external rotor
  • single phase dual speed 230V/1/50-60 Hz
  • fibreglass charged polyamide fan guards
    • *EMEA only
  • Ø 350 mm
  • fan motor module: the same as AC fan motors
  • external rotor
  • single phase 230V/1/50-60 Hz
  • fibreglass charged polyamide fan guards
  • speed regulation with 0-10V signal
    • *EMEA only
Defrost
The electric defrost (ED) versions are equipped with stainless steel heaters with vulcanised terminals preset for 400V/3/50-60Hz connections
Wiring
The versions with standard electric defrost (ED) are equipped with stainless steel heaters with vulcanised terminals preset for 400V/3/50-60 Hz connection The electric parts and casing are connected to a earth terminal The wiring of the motors and heaters is carried out in separate IP 54 protection grade junction boxes
Certifications
  • CE
  • PED
  • EAC
  • TÜV SÜD (Please see cerfified model list on the catalogue)
