Applications
- Commercial refrigeration cold rooms
- Low ceiling commercial refrigeration cold rooms
- Food processing rooms (fresh and sensitive products, sea food, meat)
Capacity Range
From 1,4 to 34,7 kW

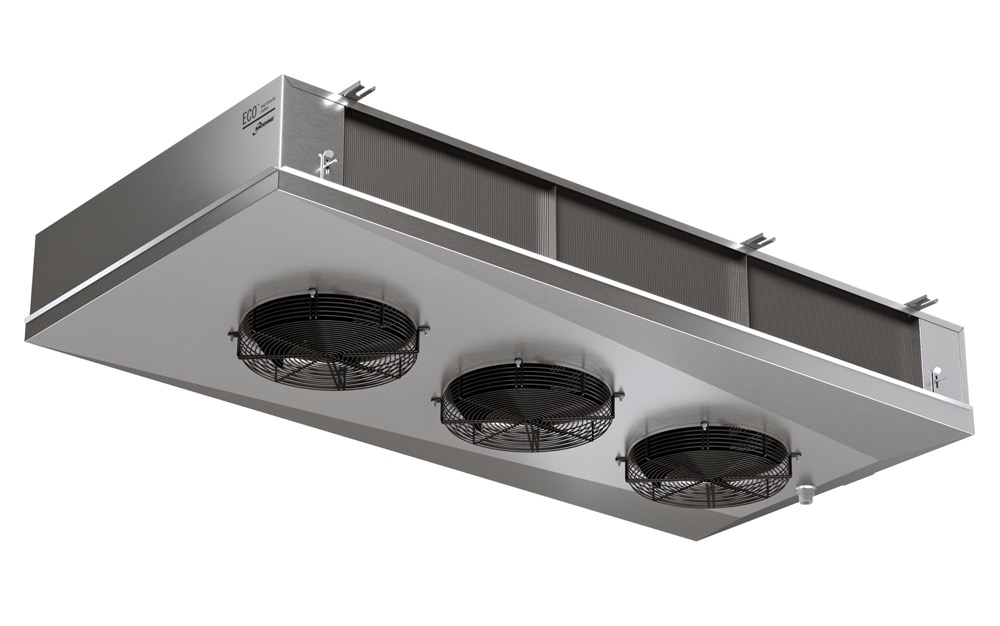

CGD Specifications
Overview
Range consists of 48 customizable models.
According to the room temperature, the range is divided as follows:
-
- CGD 3 for high temperatures (≥ 5 °C) with 3 mm fin spacing, designed for work rooms with no possibility of ice/frost formation on fins
- CGD 4 for medium temperatures (≥ +1 °C) with 4 mm fin spacing
- CGD 7 for lower temperatures (≥ –25 °C) with 7 mm fin spacing, electric defrost version (ED) is recommended
On request, the models can be equipped with non-standard: coils, defrosting, and fan motors.
Coil Features
- The CGD range is equipped with highly efficient coils made from aluminum fins and special copper tubes
- Maximum allowable pressure: 80 bar
Casing
Casing Features
Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film
Fan Motors
The standard AC fan motors employed have the following features:
- Ø 315 mm:
- fan motor module: from 1 to 6
- external rotor
- single phase dual speed 230V/1/50-60 Hz
- dual speed
- built-in electric capacitor
- fibreglass charged polyamide fan guards
- Ø 350 mm:
- fan motor module: from 1 to 5
- external rotor
- single-phase high speed (4 or 6 poles) 230V/1/50-60Hz
- built-in electric capacitor
- epoxy coated steel fan guard
- Ø 315 mm:
- fan motor module: the same as AC fan motors
- external rotor
- single phase dual speed 230V/1/50-60 Hz
- fibreglass charged polyamide fan guards
- Ø 350 mm:
- fan motor module: the same as AC fan motors
- external rotor
- single phase 230V/1/50-60 Hz
- fibreglass charged polyamide fan guards
- speed regulation with 0-10V signal
Defrost
The electric defrost (ED) versions are equipped with stainless steel heaters with vulcanised terminals preset for 400V/3/50-60Hz connections
Wiring
- The versions with standard electric defrost (ED) are equipped with stainless steel heaters with vulcanised terminals preset for 400V/3/50-60 Hz connection
- The electric parts and casing are connected to a earth terminal
- The wiring of the motors and heaters is carried out in separate IP 54 protection grade junction boxes
Certifications
- CE
- PED
- EAC
Published Data
Nominal capacity assessed in practical operating ambient, i.e. in wet conditions, in direct expansion application
- CGD 3: CO2 refrigerant; air inlet temperature 10 °C; evaporating temperature 0 °C; TD 10 K
- CGD 4: CO2 CO2 refrigerant; air inlet temperature 4 °C; evaporating temperature –4 °C; TD 8 K
- CGD 7: CO2 refrigerant; air inlet temperature –18 °C; evaporating temperature –25 °C; TD 7 K
