PCV

PCV_resize

Applications

  • Air conditioning
  • Refrigeration systems

Capacity Range

Air cooled condensers: EMEA from 8,5 to 110,6 kW
Air cooled condensers: APAC Please contact us
CO2 gas coolers: Please contact us

PCV Specifications

Overview

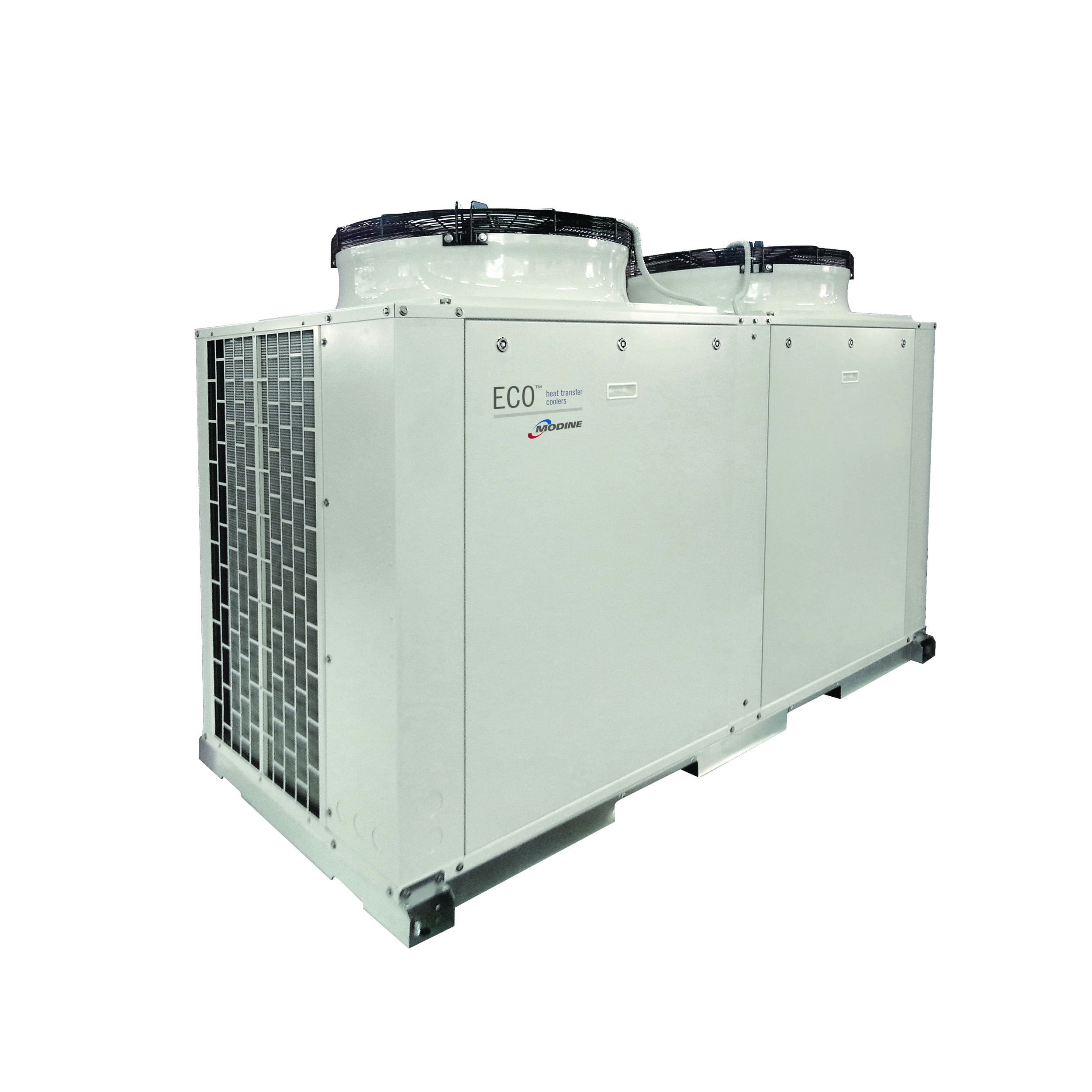

The PCV range with a compartment has been specifically designed to satisfy all possible high quality air conditioning and refrigeration applications.

Range consists of 60 customizable models.

The models of this range are equipped with high efficiency “L” shaped coils to increase its compactness.

Upon request, models can be equipped with non-standard coils, fan motors, and casework with special features.

Coil Features
  • The coils of this range are made of special “Air Intake” profile aluminum fins and inner grooved copper tubes, suitable for new generation refrigerants (smooth tubes for CO2 Gas Coolers). They are supplied charged with dry air at a pressure of 2 bars
  • The fin spacing is 2,1 mm for the entire range
Casing
Casing Features
  • Made of a pre-painted galvanised metal sheet, with a smooth finish covered by a plastic protection film
  • The models have a special compartment designed to accommodate the compressor (not supplied) with a reinforced base and support platform, hinged doors, removable panels and inner protected compartment for the positioning of possible electrical switchboards
Fan Motors
The standard AC fan motors employed have the following features:
  • Ø 450 mm
  • fan motor module: 1 or 2
  • EMEA
    • 230V/1/50-60 Hz single-phase
    • with 4 or 6 poles
    • external rotor type
    • built-in electric capacitor
    • epoxy coated steel fan guard
  • APAC please contact us
  • Ø 500 mm
  • fan motor module: 1 or 2
  • EMEA
    • 230V/1/50-60 Hz single-phase
    • with 4 or 6 poles
    • external rotor type
    • built-in electric capacitor
    • epoxy coated steel fan guard
  • APAC please contact us
  • Ø 630mm
  • fan motor module: 1 or 2
  • EMEA
    • 230V/1/50 Hz 6 poles single-phase or 400V/3/50 Hz 8 poles three-phase
    • external rotor type
    • built-in electric capacitor
    • epoxy coated steel fan guard
  • APAC please contact us
  • Ø 710mm
  • fan motor module: 1 or 2
  • EMEA
    • 230V/1/50 Hz 6 poles single-phase or 400V/3/50 Hz 4 poles three-phase
    • external rotor type
    • built-in electric capacitor
    • epoxy coated steel fan guard
  • APAC please contact us

The optional high efficiency EC fan motors have the following features:
  • Ø 450, 500, 630 or 710 mm
  • EMEA
    • fan motor module: the same as AC fan motors
    • speed regulator with 0-10V signal
    • fan motor module: the same as AC fan motors
    • operating temperature: –25 °C ÷ +60 °C
  • APAC please contact us
Wiring
The fan motors and the casework are predisposed for grounding
Certifications
  • CE
  • PED
Published Data
  • Air cooled condensers
    • EN 327 reference standard
    • EMEA The stated capacity is assessed based on ambient temperature 25 °C and condensing temperature 40 °C with R448A (mid-point)
    • APAC The stated capacity is assessed based on ambient temperature 25 °C; and condensing temperature 40 °C with R404A
  • CO2 gas coolers
    • For selections, special applications and further information please contact us
