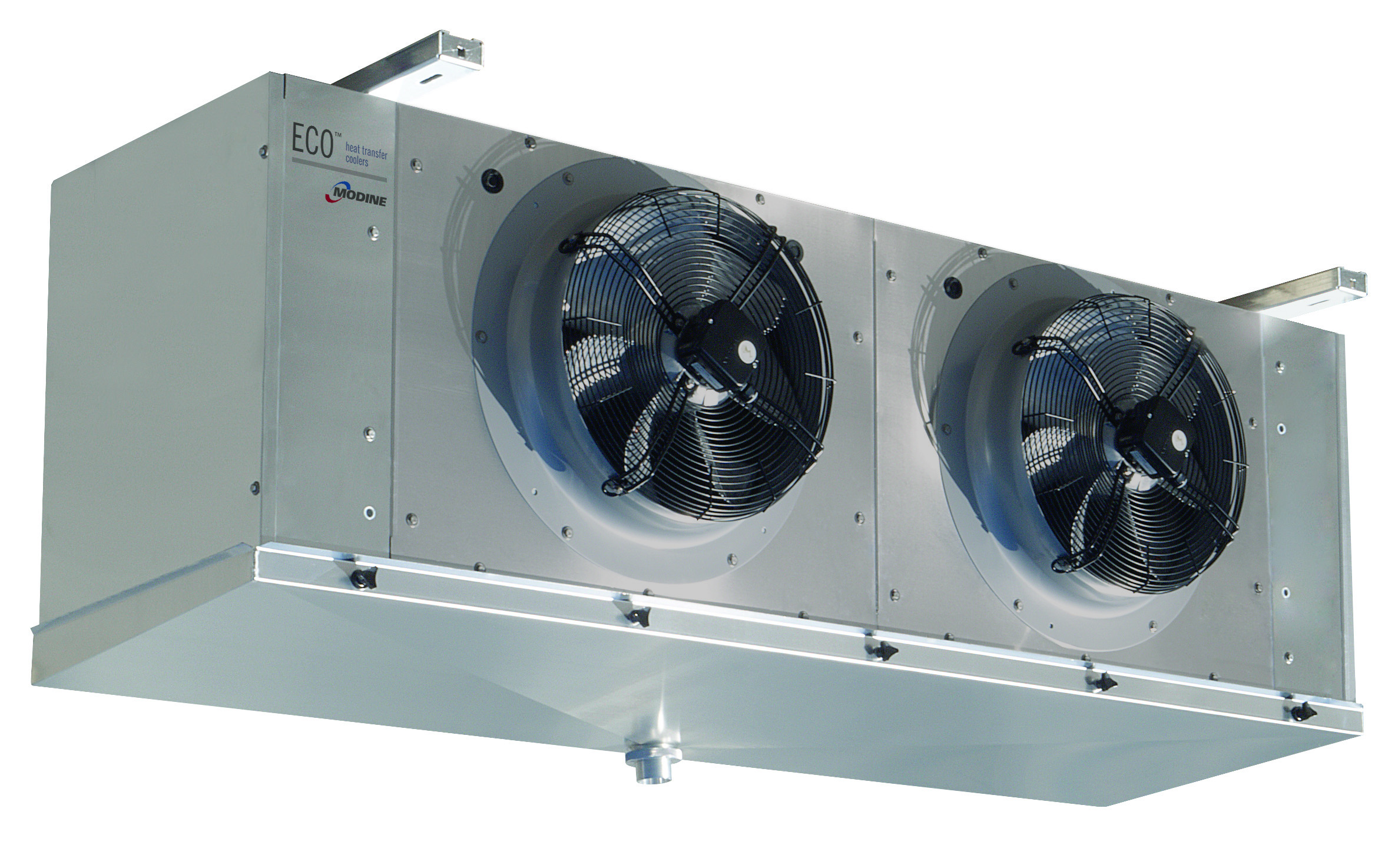

ICE-W

ICE63

Applications

  • Large refrigeration cold rooms, refrigerated warehouses

Capacity Range

Unit coolers: EMEA from 7 to 150 kW
Unit coolers: APAC from 6,84 to 171 kW

Brine coolers: EMEA please use Scelte selection software
Brine coolers: APAC please contact us

ICE-W Specifications

Overview

Range consists of 104 customizable models.

In accordance to the room temperature, the range is divided as follows:

  • ICE 06 for higher and medium temperatures (≥ –15°C) with 6 mm fin spacing
  • ICE 08 – 10 – 12 for lower temperatures (≥ –35°C) with 8, 10 and 12 mm fin spacing (electric defrost recommended)

On request, the models can be equipped with non-standard coils, defrosting, and fan motors.

Coil Features
The entire range is equipped with high efficiency coils made from special profile aluminium fins and smooth copper tube, optimized for brine pump circulation.
Casing
Casing Features Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film
Fan Motors
The standard AC fan motors employed have the following features:
  • Ø 450 mm:
  • fan motor module: from 1 to 4
  • external rotor
  • three-phase 400V/3/50-60 Hz
  • dual speed
  • epoxy coated steel fan guard
  • Ø 560 mm:
  • fan motor module: from 2 to 4
  • external rotor
  • three-phase 400V/3/50 Hz
  • dual speed
  • epoxy coated steel fan guard
  • Ø 630 mm,
  • fan motor module: from 2 to 5
  • external rotor
  • three-phase 400V/3/50-60 Hz
  • dual speed
  • epoxy coated steel fan guard

The optional high efficiency EC fan motors have the following features:
  • Ø 450 mm:
  • fan motor module: the same as AC fan motors
  • external rotor
  • single-phase power supply 230V/1/50-60 Hz
  • epoxy coated steel fan guard
  • Ø 560 mm:
  • fan motor module: the same as AC fan motors
  • external rotor
  • three-phase 400V/3/50 Hz
  • epoxy coated steel fan guard
  • Ø 630 mm,
  • fan motor module: the same as AC fan motors
  • external rotor
  • three-phase 400V/3/50 Hz
  • epoxy coated steel fan guard
Defrost
The versions with standard electric defrost (ED) are equipped with stainless steel heaters with vulcanised terminal preset for 400V/3/50-60 Hz connection
Wiring
The electric parts and casework are predisposed for grounding, the wiring of the heaters is carried out in separate IP 54 protection grade junction boxes
Certifications
  • CE
  • PED
  • SASO
  • TÜV SÜD (Please see cerfified model list on the catalogue)
