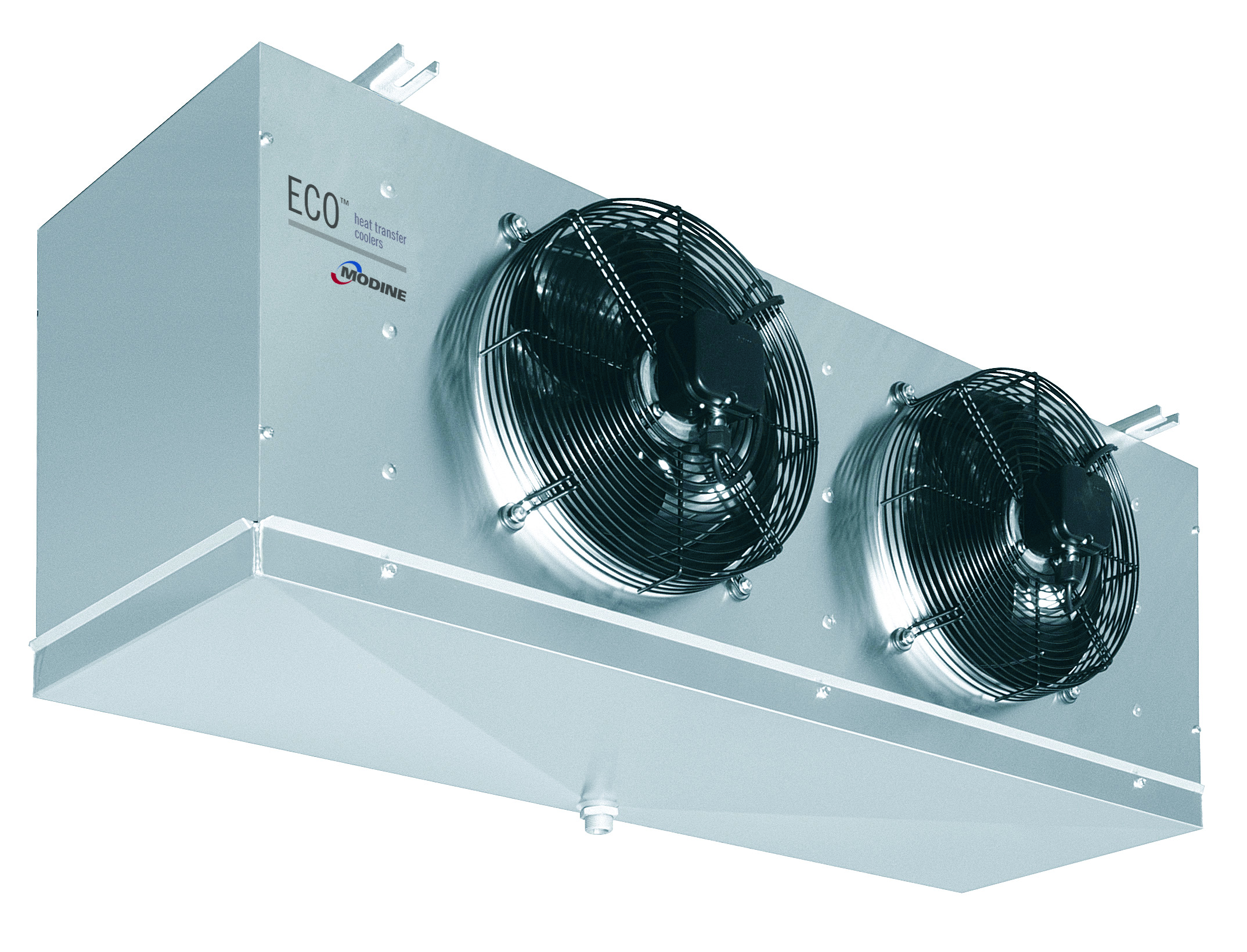

GCE-W

OLYMPUS DIGITAL CAMERA

Applications

  • Small cold rooms
  • Commercial refrigeration cold rooms

Capacity Range

Unit coolers: EMEA from 0,99 to 22,5 kW
Unit coolers: APAC from 2,48 to 24,28 kW

Brine coolers: EMEA please use Scelte selection software
Brine coolers: APAC please contact us

GCE-W Specifications

Overview

EMEA: Range consists of 105 customizable models
APAC:  Range consists of 39 customizable models

According to the room temperature, the range is divided as follows:

  • GCE G4 E4 F4 A4 for higher temperatures (>= +1 °C) with 4 mm fin spacing
  • GCE G6 E6 F6 A6 for medium temperatures (≥ –15 °C) with 6 mm fin spacing, electric defrost version (ED) is recommended
  • GCE G8 E8 F8 A8 for low temperatures (≥ –35 °C) with 8 mm fin spacing, equipped with electric defrost (ED)

On request, the models can be equipped with non-standard: coils, defrosting, and fan motors.

Coil Features
The entire range is equipped with high efficiency coils made from special profile aluminium fins and smooth copper tube, optimized for brine pump circulation.
Casing
Casing Features Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film
Fan Motors
The standard AC fan motors employed have the following features:
  • Ø 250 mm
  • fan motor module: from 1 to 4
  • shaded pole single-phase 230V/1/50-60Hz
  • fibreglass charged polyamide fan guard
    • *EMEA only
  • Ø 315 mm
  • fan motor module: from 1 to 4
  • external rotor single-phase 230V/1/50-60Hz
  • built-in electric capacitor
  • epoxy coated steel fan guard
  • Ø 350 mm
  • fan motor module: from 1 to 5
  • external rotor single-phase 230V/1/50-60Hz
  • built-in electric capacitor
  • epoxy coated steel fan guard

The optional high efficiency EC fan motors have the following features:
  • Ø 250 mm
  • fan motor module: the same as AC fan motors
  • single-phase 230V/1/50-60Hz
  • fibreglass charged polyamide fan guard
    • *EMEA only
  • Ø 315 mm
  • fan motor module: the same as AC fan motors
  • external rotor single-phase 230V/1/50-60Hz
  • epoxy coated steel fan guard
  • Ø 350 mm
  • an motor module: the same as AC fan motors
  • external rotor single-phase 230V/1/50-60Hz
  • epoxy coated steel fan guard
Defrost
The electric defrost (ED) versions are equipped with stainless steel heaters with vulcanised terminals preset for 400V/3/50-60Hz connections
Wiring
The electric parts and casing are connected to an earth terminal The wiring of motors and heaters is carried out in separate IP 54 protection grade junction boxes
Certifications
  • CE
  • PED
  • SASO
  • TÜV SÜD (Please see cerfified model list on the catalogue)
