CDC

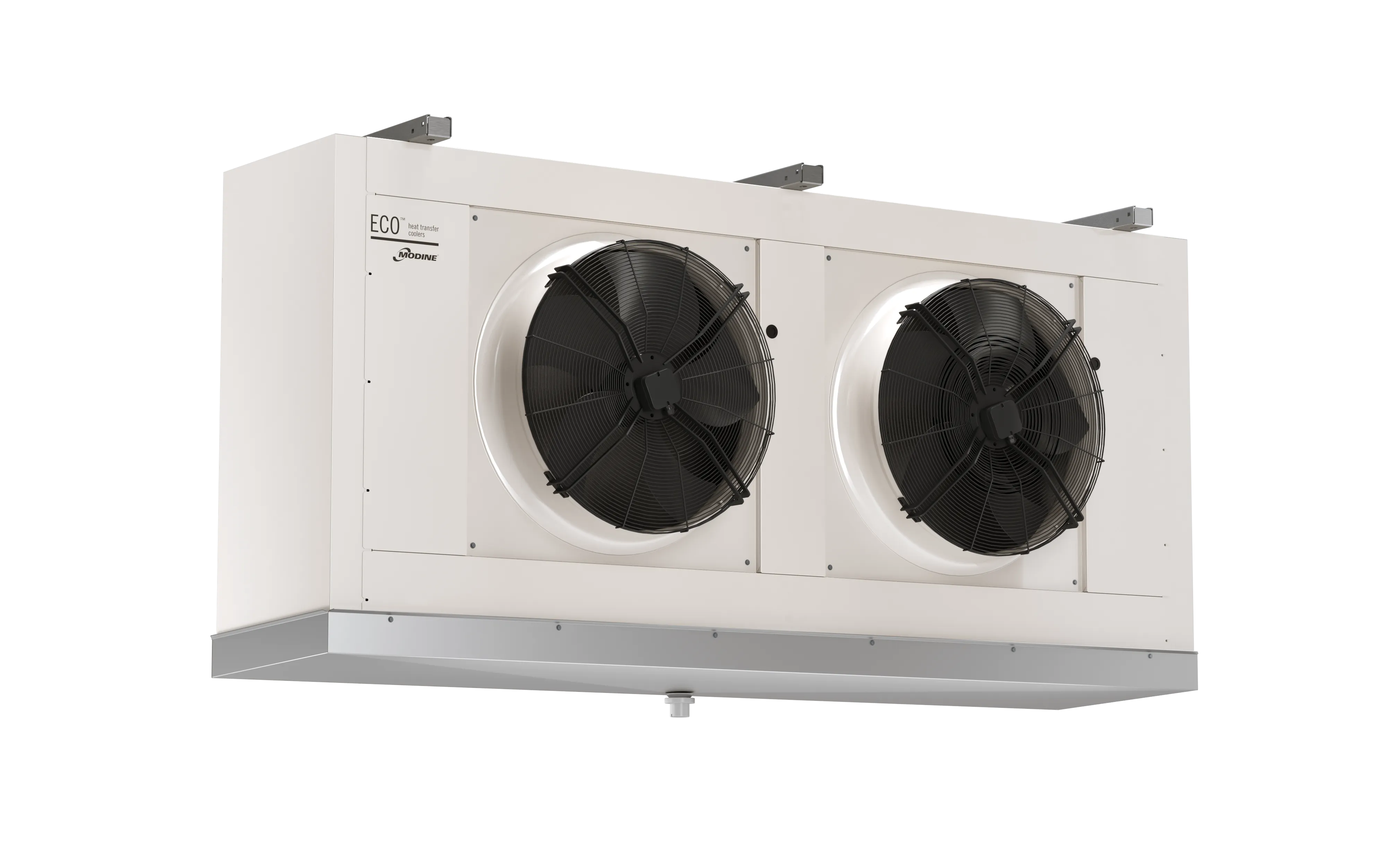

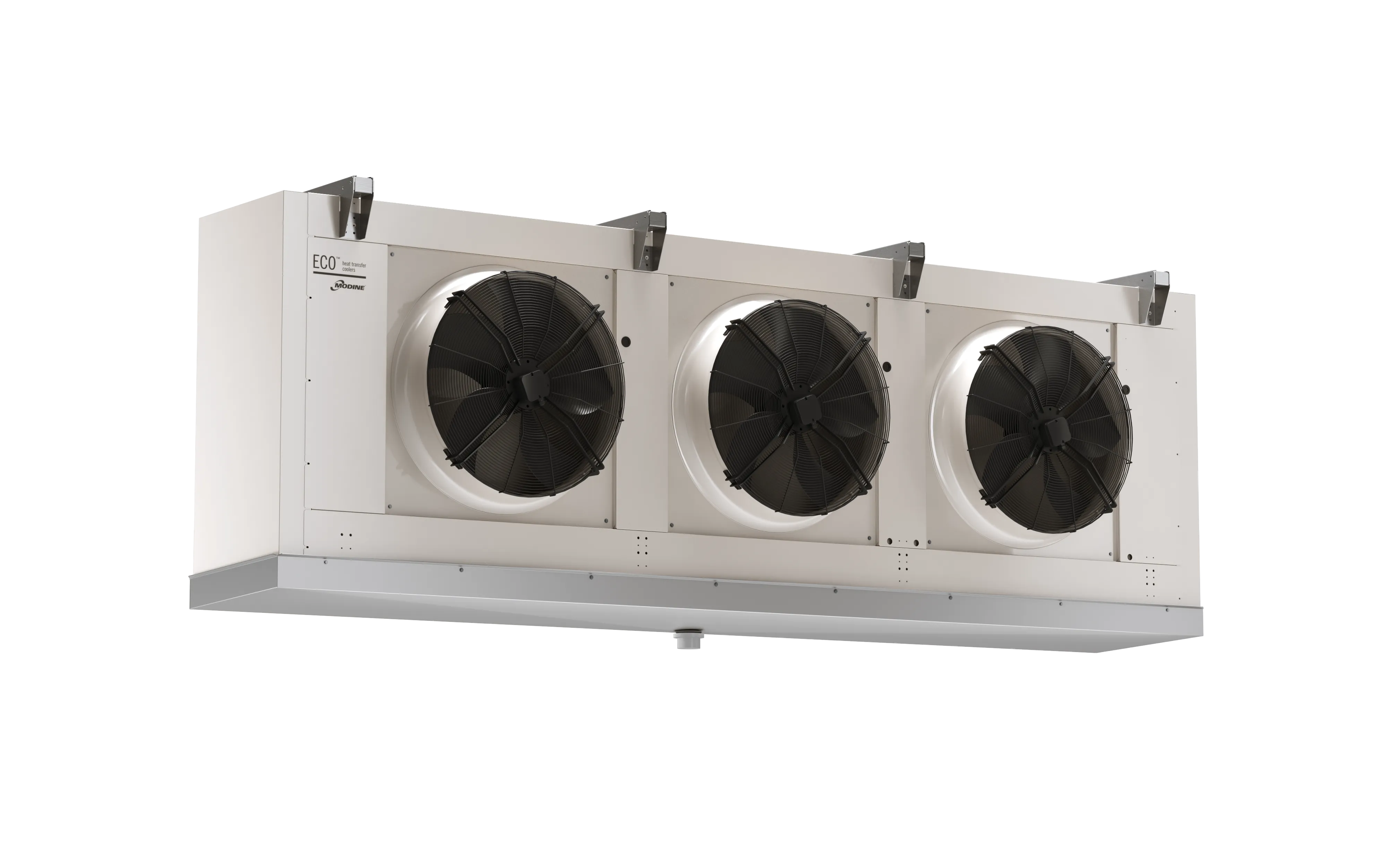

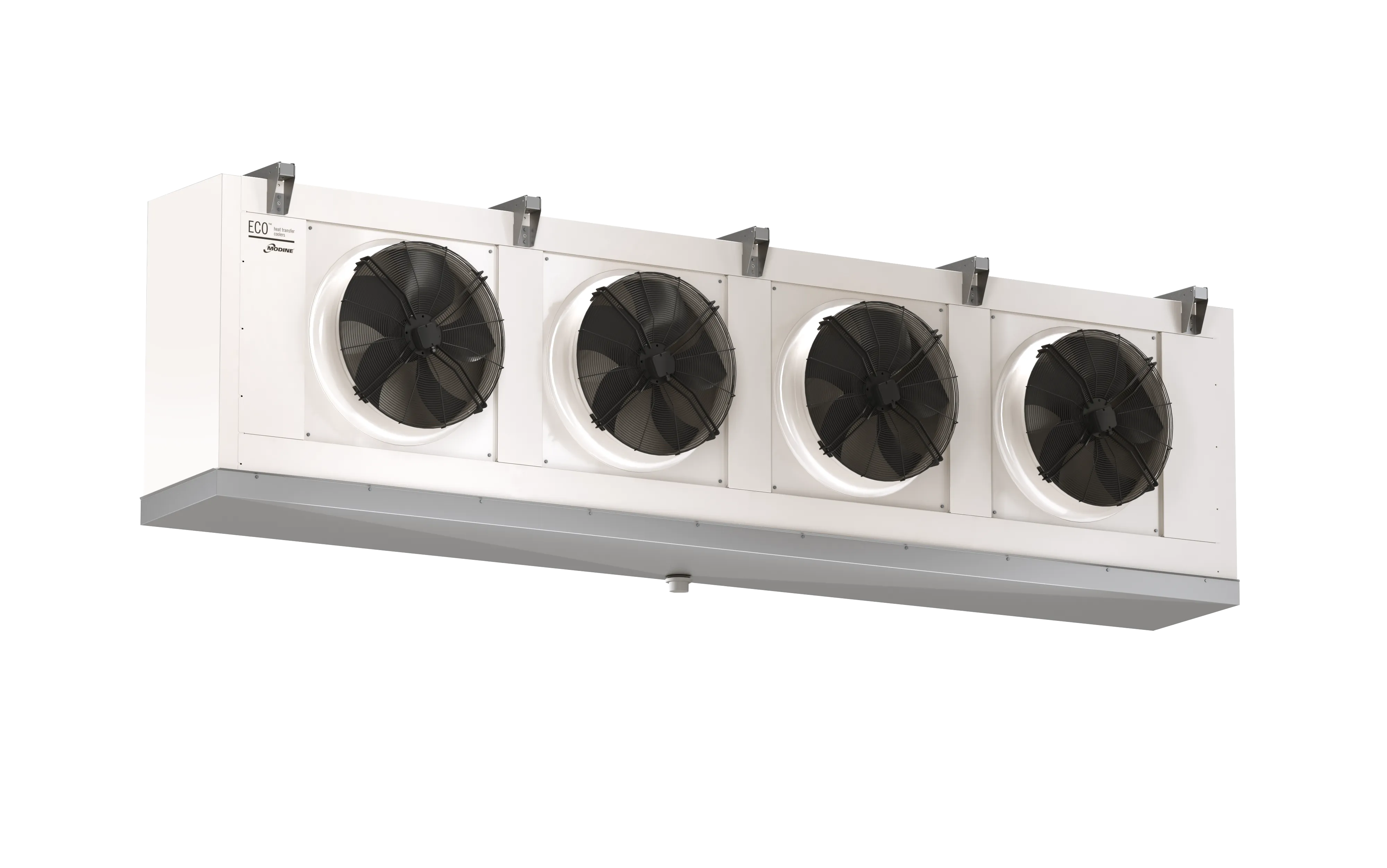

New models Ø 800 mm
This product is not available in region
overview
Range consist of 69 customizable models.
According to the room temperature the range is divided as follows:
- CDC E4 - A4 - B4 for higher temperatures (≥ +2 °C), with 4 mm fin spacing;
- CDC E6 - A6 - B6 - D6 for medium temperatures (≥ –15 °C), with 6 mm fin spacing, electric defrost version (ED) is recommended;
- CDC E8 - A8 - B8 - D8 for lower temperatures (≥ –35 °C), with 8,5 mm fin spacing, equipped with electric defrost (ED).
On request the models can be equipped with non-standard coils, defrosting and fan motors.
Range consist of 69 customizable models.
According to the room temperature the range is divided as follows:
- CDC E4 - A4 - B4 for higher temperatures (≥ +2 °C), with 4 mm fin spacing;
- CDC E6 - A6 - B6 - D6 for medium temperatures (≥ –15 °C), with 6 mm fin spacing, electric defrost version (ED) is recommended;
- CDC E8 - A8 - B8 - D8 for lower temperatures (≥ –35 °C), with 8,5 mm fin spacing, equipped with electric defrost (ED).
On request the models can be equipped with non-standard coils, defrosting and fan motors.
Range consist of 69 customizable models.
According to the room temperature the range is divided as follows:
- CDC E4 - A4 - B4 for higher temperatures (≥ +2 °C), with 4 mm fin spacing;
- CDC E6 - A6 - B6 - D6 for medium temperatures (≥ –15 °C), with 6 mm fin spacing, electric defrost version (ED) is recommended;
- CDC E8 - A8 - B8 - D8 for lower temperatures (≥ –35 °C), with 8,5 mm fin spacing, equipped with electric defrost (ED).
On request the models can be equipped with non-standard coils, defrosting and fan motors.
applications
- Large refrigeration cold rooms
- Refrigerated warehouses
- Large refrigeration cold rooms
- Refrigerated warehouses
- Large refrigeration cold rooms
- Refrigerated warehouses
capacity range
From 8,2 to 177 kW
From 8,2 to 177 kW
From 8,2 to 177 kW
Technical Information
Coil features
- This new range is equipped with highly efficient coils made from aluminium fins and special copper tubes.
- This new range is equipped with highly efficient coils made from aluminium fins and special copper tubes.
- This new range is equipped with highly efficient coils made from aluminium fins and special copper tubes.
Casing
- Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film.
Fan motors
The standard AC fan motors employed have the following features:
Ø 500 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Ø 630 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50-60 Hz
- epoxy coated steel fan guard
Ø 800 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50-60 Hz
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 500 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Ø 630 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Ø 800 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50-60 Hz
- epoxy coated steel fan guard
The standard AC fan motors employed have the following features:
Ø 500 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Ø 630 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50-60 Hz
- epoxy coated steel fan guard
Ø 800 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50-60 Hz
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 500 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Ø 630 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Ø 800 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50-60 Hz
- epoxy coated steel fan guard
The standard AC fan motors employed have the following features:
Ø 500 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Ø 630 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50-60 Hz
- epoxy coated steel fan guard
Ø 800 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50-60 Hz
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 500 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Ø 630 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Ø 800 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50-60 Hz
- epoxy coated steel fan guard
Defrost
Wiring
- The electric parts and casework are connected to a ground terminal.
- The wiring of the heaters is carried out in IP 54 protection grade junction box.
Certifications
- CE
- PED
Published data
- Nominal capacity assessed in practical operating ambient, i.e. in wet conditions, in direct expansion application.
- CDC E4 - A4 - B4: CO2 refrigerant; air inlet temperature 4 °C; evaporating temperature –4 °C; TD 8 K.
- CDC E6 - A6 - B6 - D6: CO2 refrigerant; air inlet temperature 0 °C; evaporating temperature –8 °C; TD 8 K.
- CDC E8 - A8 - B8 - D8: CO2 refrigerant; air inlet temperature –25 °C vaporating temperature –33 °C; TD 8 K.
- Nominal capacity assessed in practical operating ambient, i.e. in wet conditions, in direct expansion application.
- CDC E4 - A4 - B4: CO2 refrigerant; air inlet temperature 4 °C; evaporating temperature –4 °C; TD 8 K.
- CDC E6 - A6 - B6 - D6: CO2 refrigerant; air inlet temperature 0 °C; evaporating temperature –8 °C; TD 8 K.
- CDC E8 - A8 - B8 - D8: CO2 refrigerant; air inlet temperature –25 °C vaporating temperature –33 °C; TD 8 K.
- Nominal capacity assessed in practical operating ambient, i.e. in wet conditions, in direct expansion application.
- CDC E4 - A4 - B4: CO2 refrigerant; air inlet temperature 4 °C; evaporating temperature –4 °C; TD 8 K.
- CDC E6 - A6 - B6 - D6: CO2 refrigerant; air inlet temperature 0 °C; evaporating temperature –8 °C; TD 8 K.
- CDC E8 - A8 - B8 - D8: CO2 refrigerant; air inlet temperature –25 °C vaporating temperature –33 °C; TD 8 K.
