Multi-Refrigerant Unit Coolers
F-gas regulations are accelerating the phase-down of high GWP refrigerants.
A2L gases offer a low GWP alternative but require careful handling due to their mild flammability.
Our MULTI-REFRIGERANT unit coolers ensure safe, flexible use with both traditional A1 HFCs and new A2L refrigerants. This new range uses reliable standard components and a dedicated electrical defrost system designed to operate safely below A2L autoignition temperatures.
Cabinets and small cold rooms
AP
A2LWall unit coolers for cabinets and small cold rooms
Fan motors diameter: 230 mm
Capacity: from 0,45 to 2,56 kW
Fan motors diameter: 230 mm
Capacity: from 0,45 to 2,56 kW
Applications
- Reach-in cabinets
- Display cases
- Small cold rooms
Applications
- Reach-in cabinets
- Display cases
- Small cold rooms
Commercial cold rooms / Working rooms
AGC
A2LCubic units for commercial cold rooms
Fan motors diameter: 250, 315, 350 mm
Capacity: from 0,85 to 24,3 kW
Fan motors diameter: 250, 315, 350 mm
Capacity: from 0,85 to 24,3 kW
Applications
- Small cold rooms
- Commercial cold rooms
Applications
- Small cold rooms
- Commercial cold rooms

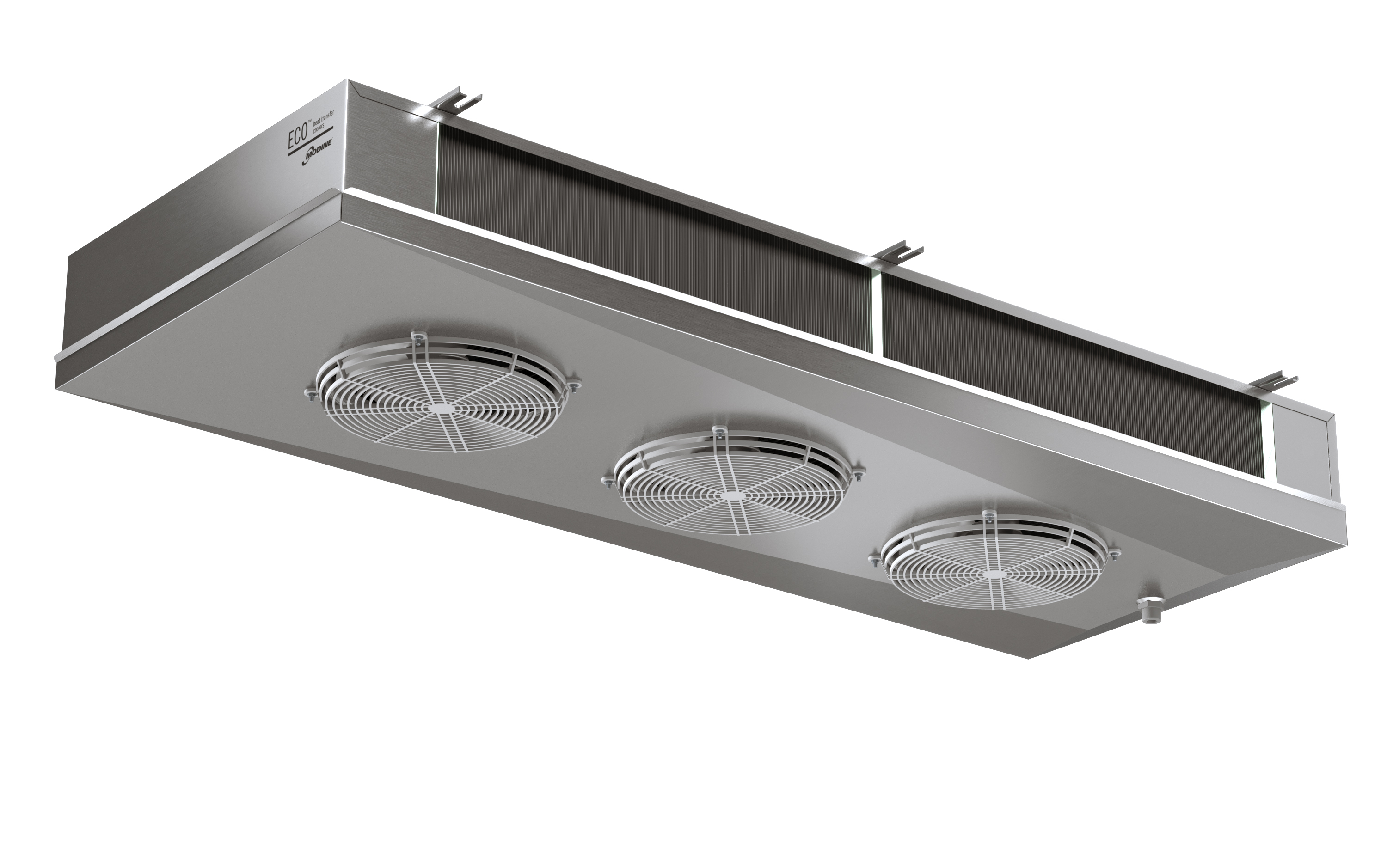

AGD
A2LDual discharge unit coolers for work and commercial cold rooms
Fan motors diameter: 230, 315, 350 mm
Capacity: from 0,48 to 26,3 kW
Fan motors diameter: 230, 315, 350 mm
Capacity: from 0,48 to 26,3 kW
Applications
- Reach-in cabinets
- Small cold rooms
- Walk-in cabinets
Applications
- Reach-in cabinets
- Small cold rooms
- Walk-in cabinets

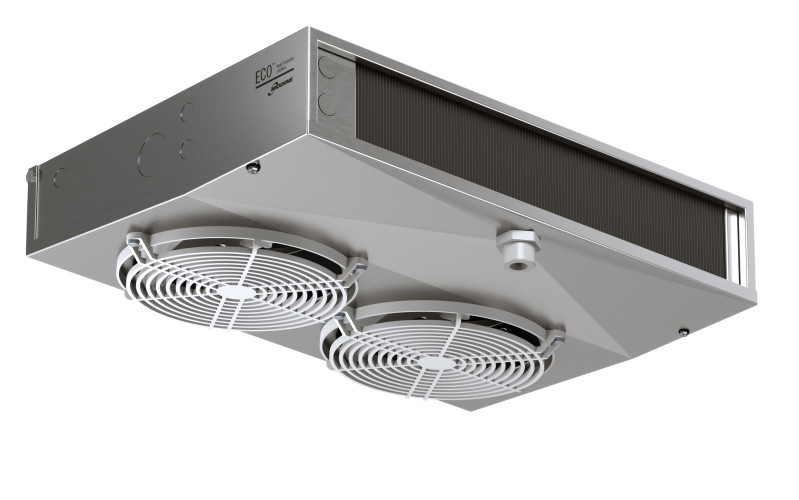

AGS
A2LSlanted unit coolers for cabinets and commercial cold rooms
Fan motors diameter: 200, 250, 315 mm
Capacity: from 0,3 to 7,6 kW
Fan motors diameter: 200, 250, 315 mm
Capacity: from 0,3 to 7,6 kW
Applications
- Reach-in cabinets
- Display cases
- Small cold rooms
Applications
- Reach-in cabinets
- Display cases
- Small cold rooms

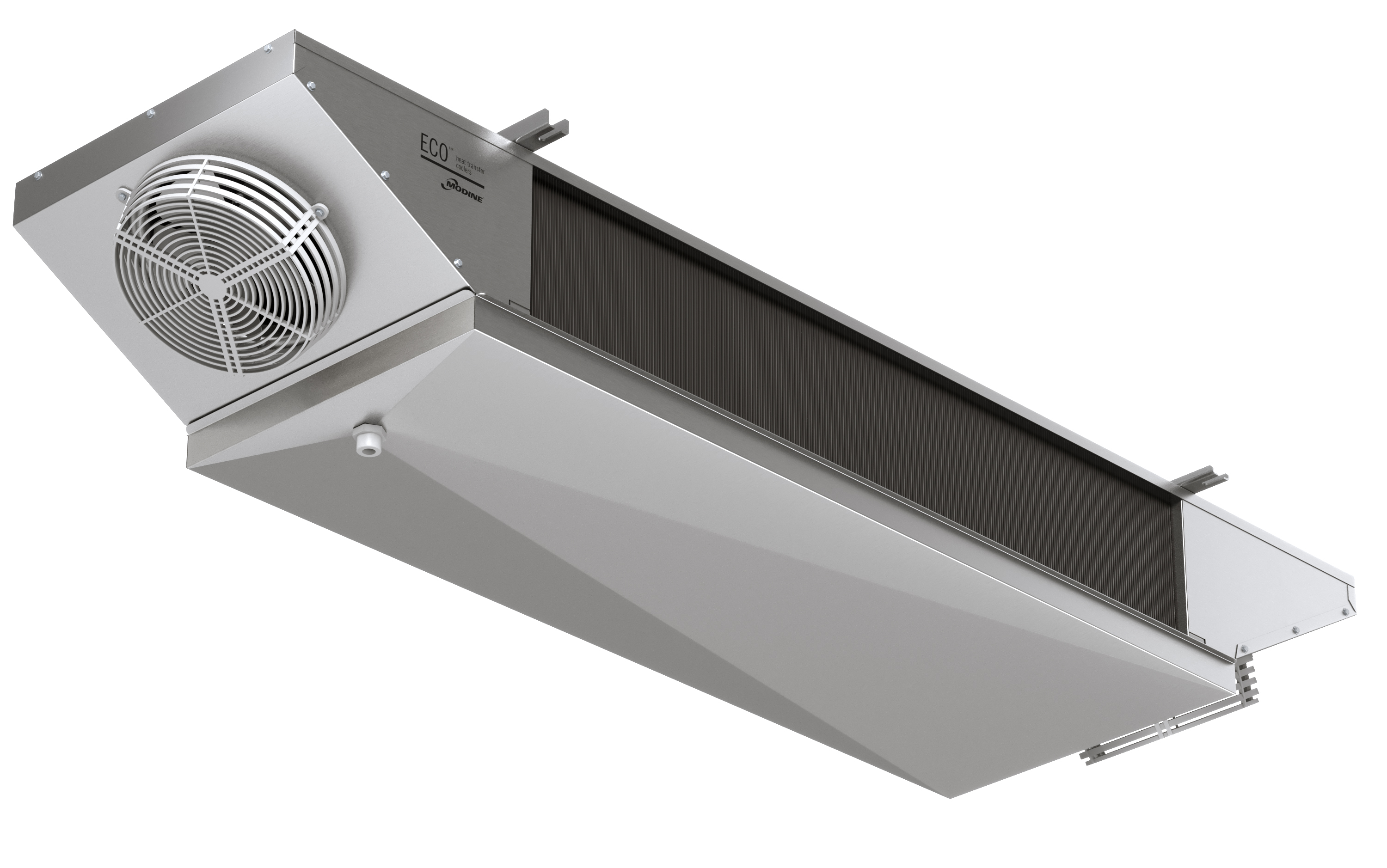

AGL
A2LDual discharge unit coolers for work and cold rooms in which reduced air circulation is required
Fan motors diameter: 250, 315 mm
Capacity: from 2,49 to 7,4 kW
Fan motors diameter: 250, 315 mm
Capacity: from 2,49 to 7,4 kW
Applications
- Food processing rooms (fresh and perishable goods, seafood, meat)
Applications
- Food processing rooms (fresh and perishable goods, seafood, meat)
Naturally Ready
for the FUTURE
Our product ranges meet F-Gas Regulations and have been developed for present and future refrigerants.
Modine products have been developed to offer efficient performance and reduced energy consumption, in compliance with the latest F-Gas regulations. Moreover, thanks to a more compact inner volume, our products use less refrigerant charge than in the past.
