overview

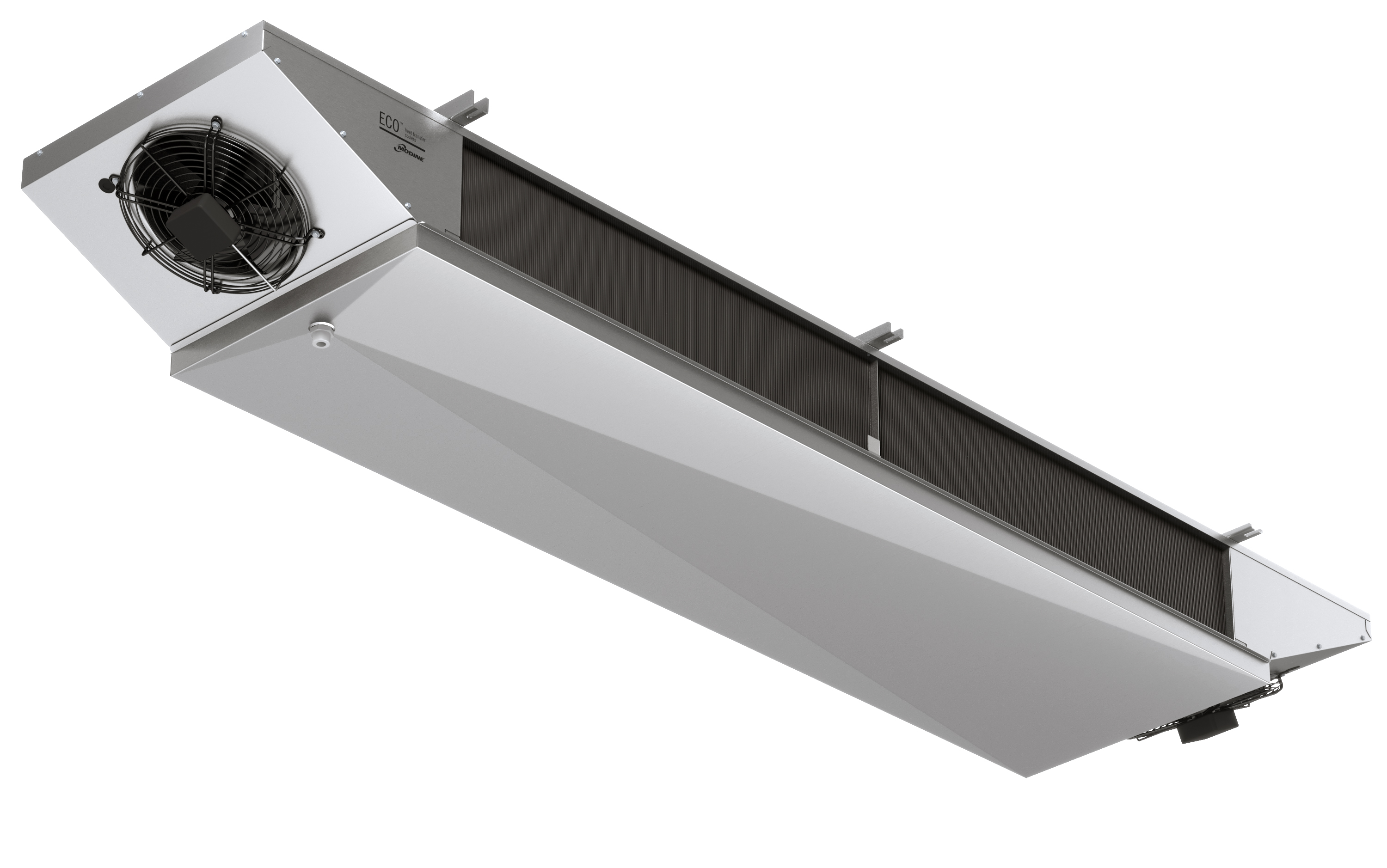

Our AGL unit coolers are specifically designed for installations that use latest generation of A2L low GWP refrigerants. This range is particularly suitable for applications in which reduced air circulation is required, i.e. processing and preparation areas, climate control applications, treatment areas for fresh produce and other foodstuffs.
This range consists of 5 customizable models.
On request the models can be equipped with non-standard coils, defrosting and fan motors.
Our AGL unit coolers are specifically designed for installations that use latest generation of A2L low GWP refrigerants. This range is particularly suitable for applications in which reduced air circulation is required, i.e. processing and preparation areas, climate control applications, treatment areas for fresh produce and other foodstuffs.
This range consists of 5 customizable models.
On request the models can be equipped with non-standard coils, defrosting and fan motors.
applications
- Food processing rooms (fresh and perishable goods, seafood, meat)
- Food processing rooms (fresh and perishable goods, seafood, meat)
capacity range
from 2,49 to 7,4 kW
Accepted A2L refrigerants:
- R455A
- R454C
- R1234yf
- R1234ze
from 2,49 to 7,4 kW
Accepted A2L refrigerants:
- R455A
- R454C
- R1234yf
- R1234ze
Technical Information
Coil features
- The entire range is equipped with high efficiency coils suitable for A2L refrigerants made from special profile aluminium fins and inner grooved copper tube.
- For the entire range 5 mm fin spacing, for room temperature ≥ –5 °C.
- The entire range is equipped with high efficiency coils suitable for A2L refrigerants made from special profile aluminium fins and inner grooved copper tube.
- For the entire range 5 mm fin spacing, for room temperature ≥ –5 °C.
Casing
- Casing Features Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film.
Fan motors
The standard AC fan motors employed have the following features:
Ø 250 mm
- shaded pole
- single-phase 230V/1/50-60Hz
- fibre-glass charged polyamide fan guards
Ø 315 mm
- external rotor
- single-phase 230V/1/50-60Hz
- built-in electric capacitor
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 250 mm
- single-phase 230V/1/50-60Hz
- fibre-glass charged polyamide fan guards
Ø 300 mm
- external rotor
- single-phase 230V/1/50-60Hz
- epoxy coated steel fan guard
The standard AC fan motors employed have the following features:
Ø 250 mm
- shaded pole
- single-phase 230V/1/50-60Hz
- fibre-glass charged polyamide fan guards
Ø 315 mm
- external rotor
- single-phase 230V/1/50-60Hz
- built-in electric capacitor
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 250 mm
- single-phase 230V/1/50-60Hz
- fibre-glass charged polyamide fan guards
Ø 300 mm
- external rotor
- single-phase 230V/1/50-60Hz
- epoxy coated steel fan guard
Defrost
Wiring
- The electric parts and casework are connected to a grounding terminal. The wiring of motors and heaters is carried out in separate IP 54 protection grade junction boxes.
Certifications
- CE
- PED
Published data
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- R1234yf and R454C refrigerants.
- air inlet temperature 0 °C.
- evaporating temperature –8 °C.
- TD 8 K.
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- R1234yf and R454C refrigerants.
- air inlet temperature 0 °C.
- evaporating temperature –8 °C.
- TD 8 K.
