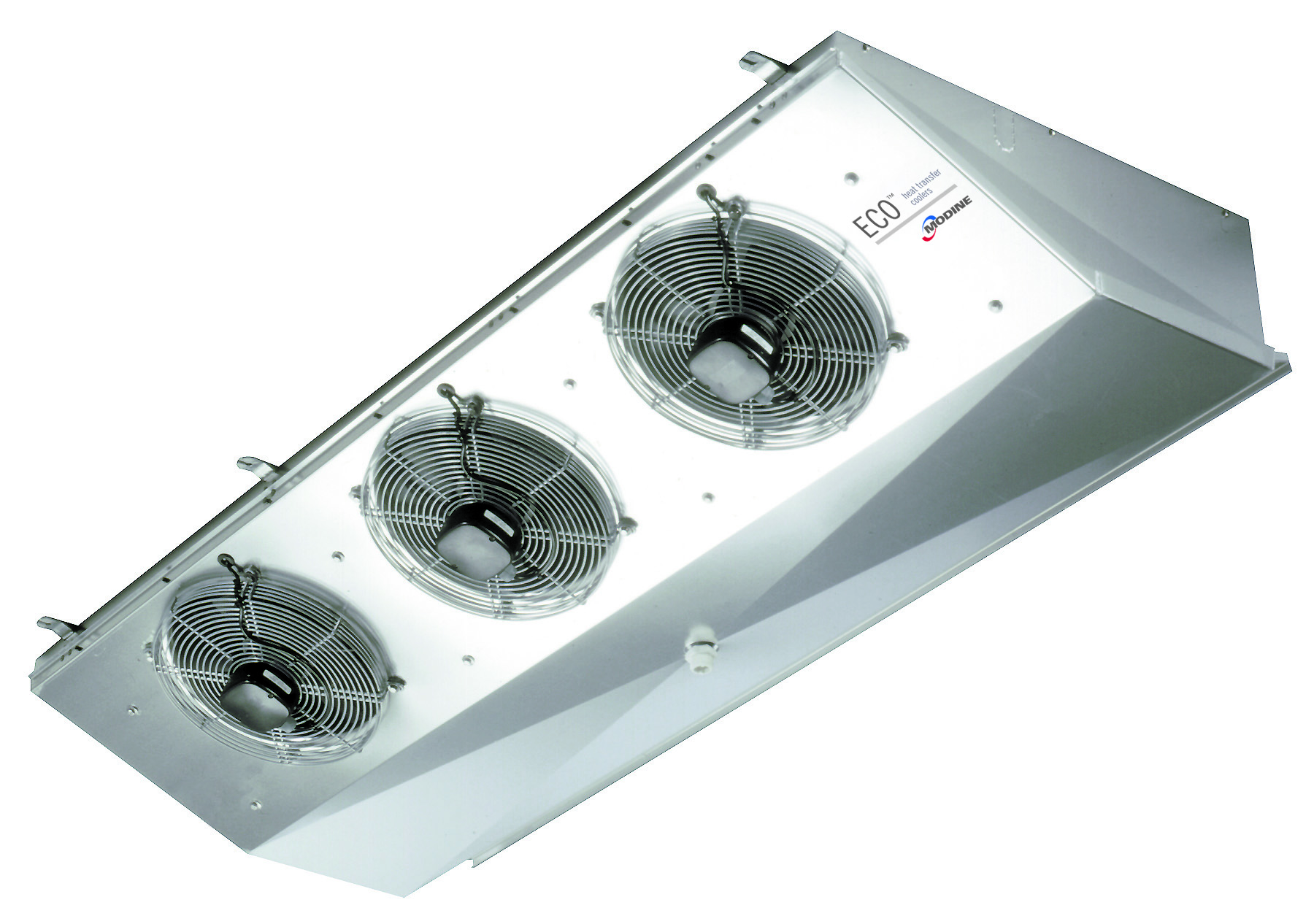

GSE

4 T

Applications

  • Small cold rooms
  • Walk-in cabinets
  • Low ceiling commercial refrigeration cold rooms

Capacity Range

Unit coolers: From 1,85 to 7,6 kW

Brine coolers: Please use Scelte selection software

GSE Specifications

Overview

Range consists of 8 customizable models.

According to the room temperature, the range is divided as follows:

  • GSE H4 for higher temperatures (≥ +2 °C) with 4 mm fin spacing
  • GSE L7 for lower temperatures (≥ –25 °C) with 7 mm fin spacing, electric defrost version (ED) is recommended

On request, the models can be equipped with non-standard coils, defrosting, and fan motors.

Coil Features
The entire range is equipped with highly efficient coils made from aluminum fins and inner grooved tube. Thanks to a new geometry there is a substantial reduction of the inner volume resulting in a decreased refrigerant use. The updated coil design responds to the recent guidelines governing the reduction of HFC gases with high greenhouse effect. (smooth tube for brine coolers).
Casing
Casing Features Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film
Fan Motors
The standard AC fan motors employed have the following features:
  • Ø 315 mm
  • fan motor module: from 1 to 4
  • external rotor
  • single-phase 230V/1/50-60Hz
  • built-in electric capacitor
  • epoxy coated steel fan guard

The optional high efficiency EC fan motors have the following features:
  • Ø 300 mm:
  • fan motor module: the same as AC fan motors
  • external rotor
  • single-phase 230V/1/50-60Hz
  • fibreglass charged polyamide fan guard
Defrost
The versions with standard electric defrost (ED) are equipped with stainless steel heaters with vulcanised terminals preset for 400V/3/50-60 Hz connection
Wiring
The electric parts and casework are connected to an earth terminal, the wiring of the fan motors and heaters is carried out in separate IP 54 protection grade junction boxes
Certifications
  • CE
  • PED
  • TÜV SÜD (Please see cerfified model list on the catalogue)
Published Data
  • EN 328 reference standard
  • Nominal capacity assessed in practical operating ambient i.e. in wet conditions
  • R448A refrigerant (media glide)
  • air inlet temperature 0 °C
  • evaporating temperature –8 °C
  • TD 8 K
