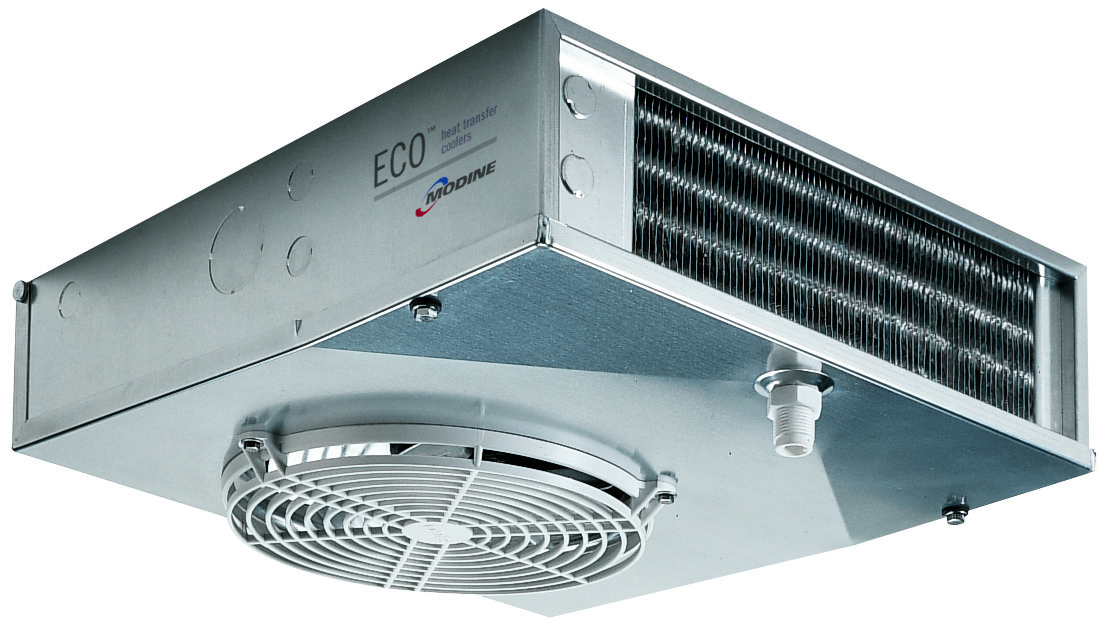

EVS-W

EVS

Applications

  • Reach-in cabinets
  • Display cases
  • Small cold rooms
  • Walk-in cabinets

Capacity Range

Unit coolers: EMEA from 0,34 to 3 kW
Unit coolers: APAC from 0,37 to 3,29 kW

Brine coolers: please use Scelte selection software

EVS-W Specifications

Overview

Range consists of 20 customizable models.
In accordance to the room temperature, this range is subdivided into two types:

  • EVS for higher temperatures (≥–12°C), with 3,5/7 mm dual fin spacing and electric defrost
  • EVS/B for lower temperatures (≥–25°C), with 4,5/9 mm dual fin spacing and electric defrost

On request, the models can be equipped with non-standard: coils, defrosting, and fan motors.

Coil Features
The entire range is equipped with high efficiency coils made from special profile aluminium fins and smooth copper tube, optimized for brine pump circulation.
Casing
Casing Features Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film
Fan Motors
The standard AC fan motors employed have the following features:
  • Ø 200 mm
  • fan motor module: from 1 to 4
  • single-phase 230V/1/50-60Hz
  • fibreglass charged polyamide fan guard

The optional high efficiency EC fan motors have the following features:
  • Ø 200 mm
  • fan motor module: the same as AC fan motors
  • single-phase 230V/1/50-60Hz
  • fibreglass charged polyamide fan guard
Defrost
The versions with standard electric defrost (ED) are equipped with stainless steel heaters with vulcanised terminals preset for 230V/1/50-60Hz connection
Wiring
The EVS/B models are equipped with internal drip tray and a junction box (IP 54) for the wiring of the fan motors and for possible electric heaters
Certifications
  • CE
  • PED
