overview

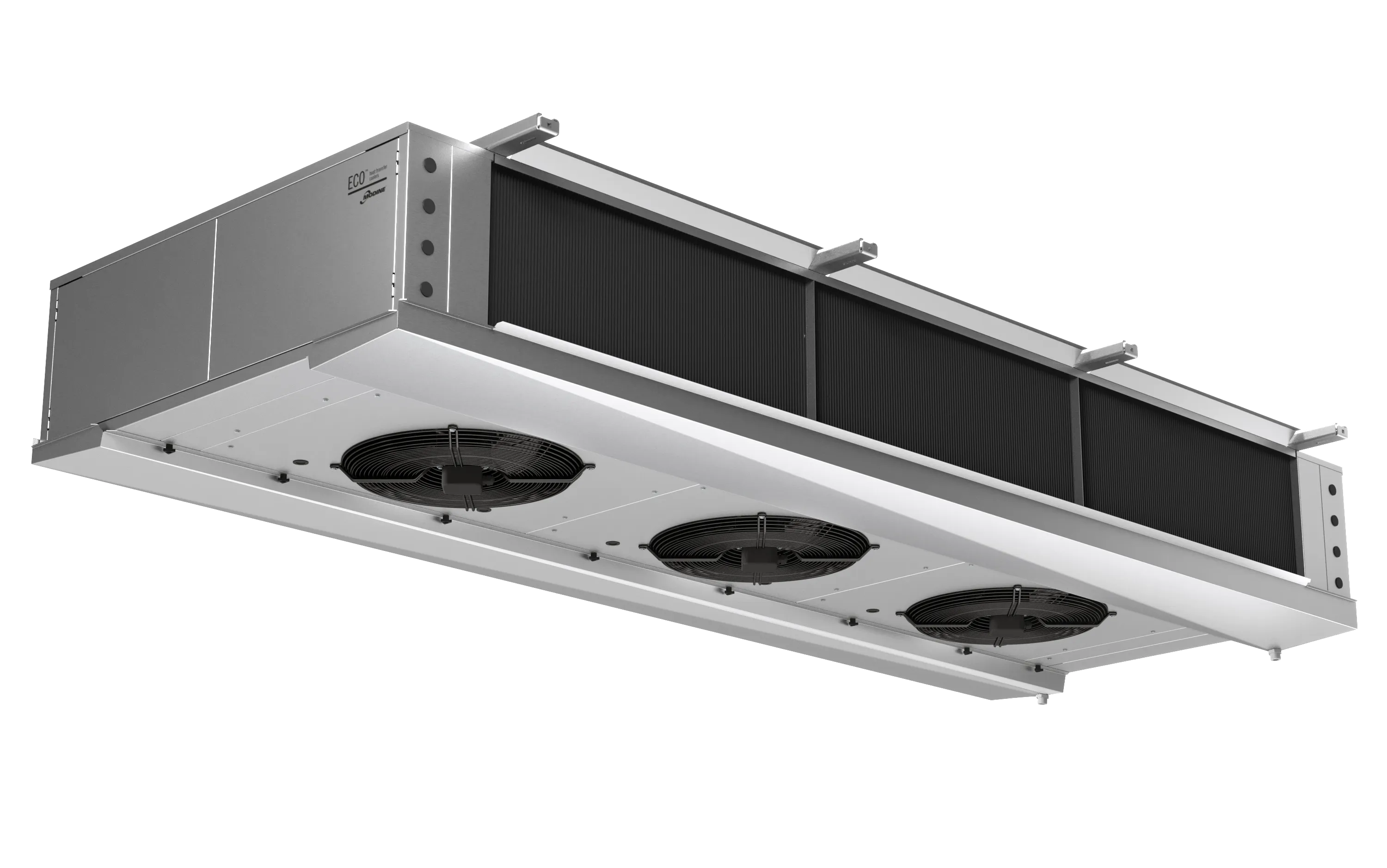

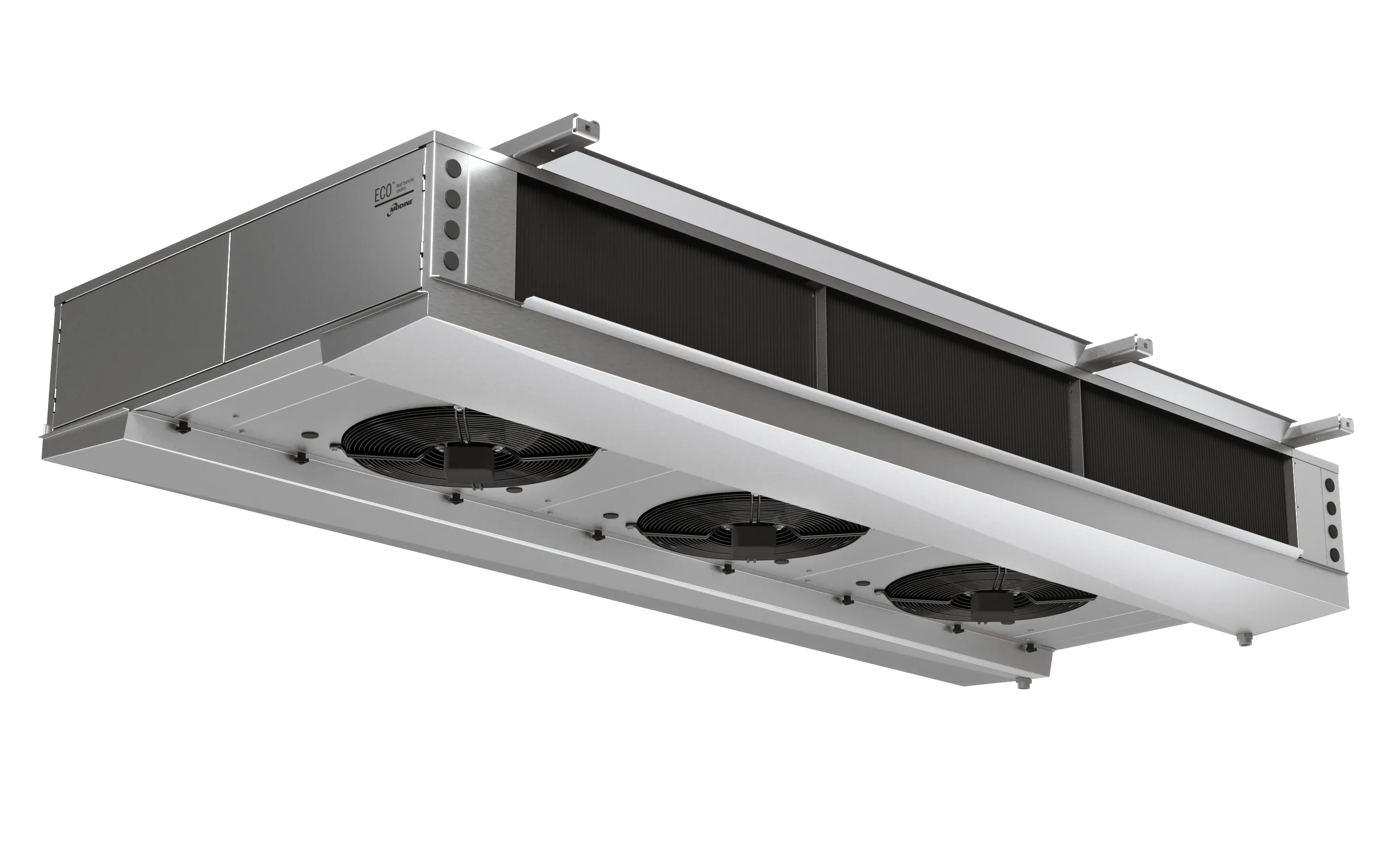

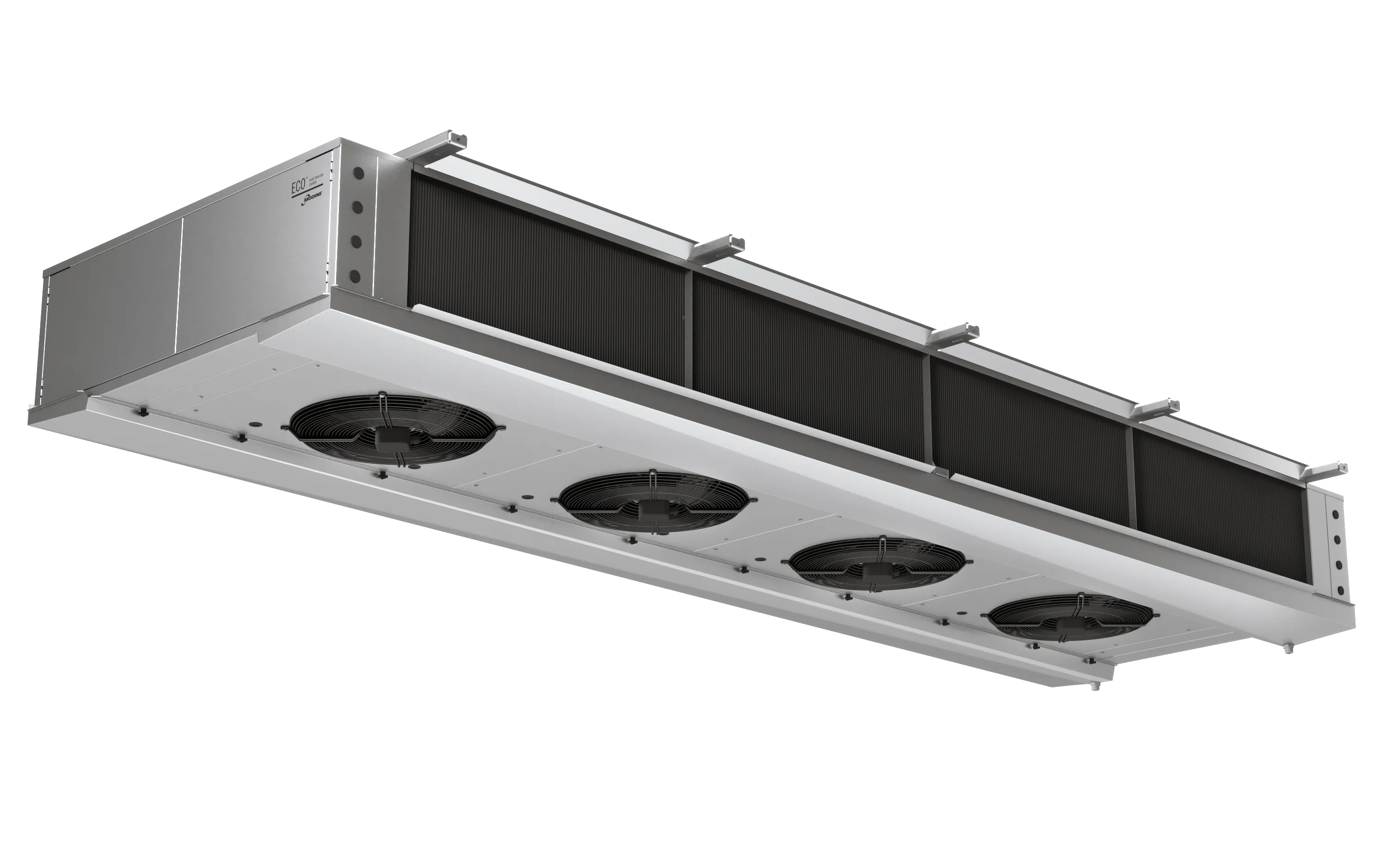

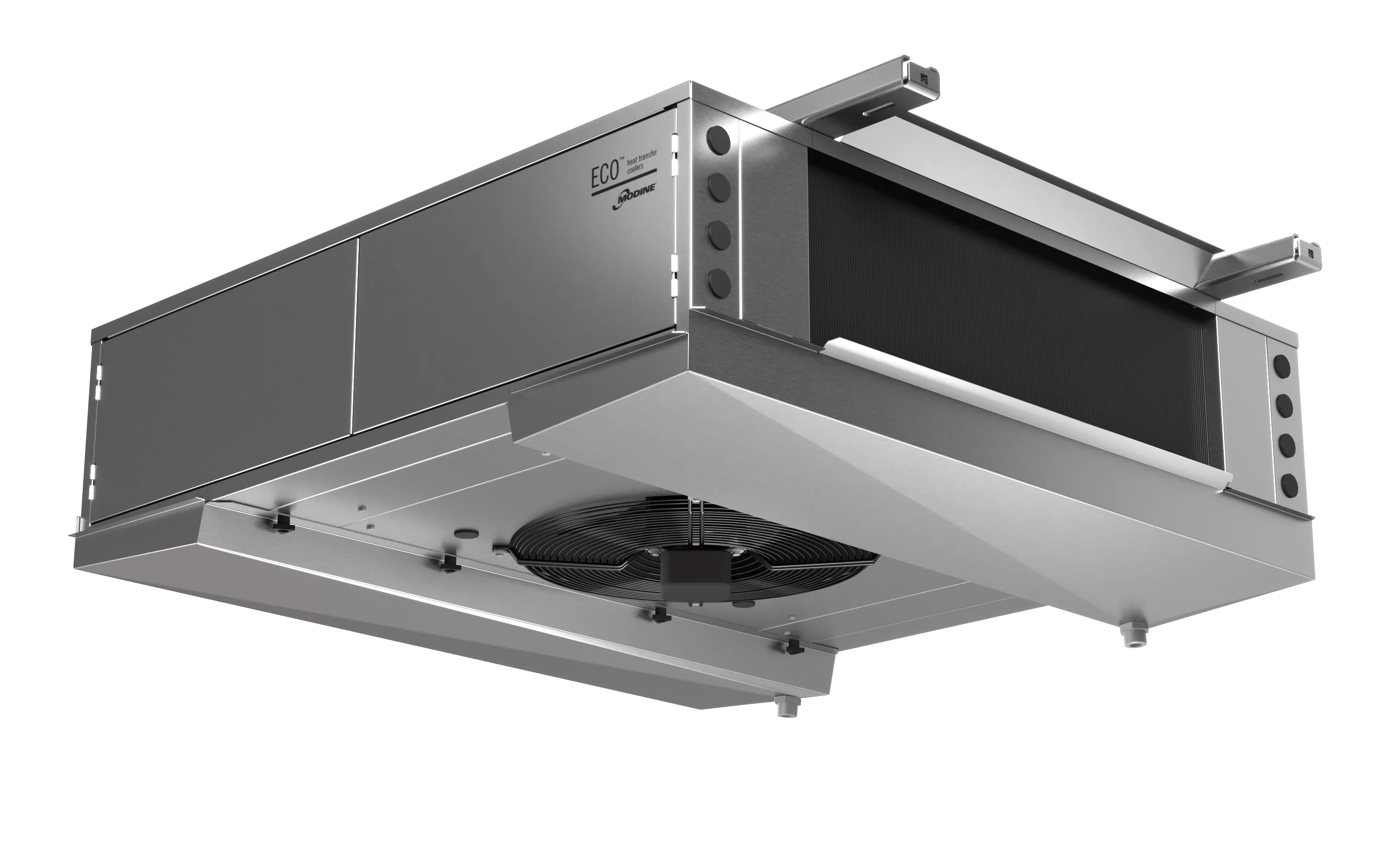

Range consist of 36 customizable models.
In accordance to the room temperature the range is divided as follows:
- IDE-4 for higher temperatures (≥ +2 °C) with 4,5 mm fin spacing;
- IDE-7 for medium temperatures (≥ –25 °C) with 7 mm fin spacing, electric defrost version ED is recommended;
- IDE-10 for lower temperatures (≥ –35 °C) with 10 mm fin spacing, electric defrost version ED is recommended.
On request the models can be equipped with non-standard: coils, defrosting and fan motors.
Range consist of 36 customizable models.
In accordance to the room temperature the range is divided as follows:
- IDE-4 for higher temperatures (≥ +2 °C) with 4,5 mm fin spacing;
- IDE-7 for medium temperatures (≥ –25 °C) with 7 mm fin spacing, electric defrost version ED is recommended;
- IDE-10 for lower temperatures (≥ –35 °C) with 10 mm fin spacing, electric defrost version ED is recommended.
On request the models can be equipped with non-standard: coils, defrosting and fan motors.
Range consist of 36 customizable models.
In accordance to the room temperature the range is divided as follows:
- IDE-4 for higher temperatures (≥ +2 °C) with 4,5 mm fin spacing;
- IDE-7 for medium temperatures (≥ –25 °C) with 7 mm fin spacing, electric defrost version ED is recommended;
- IDE-10 for lower temperatures (≥ –35 °C) with 10 mm fin spacing, electric defrost version ED is recommended.
On request the models can be equipped with non-standard: coils, defrosting and fan motors.
applications
- Low ceiling industrial refrigeration cold rooms
- Refrigerated warehouses
- Low ceiling industrial refrigeration cold rooms
- Refrigerated warehouses
- Low ceiling industrial refrigeration cold rooms
- Refrigerated warehouses
capacity range
From 5,73 to 78,6 kW
From 5,73 to 78,6 kW
From 5,73 to 77 kW
Technical Information
Coil features
- The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable for new generation refrigerants.
- The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable for new generation refrigerants.
- The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable for new generation refrigerants.
Casing
- Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film.
Fan motors
The standard AC fan motors employed have the following features:
Ø 450 mm
- fan motor module: 2 or 3
- external rotor
- three-phase 400V/3/50 Hz
- dual speed
- epoxy coated steel fan guard
Ø 560 mm
- fan motor module: 2 or 4
- external rotor
- three-phase 400V/3/50 Hz
- dual speed
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 450 mm
- fan motor module: 2 or 3
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Ø 560 mm
- fan motor module: 2 or 4
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
The standard AC fan motors employed have the following features:
Ø 450 mm
- fan motor module: 2 or 3
- external rotor
- three-phase 400V/3/50 Hz
- dual speed
- epoxy coated steel fan guard
Ø 560 mm
- fan motor module: 2 or 4
- external rotor
- three-phase 400V/3/50 Hz
- dual speed
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 450 mm
- fan motor module: 2 or 3
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Ø 560 mm
- fan motor module: 2 or 4
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
The standard AC fan motors employed have the following features:
Ø 450 mm
- fan motor module: 2 or 3
- external rotor
- three-phase 400V/3/50 Hz
- dual speed
- epoxy coated steel fan guard
Ø 560 mm
- fan motor module: 2 or 4
- external rotor
- three-phase 400V/3/50 Hz
- dual speed
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 450 mm
- fan motor module: 2 or 3
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Ø 560 mm
- fan motor module: 2 or 4
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Defrost
Wiring
- The electric parts and casework are predisposed for grounding.
- The wiring of the heaters is carried out in separate IP 54 protection grade junction boxes.
Certifications
- CE
- PED
Published data
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- EMEA: R448A refrigerant (mid point).
- APAC: R404A refrigerant.
- Air inlet temperature 0 °C.
- Evaporating temperature –8 °C.
- TD 8 K.
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- R448A refrigerant (mid point).
- Air inlet temperature 0 °C.
- Evaporating temperature –8 °C.
- TD 8 K.
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- R404A refrigerant.
- Air inlet temperature 0 °C.
- Evaporating temperature –8 °C.
- TD 8 K.
