overview

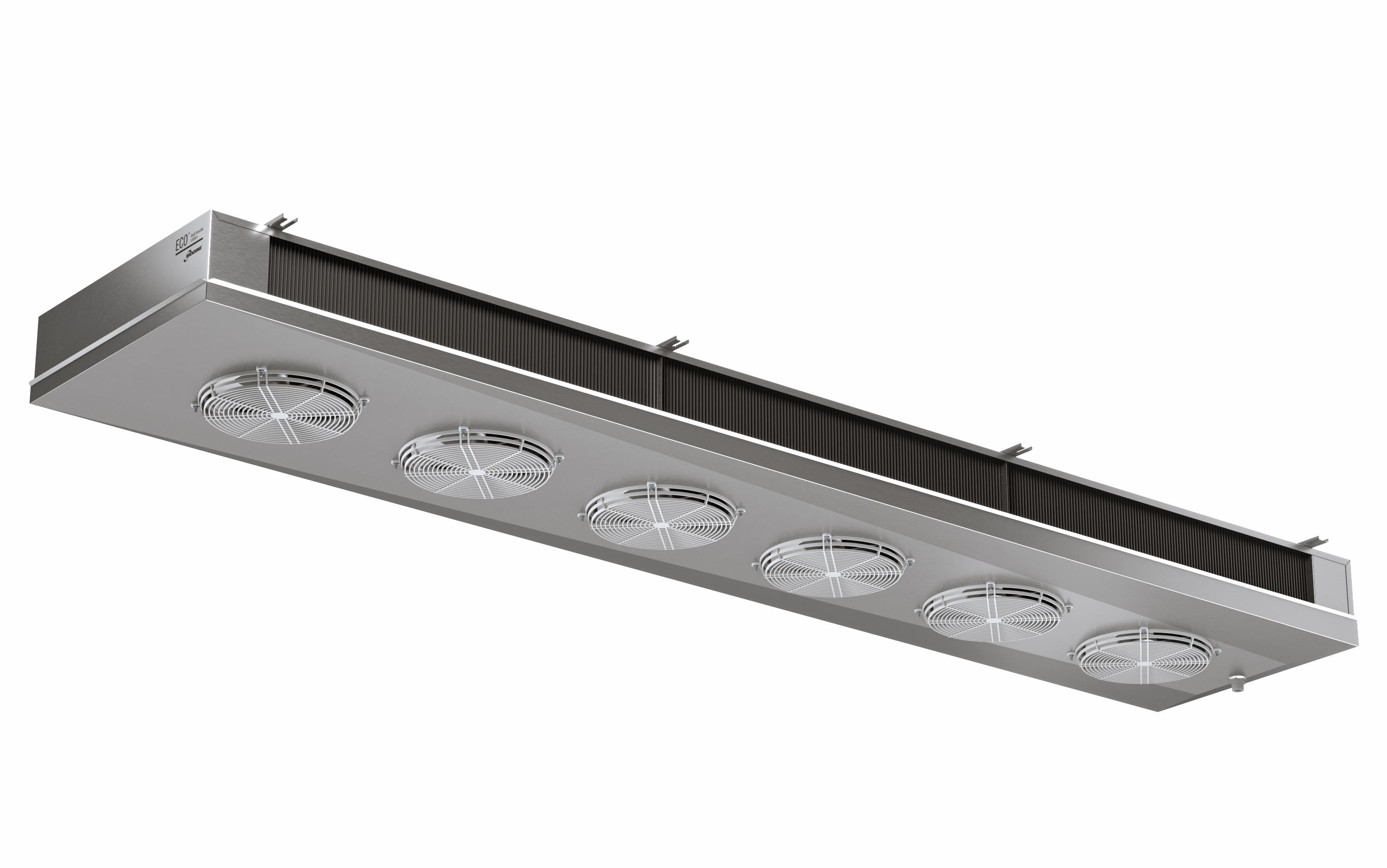

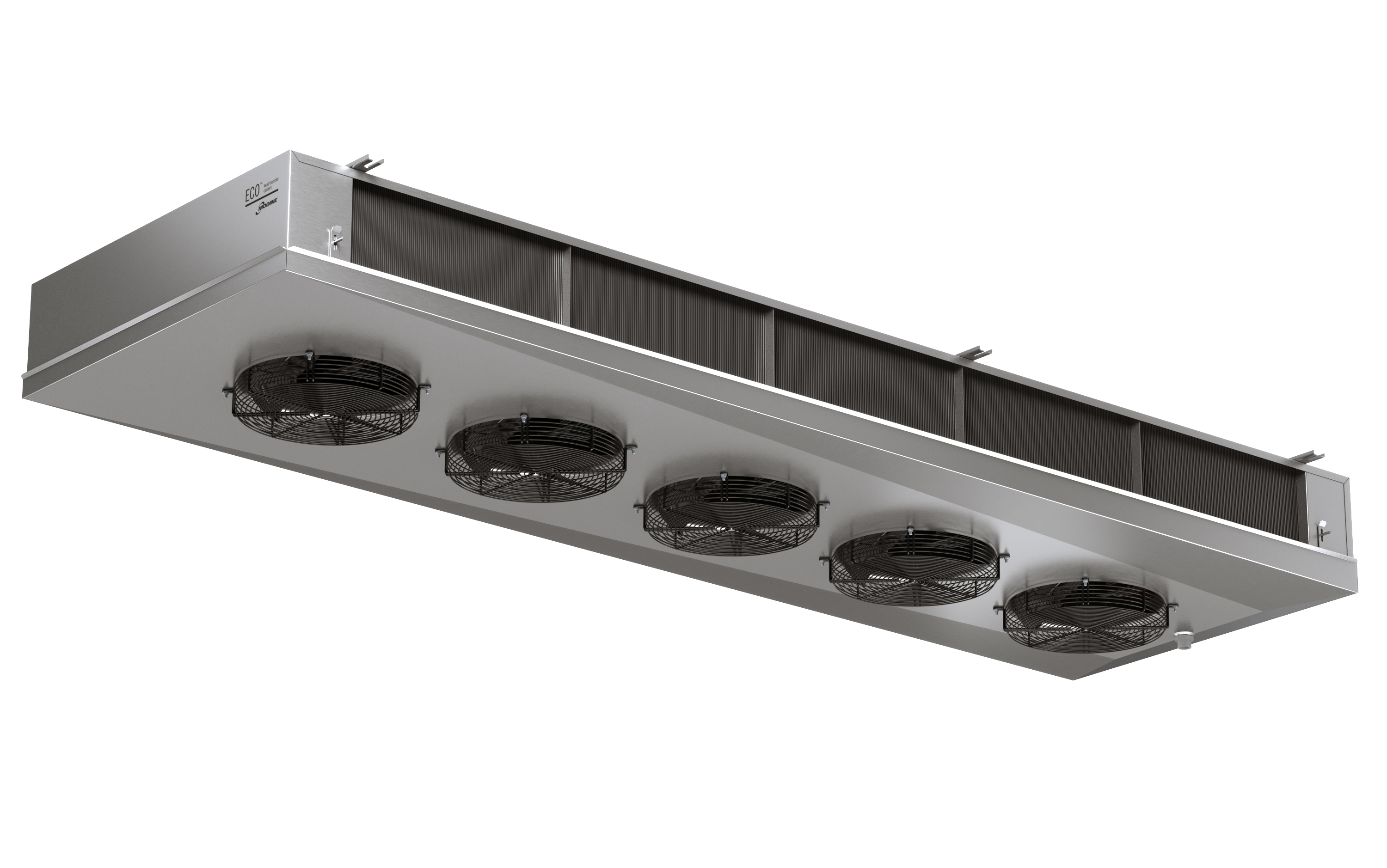

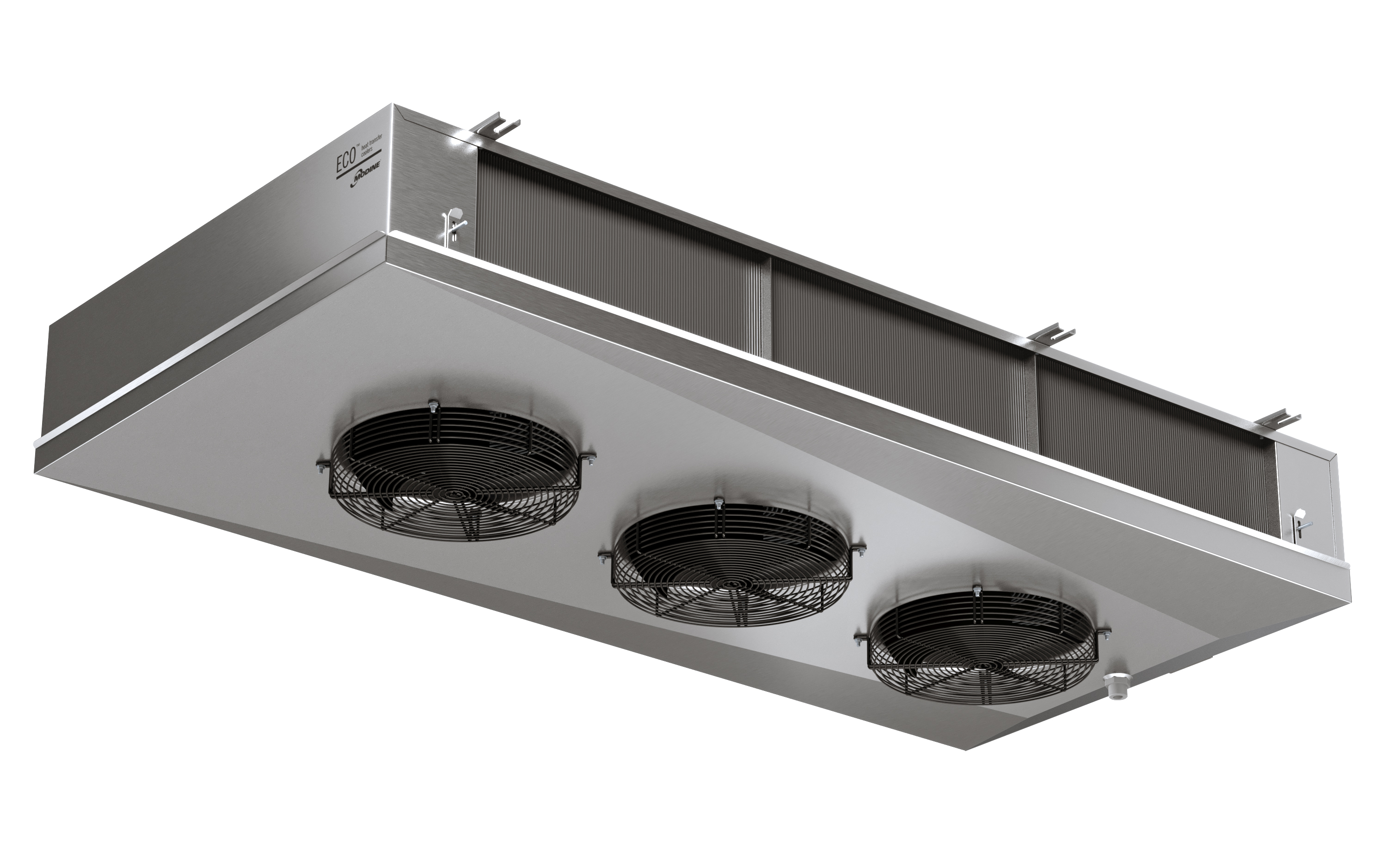

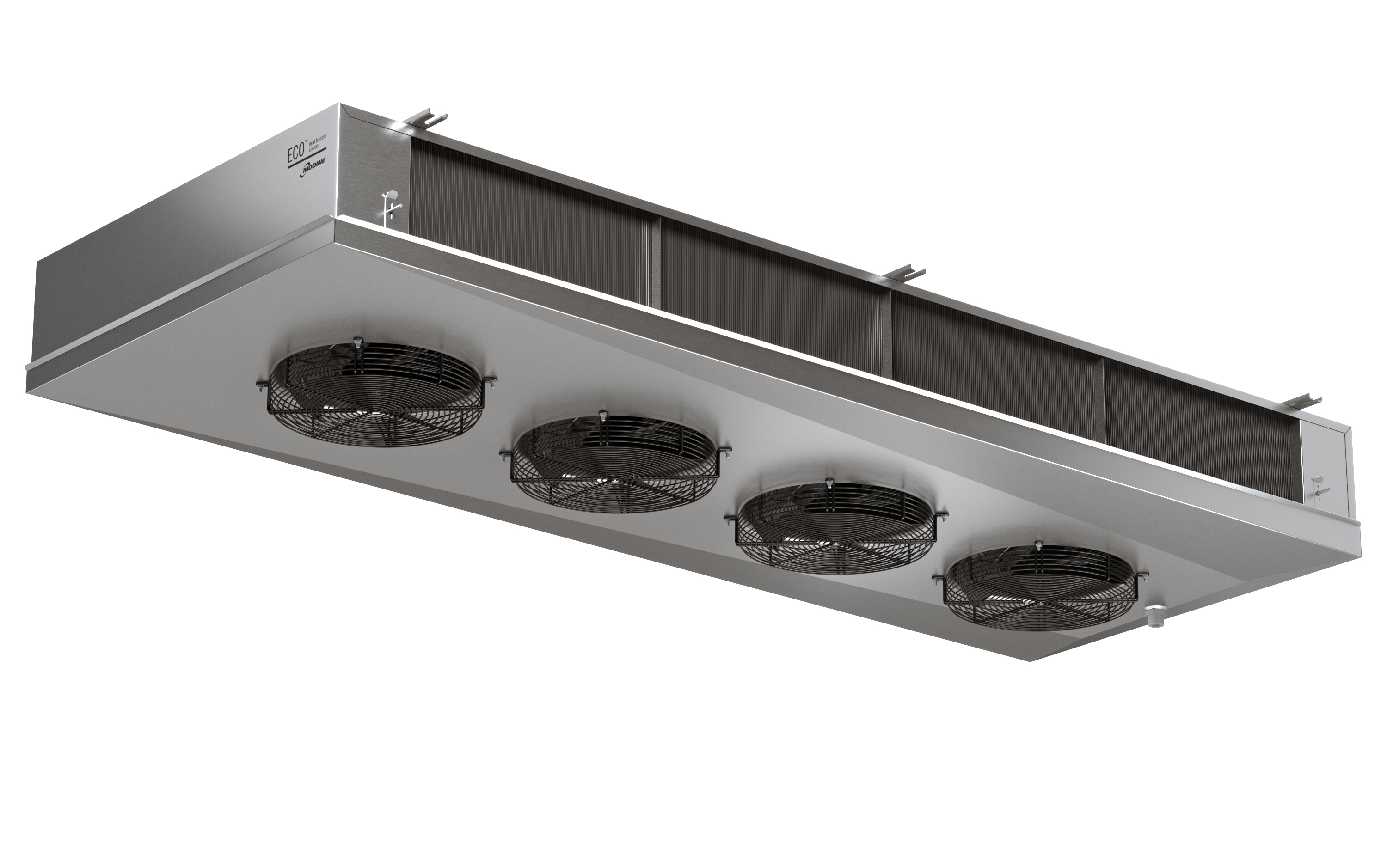

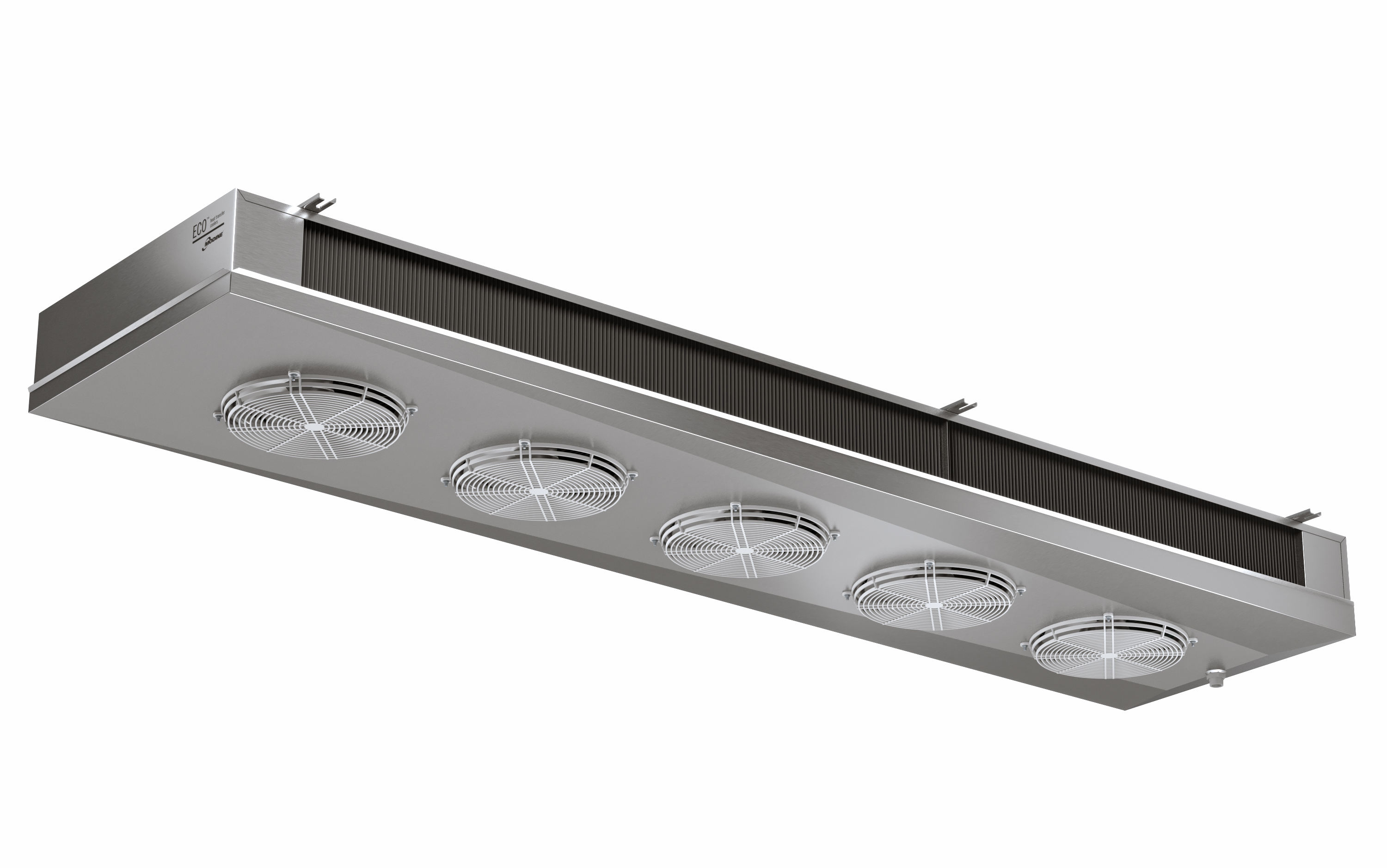

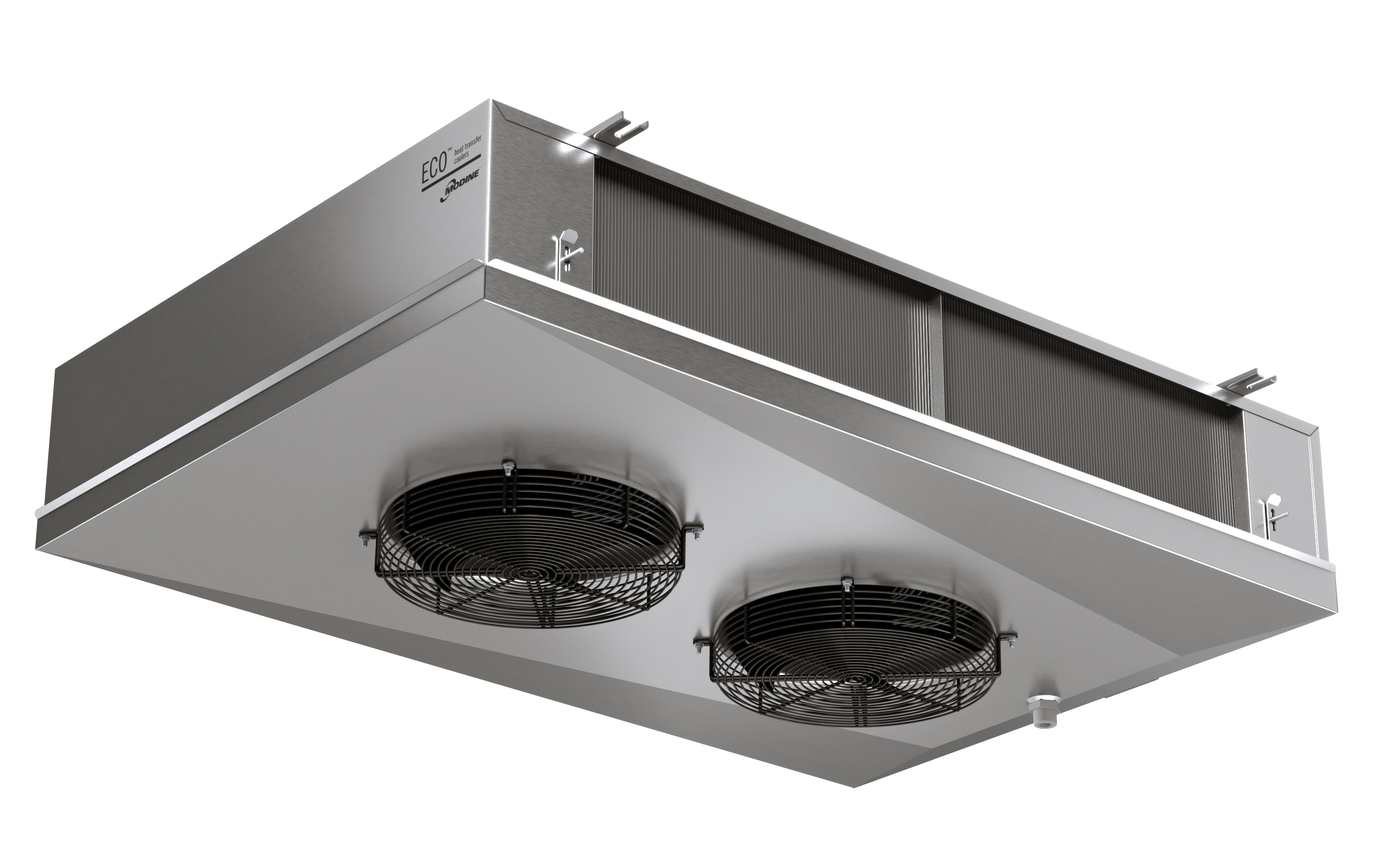

The dual discharge GDE range has been specifically designed for cold rooms with limited height for the preservation of fresh or frozen products and in food preparation and handling.
According to the room temperature the range is divided as follows:
- GDE 3 for higher temperatures (≥ 5 °C) with 3 mm fin spacing, designed for work rooms with no possibility of ice/frost formation on fins;
- GDE 4 for medium temperatures (≥ 1 °C) with 4 mm fin spacing;
- GDE 7 for lower temperatures (≥ –25 °C) with 7 mm fin spacing, electric defrost version (ED) is recommended.
On request the models can be equipped with non-standard: coils, defrosting and fan motors.
The dual discharge GDE range has been specifically designed for cold rooms with limited height for the preservation of fresh or frozen products and in food preparation and handling.
Range consists of 48 customizable models.
According to the room temperature the range is divided as follows:
- GDE 3 for higher temperatures (≥ 5 °C) with 3 mm fin spacing, designed for work rooms with no possibility of ice/frost formation on fins;
- GDE 4 for medium temperatures (≥ 1 °C) with 4 mm fin spacing;
- GDE 7 for lower temperatures (≥ –25 °C) with 7 mm fin spacing, electric defrost version (ED) is recommended.
On request the models can be equipped with non-standard: coils, defrosting and fan motors.
The dual discharge GDE range has been specifically designed for cold rooms with limited height for the preservation of fresh or frozen products and in food preparation and handling.
Range consists of 30 customizable models.
According to the room temperature the range is divided as follows:
- GDE 3 for higher temperatures (≥ 5 °C) with 3 mm fin spacing, designed for work rooms with no possibility of ice/frost formation on fins;
- GDE 4 for medium temperatures (≥ 1 °C) with 4 mm fin spacing;
- GDE 7 for lower temperatures (≥ –25 °C) with 7 mm fin spacing, electric defrost version (ED) is recommended.
On request the models can be equipped with non-standard: coils, defrosting and fan motors.
applications
- Commercial refrigeration cold rooms
- Low ceiling commercial refrigeration cold rooms
- Food processing rooms (fresh and sensitive products, sea food, meat)
- Commercial refrigeration cold rooms
- Low ceiling commercial refrigeration cold rooms
- Food processing rooms (fresh and sensitive products, sea food, meat)
- Commercial refrigeration cold rooms
- Low ceiling commercial refrigeration cold rooms
- Food processing rooms (fresh and sensitive products, sea food, meat)
capacity range
From 1,8 to 35,2 kW
From 1,8 to 34,5 kW
From 2,2 to 35,2 kW
Technical Information
Coil features
- The entire range is equipped with highly efficient coils made from aluminum fins and inner grooved tube.
- Thanks to a new geometry there is a substantial reduction of the inner volume resulting in a decreased refrigerant use.
- The updated coil design responds to the recent guidelines governing the reduction of HFC gases with high greenhouse effect.
- The entire range is equipped with highly efficient coils made from aluminum fins and inner grooved tube.
- Thanks to a new geometry there is a substantial reduction of the inner volume resulting in a decreased refrigerant use.
- The updated coil design responds to the recent guidelines governing the reduction of HFC gases with high greenhouse effect.
- The entire range is equipped with highly efficient coils made from aluminum fins and inner grooved tube.
- Thanks to a new geometry there is a substantial reduction of the inner volume resulting in a decreased refrigerant use.
- The updated coil design responds to the recent guidelines governing the reduction of HFC gases with high greenhouse effect.
Casing
- Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film.
Fan motors
The standard AC fan motors employed have the following features:
Ø 315 mm (EMEA only)
- fan motor module: from 1 to 6
- dual speed
- external rotor
- single phase dual speed 230V/1/50-60 Hz
- built-in electric capacitor
- fibreglass charged polyamide fan guards
Ø 350 mm
- fan motor module: from 1 to 5
- external rotor
- single-phase high speed (4 or 6 poles) 230V/1/50-60Hz
- built-in electric capacitor
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 315 mm (EMEA only)
- fan motor module: from 1 to 6
- external rotor
- single phase dual speed 230V/1/50-60 Hz
- fibreglass charged polyamide fan guards
Ø 350 mm
- fan motor module: from 1 to 5
- external rotor
- single phase 230V/1/50-60 Hz
- fibreglass charged polyamide fan guards
- speed regulation with 0-10V signal
The standard AC fan motors employed have the following features:
Ø 315 mm
- fan motor module: from 1 to 6
- dual speed
- external rotor
- single phase dual speed 230V/1/50-60 Hz
- built-in electric capacitor
- fibreglass charged polyamide fan guards
Ø 350 mm
- fan motor module: from 1 to 5
- external rotor
- single-phase high speed (4 or 6 poles) 230V/1/50-60Hz
- built-in electric capacitor
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 315 mm
- fan motor module: from 1 to 6
- external rotor
- single phase dual speed 230V/1/50-60 Hz
- fibreglass charged polyamide fan guards
Ø 350 mm
- fan motor module: from 1 to 5
- external rotor
- single phase 230V/1/50-60 Hz
- fibreglass charged polyamide fan guards
- speed regulation with 0-10V signal
The standard AC fan motors employed have the following features:
Ø 350 mm
- fan motor module: from 1 to 5
- external rotor
- single-phase high speed (4 or 6 poles) 230V/1/50-60Hz
- built-in electric capacitor
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 350 mm
- fan motor module: from 1 to 5
- external rotor
- single phase 230V/1/50-60 Hz
- fibreglass charged polyamide fan guards
- speed regulation with 0-10V signal
Defrost
Wiring
- The versions with standard electric defrost (ED) are equipped with stainless steel heaters with vulcanised terminals preset for 400V/3/50-60 Hz connection.
- The electric parts and casing are connected to a earth terminal.
- The wiring of the motors and heaters is carried out in separate IP 54 protection grade junction boxes.
Certifications
- CE
- PED
- EAC
- TÜV SÜD (Please see cerfified model list on the catalogue)
Published data
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- EMEA: R448A refrigerant (mid point).
- APAC: R404A refrigerant.
- Air inlet temperature 0 °C.
- Evaporating temperature –8 °C.
- TD 8 K.
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- R448A refrigerant (mid point).
- Air inlet temperature 0 °C.
- Evaporating temperature –8 °C.
- TD 8 K.
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- R404A refrigerant.
- Air inlet temperature 0 °C.
- Evaporating temperature –8 °C.
- TD 8 K.
