overview

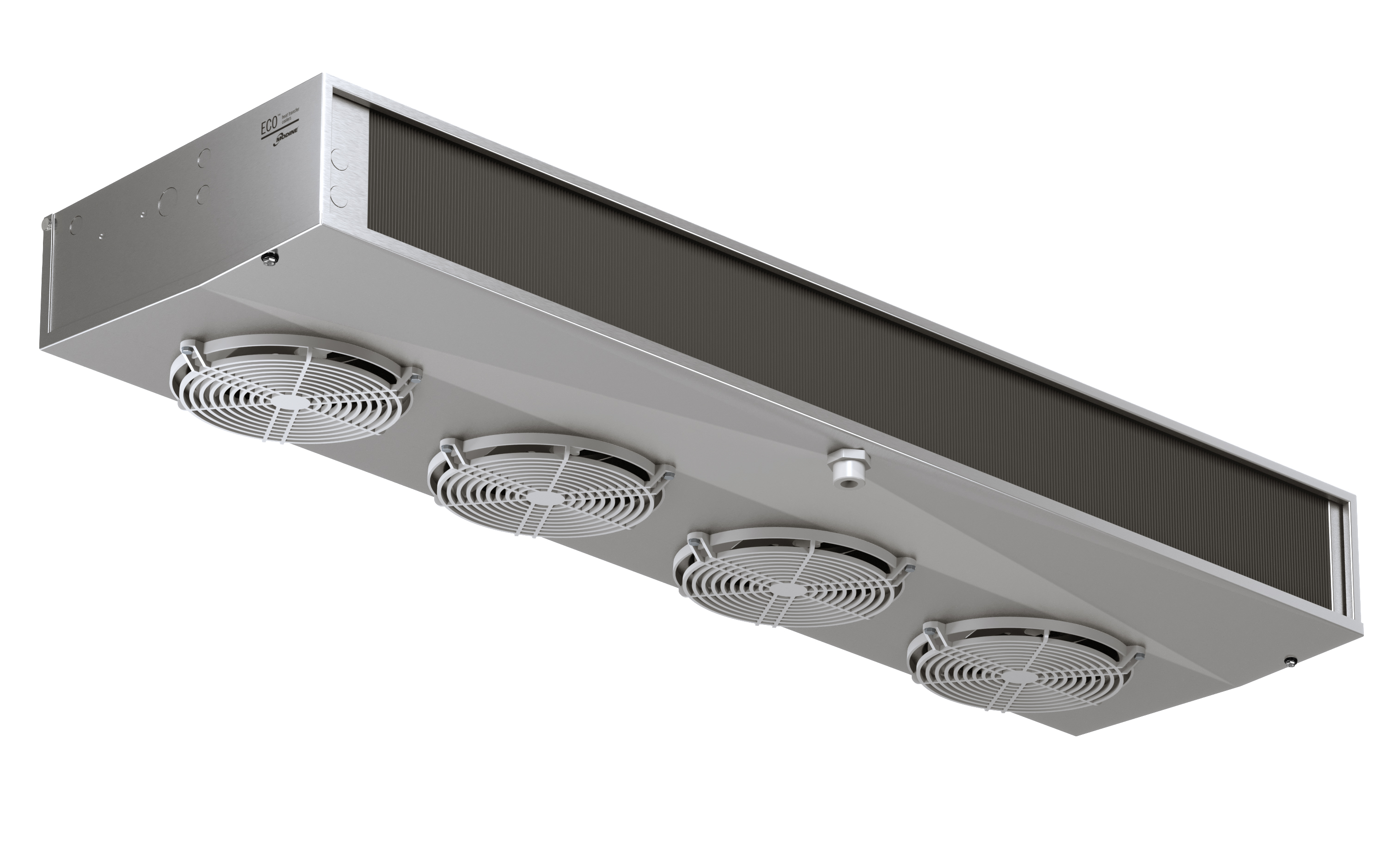

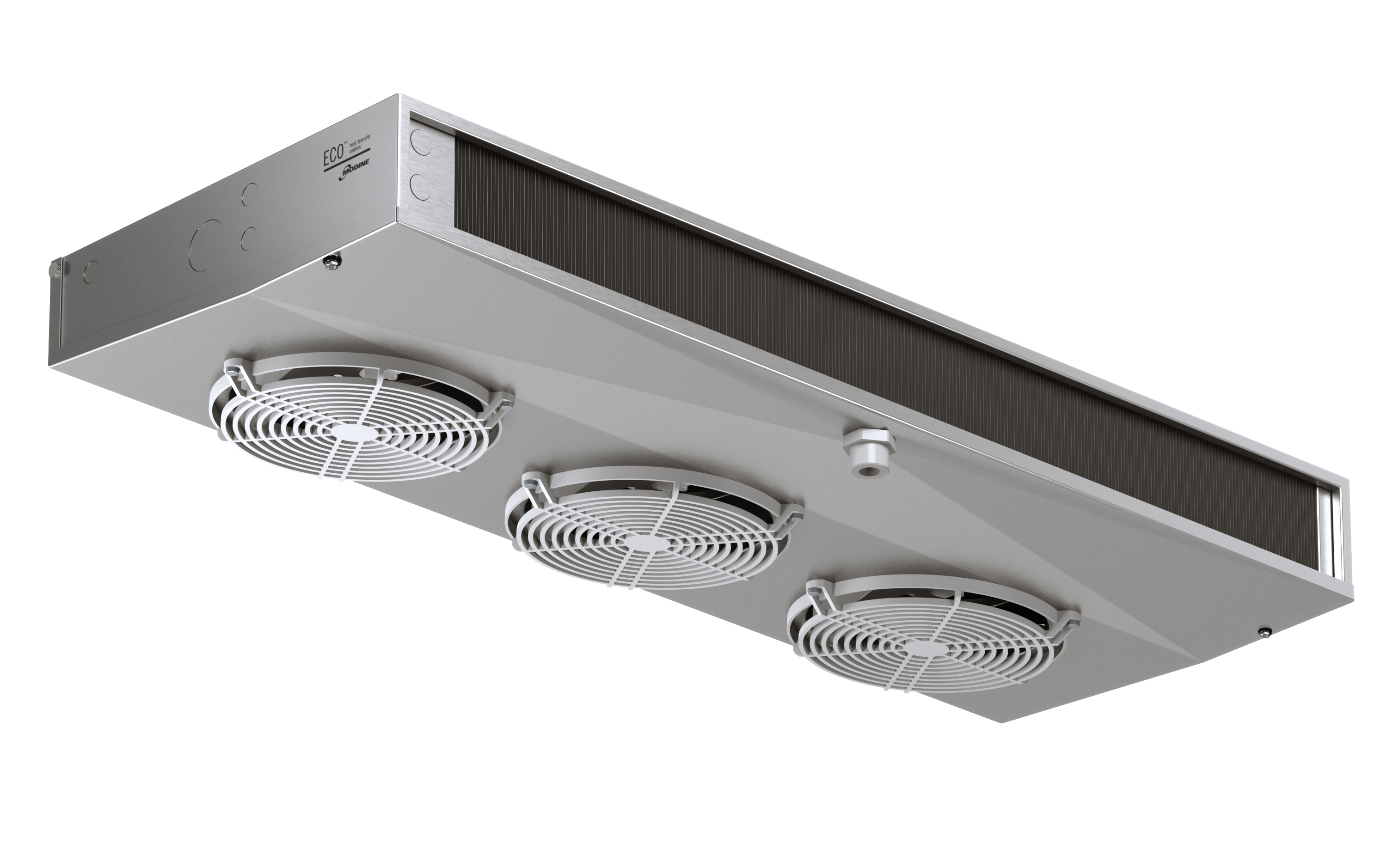

Range consist of 20 customizable models
In accordance to the room temperature this range is subdivided into two types:
- EVS for higher temperatures (≥–12°C), with 3,5/7 mm dual fin spacing and electric defrost;
- EVS/B for lower temperatures (≥–25°C), with 4,5/9 mm dual fin spacing and electric defrost.
On request the models can be equipped with non-standard: coils, defrosting and fan motors.
Range consist of 20 customizable models
In accordance to the room temperature this range is subdivided into two types:
- EVS for higher temperatures (≥–12°C), with 3,5/7 mm dual fin spacing and electric defrost;
- EVS/B for lower temperatures (≥–25°C), with 4,5/9 mm dual fin spacing and electric defrost.
On request the models can be equipped with non-standard: coils, defrosting and fan motors.
Range consist of 20 customizable models
In accordance to the room temperature this range is subdivided into two types:
- EVS for higher temperatures (≥–12°C), with 3,5/7 mm dual fin spacing and electric defrost;
- EVS/B for lower temperatures (≥–25°C), with 4,5/9 mm dual fin spacing and electric defrost.
On request the models can be equipped with non-standard: coils, defrosting and fan motors.
applications
- Reach-in cabinets
- Display cases
- Small cold rooms
- Walk-in cabinets
- Reach-in cabinets
- Display cases
- Small cold rooms
- Walk-in cabinets
- Reach-in cabinets
- Display cases
- Small cold rooms
- Walk-in cabinets
capacity range
From 0,34 to 3,29 kW
From 0,34 to 3 kW
From 0,37 to 3,29 kW
Technical Information
Coil features
- The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable for new generation refrigerants.
- The updated coil design responds to the recent guidelines governing the reduction of HFC gases with high greenhouse effect.
- The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable for new generation refrigerants.
- The updated coil design responds to the recent guidelines governing the reduction of HFC gases with high greenhouse effect.
- The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable for new generation refrigerants.
- The updated coil design responds to the recent guidelines governing the reduction of HFC gases with high greenhouse effect.
Casing
- Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film.
Fan motors
The standard AC fan motors employed have the following features:
Ø 200 mm
- fan motor module: from 1 to 4
- single-phase 230V/1/50-60Hz
- fibreglass charged polyamide fan guard
The optional high efficiency EC fan motors have the following features:
Ø 200 mm
- fan motor module: from 1 to 4
- single-phase 230V/1/50-60Hz
- fibreglass charged polyamide fan guard
The standard AC fan motors employed have the following features:
Ø 200 mm
- fan motor module: from 1 to 4
- single-phase 230V/1/50-60Hz
- fibreglass charged polyamide fan guard
The optional high efficiency EC fan motors have the following features:
Ø 200 mm
- fan motor module: from 1 to 4
- single-phase 230V/1/50-60Hz
- fibreglass charged polyamide fan guard
The standard AC fan motors employed have the following features:
Ø 200 mm
- fan motor module: from 1 to 4
- single-phase 230V/1/50-60Hz
- fibreglass charged polyamide fan guard
The optional high efficiency EC fan motors have the following features:
Ø 200 mm
- fan motor module: from 1 to 4
- single-phase 230V/1/50-60Hz
- fibreglass charged polyamide fan guard
Defrost
Wiring

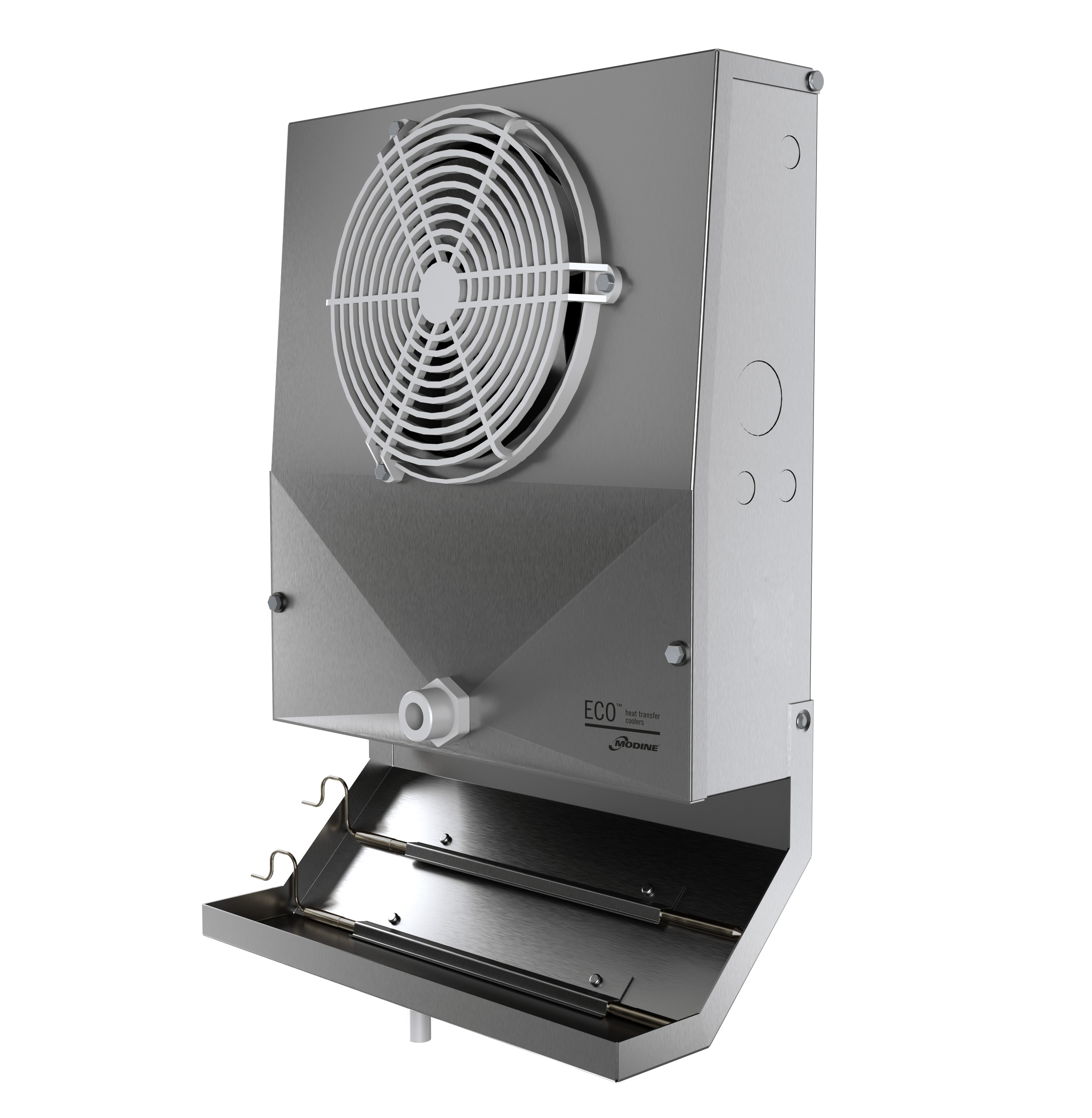

- The EVS/B models are equipped with internal drip tray and a junction box (IP 54) for the wiring of the fan motors and for possible electric heaters.
Certifications
- CE
- PED
Published data
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- EMEA: R448A refrigerant (mid point).
- APAC: R404A refrigerant.
- Air inlet temperature 0 °C.
- Evaporating temperature –8 °C.
- TD 8 K.
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- R448A refrigerant (mid point).
- Air inlet temperature 0 °C.
- Evaporating temperature –8 °C.
- TD 8 K.
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- R404A refrigerant.
- Air inlet temperature 0 °C.
- Evaporating temperature –8 °C.
- TD 8 K.
Downloads
Scelte Selection Software
SCELTE is a web based application to select all ECO™ branded coolers and to configure bespoke models.
The selection engine is faster than ever and will allow you to select the unit that suit your requirements, also thanks to a comprehensive database with all new generation refrigerants available on the market.
