overview
According to the room temperature, the range is divided as follows:
- CGS H3 – for higher temperatures (≥ +2 °C), with 3,5/7 mm dual fin spacing and electric defrost;
- CGS H4 – for higher temperatures (≥ +2 °C), with 4 mm fin spacing;
- CGS L4 – for lower temperatures (≥ –25 °C), with 4,5/9 mm dual fin spacing and electric defrost;
- CGS L7 – for lower temperatures (≥ –25 °C), with 7 mm fin spacing and electric defrost.
On request, the models can be equipped with non-standard coils, defrosting, and fan motors.
According to the room temperature, the range is divided as follows:
- CGS H3 – for higher temperatures (≥ +2 °C), with 3,5/7 mm dual fin spacing and electric defrost;
- CGS H4 – for higher temperatures (≥ +2 °C), with 4 mm fin spacing;
- CGS L4 – for lower temperatures (≥ –25 °C), with 4,5/9 mm dual fin spacing and electric defrost;
- CGS L7 – for lower temperatures (≥ –25 °C), with 7 mm fin spacing and electric defrost.
On request, the models can be equipped with non-standard coils, defrosting, and fan motors.
applications
- Display cases
- Low ceiling commercial refrigeration cold rooms
- Reach-in cabinets
- Small cold rooms
- Walk-in cabinets
- Display cases
- Low ceiling commercial refrigeration cold rooms
- Reach-in cabinets
- Small cold rooms
- Walk-in cabinets
capacity range
From 0,24 to 8,9 kW
From 0,24 to 8,9 kW
Technical Information
Coil features
- The CGS range is equipped with highly efficient coils made from aluminium fins and special copper tubes
- Design pressure: up to 80 bar.
- The CGS range is equipped with highly efficient coils made from aluminium fins and special copper tubes
- Design pressure: up to 80 bar.
Casing
- Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film.
Fan motors
The standard AC fan motors employed have the following features:
Ø 200 mm

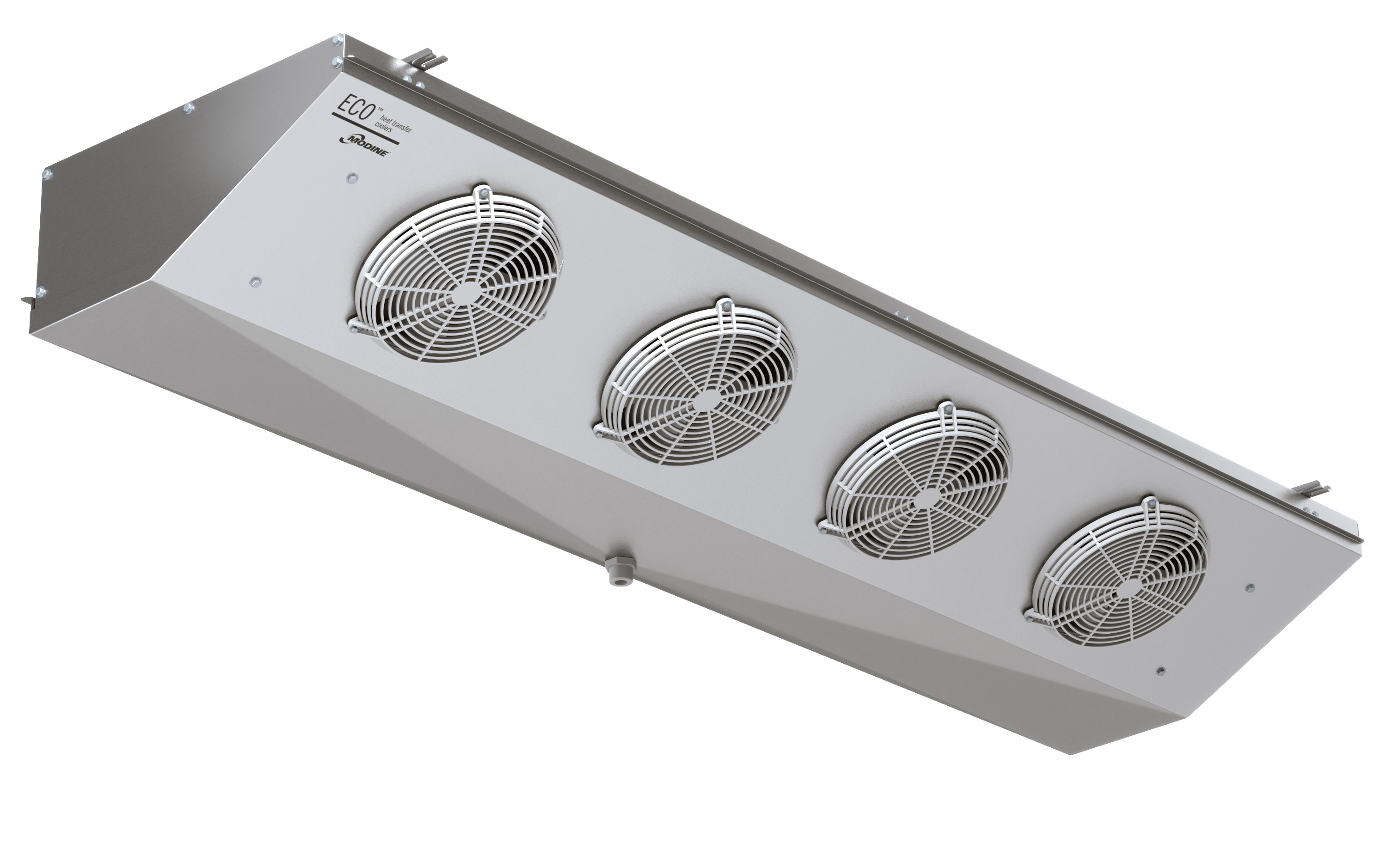

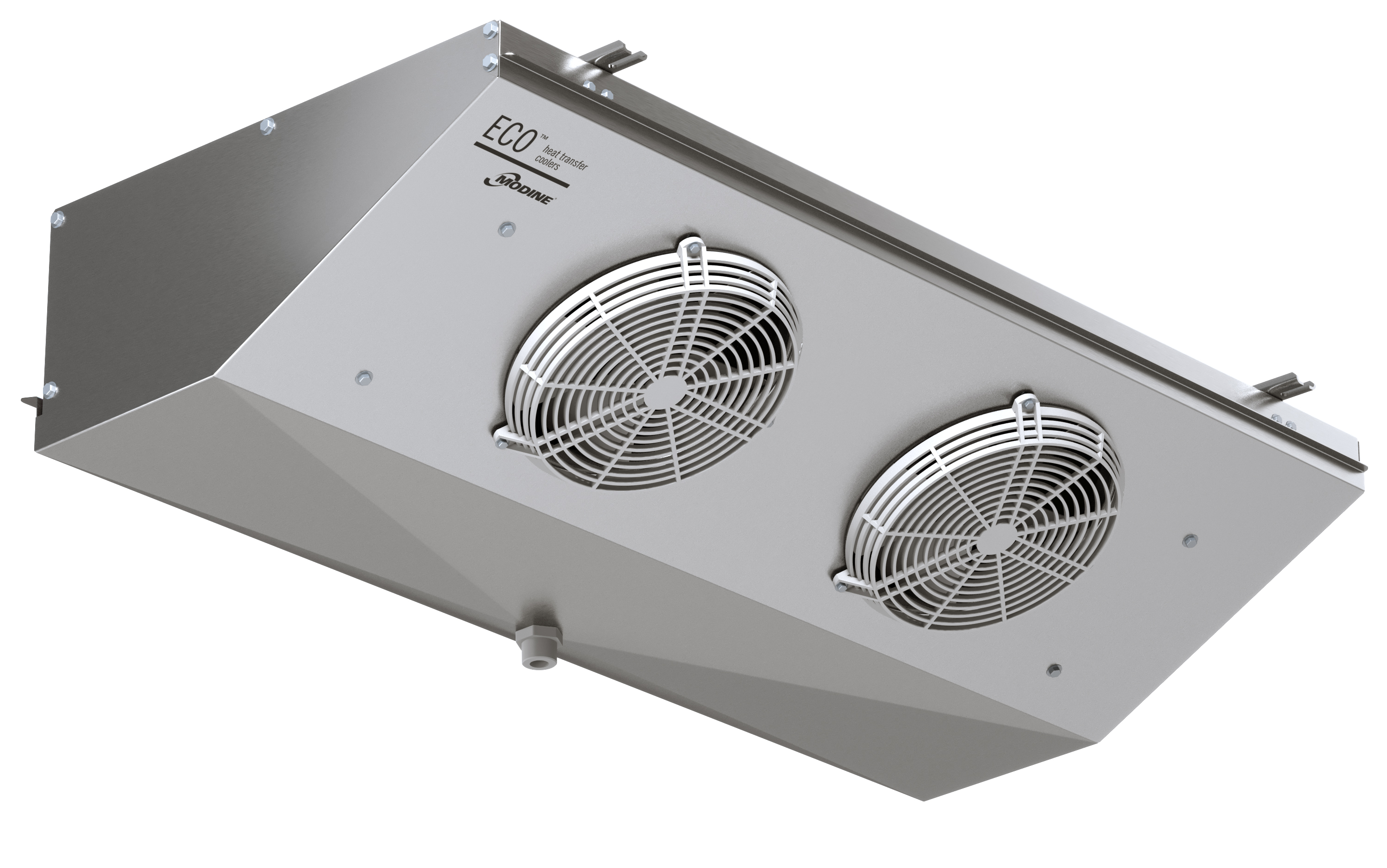

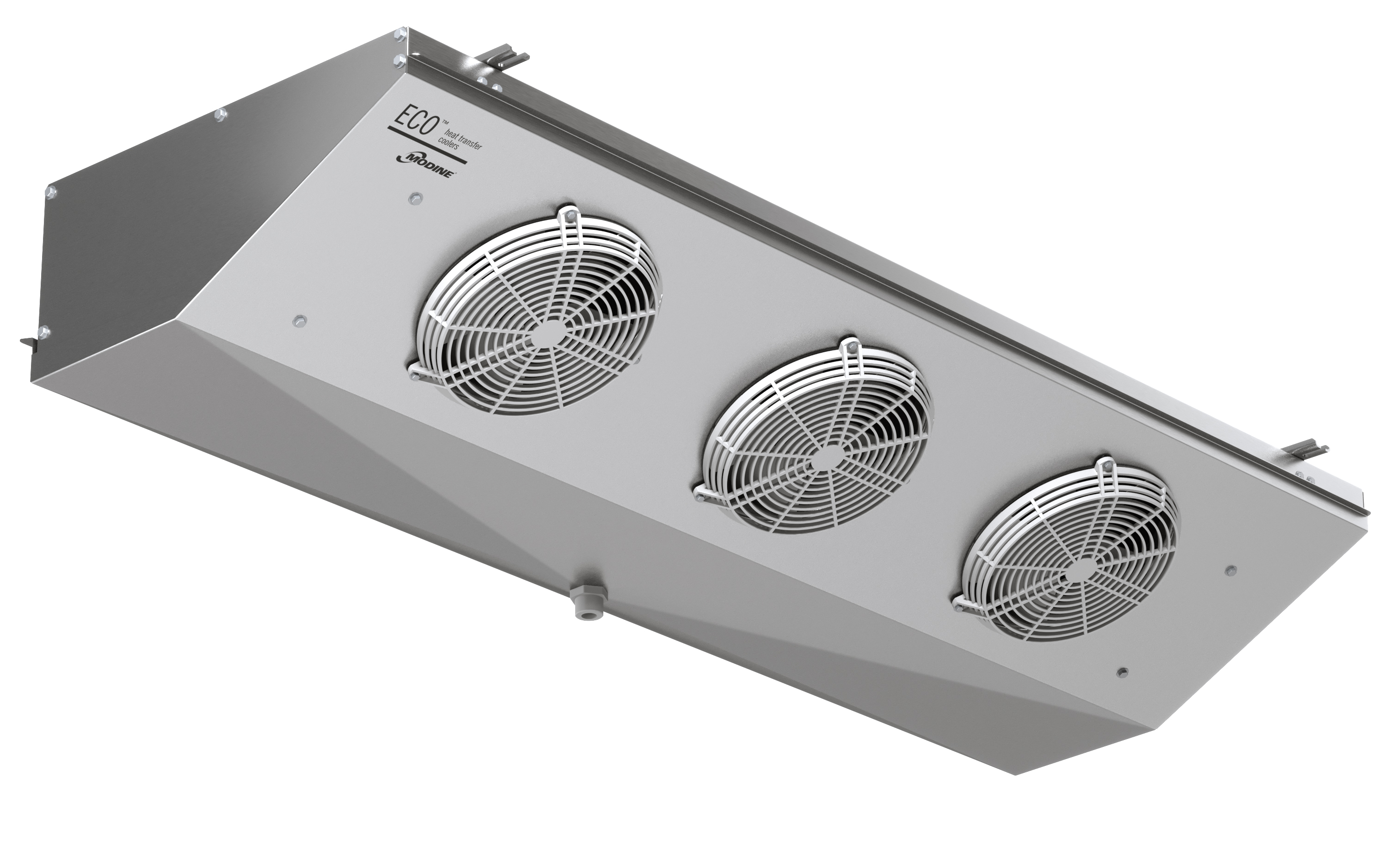

- fan motor module: from 1 to 4
- single-phase 230V/1/50-60Hz
- fibreglass charged polyamide fan guards
Ø 250 mm
- fan motor module: from 1 to 4
- shaded pole
- single-phase 230V/1/50-60 Hz
- fibre- glass charged polyamide fan guards
Ø 315 mm
- fan motor module: from 1 to 4
- external rotor
- single phase 230V/1/50-60 Hz
- built-in electric capacitor
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 200 mm
- fan motor module: from 1 to 4
- single-phase 230V/1/50-60Hz
- fibreglass charged polyamide fan guards
Ø 250 mm
- fan motor module: from 1 to 4
- single-phase 230V/1/50-60 Hz
- fibrerglass charged polyamide fan guards
Ø 315 mm
- fan motor module: from 1 to 4
- external rotor single-phase 230V/1/50-60Hz
- epoxy coated steel fan guard
The standard AC fan motors employed have the following features:
Ø 200 mm
- fan motor module: from 1 to 4
- single-phase 230V/1/50-60Hz
- fibreglass charged polyamide fan guards
Ø 250 mm
- fan motor module: from 1 to 4
- shaded pole
- single-phase 230V/1/50-60 Hz
- fibre- glass charged polyamide fan guards
Ø 315 mm
- fan motor module: from 1 to 4
- external rotor
- single phase 230V/1/50-60 Hz
- built-in electric capacitor
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 200 mm
- fan motor module: from 1 to 4
- single-phase 230V/1/50-60Hz
- fibreglass charged polyamide fan guards
Ø 250 mm
- fan motor module: from 1 to 4
- single-phase 230V/1/50-60 Hz
- fibrerglass charged polyamide fan guards
Ø 315 mm
- fan motor module: from 1 to 4
- external rotor single-phase 230V/1/50-60Hz
- epoxy coated steel fan guard
Defrost
Wiring
- The electric parts and casing are connected to an earth terminal.
- The wiring of motors and heaters is carried out in separate IP 54 protection grade junction boxes (contact us to check the availability).
Certifications
- CE
- PED
Published data
- Nominal capacity assessed in practical operating ambient, i.e. in wet conditions, in direct expansion application.
- CGS H3 - H4: CO2 refrigerant; air inlet temperature 4 °C; evaporating temperature –4 °C; TD 8 K.
- CGS L4 - L7: CO2 refrigerant; air inlet temperature –18 °C; evaporating temperature –25 °C; TD 7 K.
- Nominal capacity assessed in practical operating ambient, i.e. in wet conditions, in direct expansion application.
- CGS H3 - H4: CO2 refrigerant; air inlet temperature 4 °C; evaporating temperature –4 °C; TD 8 K.
- CGS L4 - L7: CO2 refrigerant; air inlet temperature –18 °C; evaporating temperature –25 °C; TD 7 K.
