overview

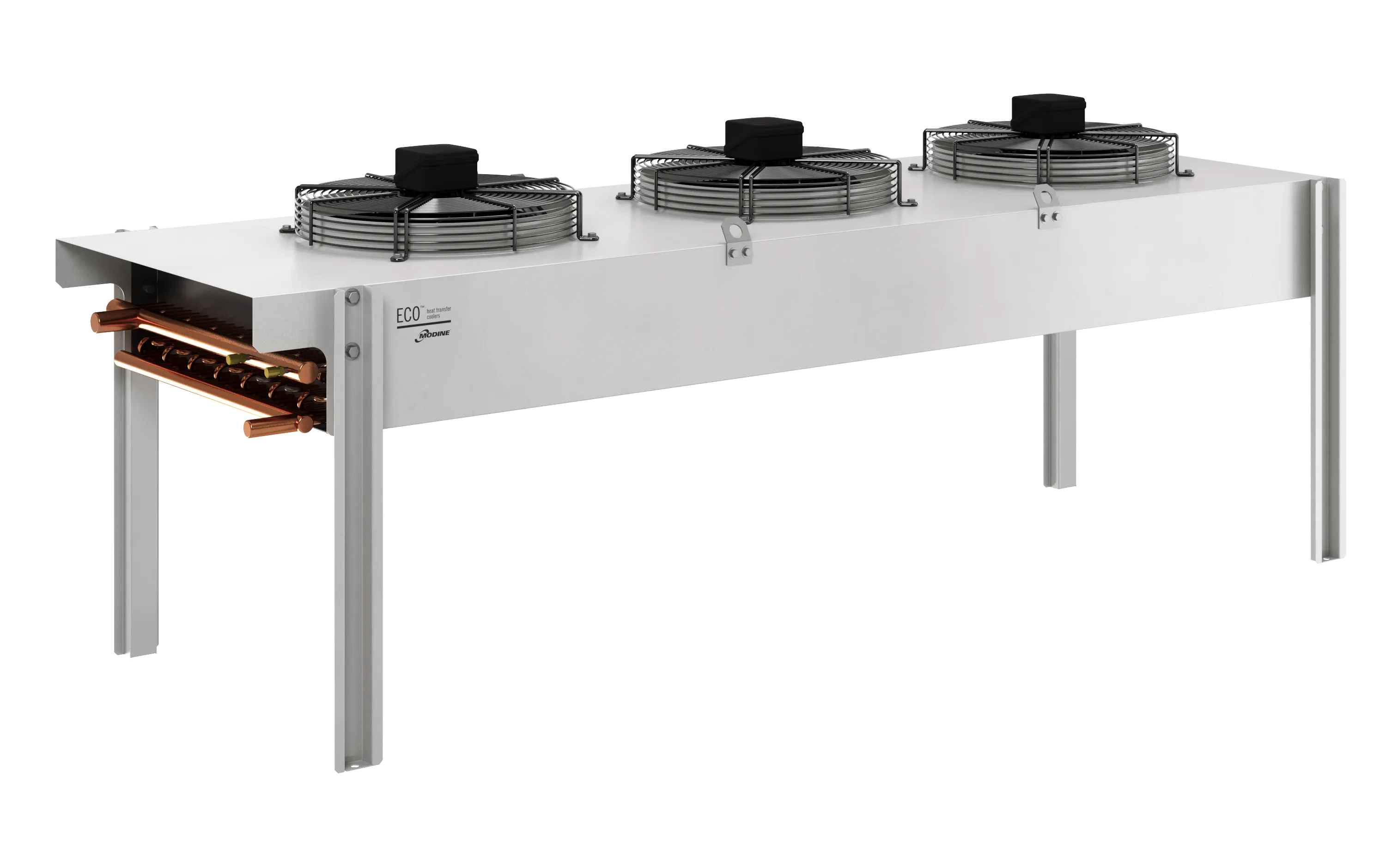

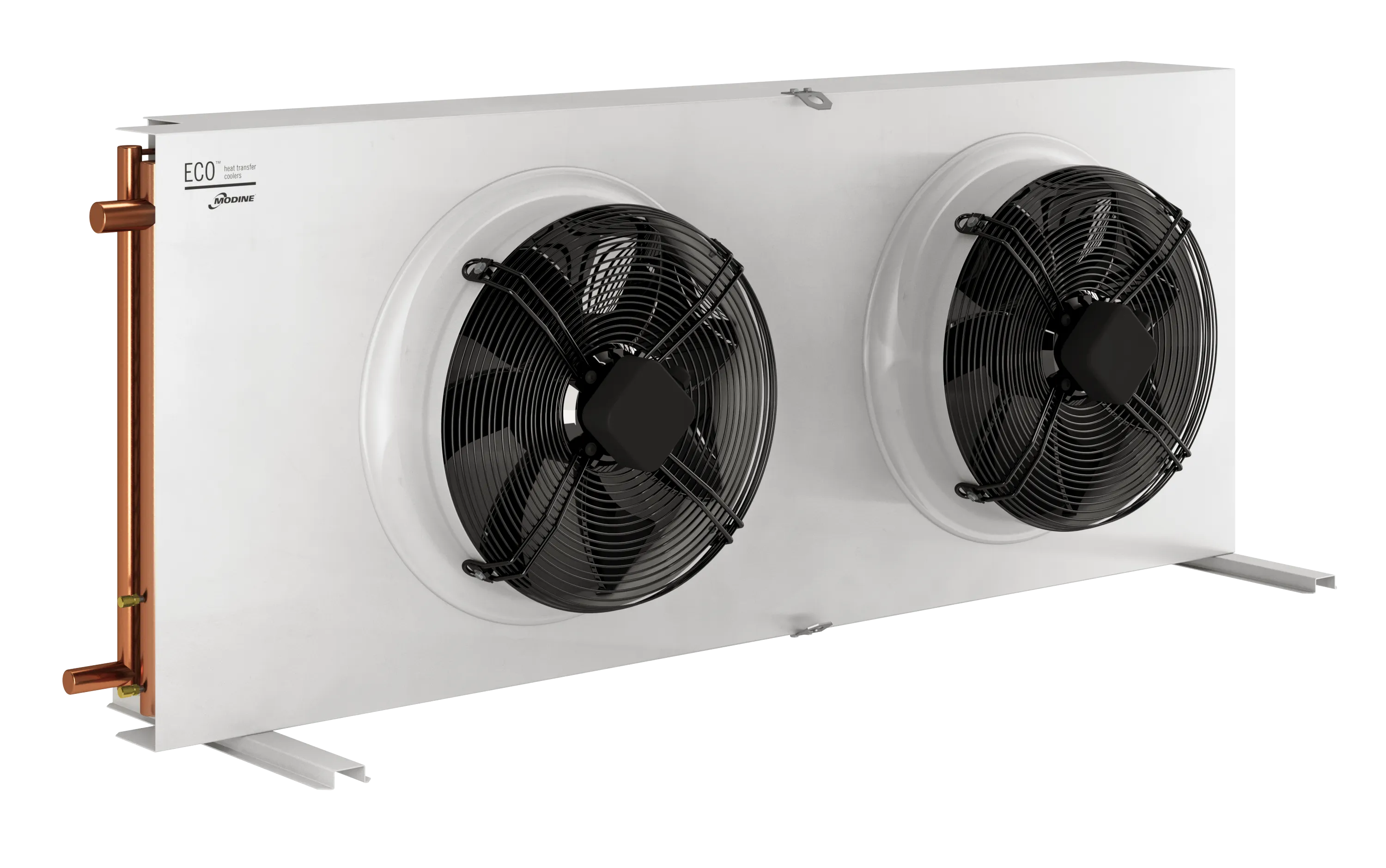

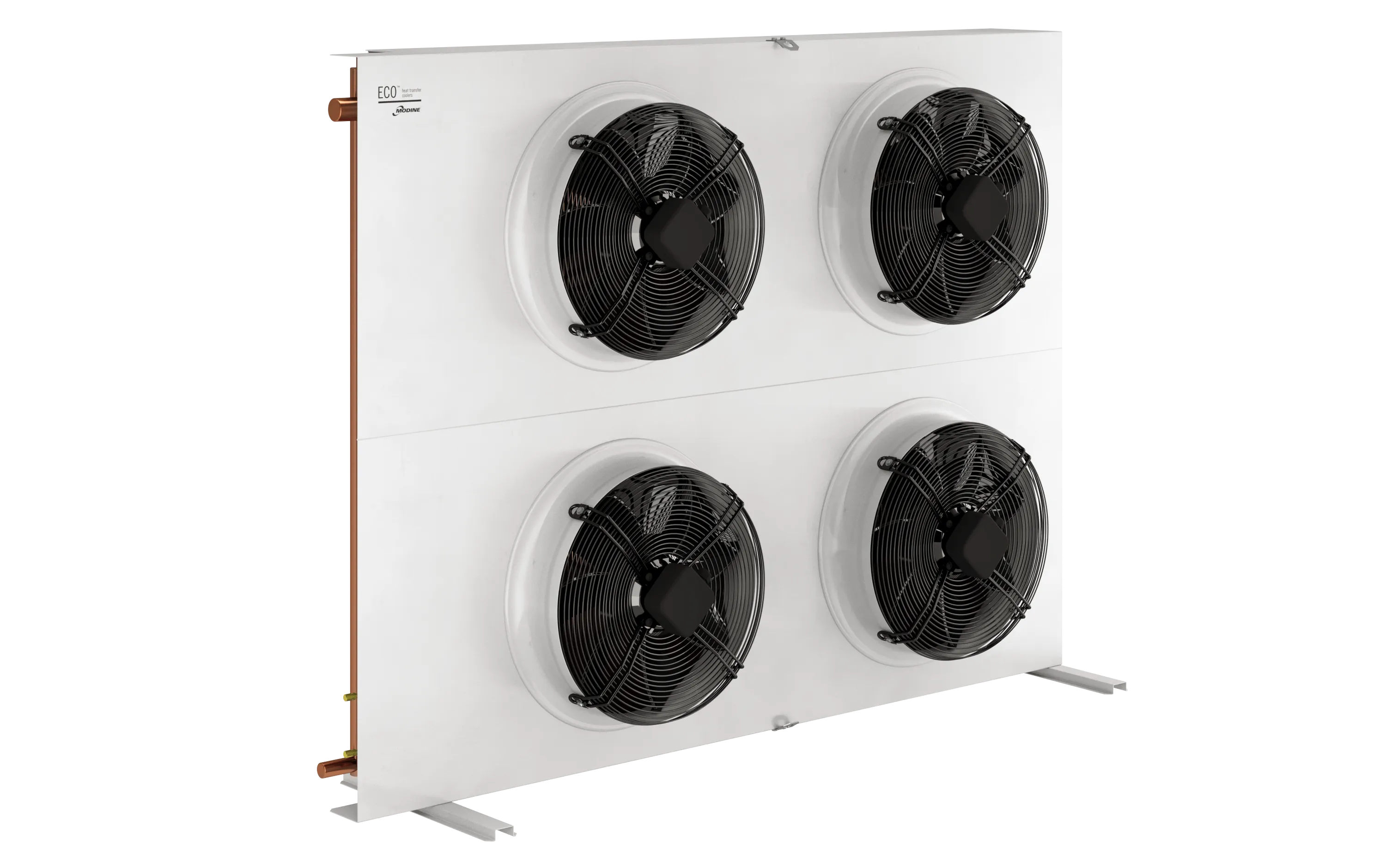

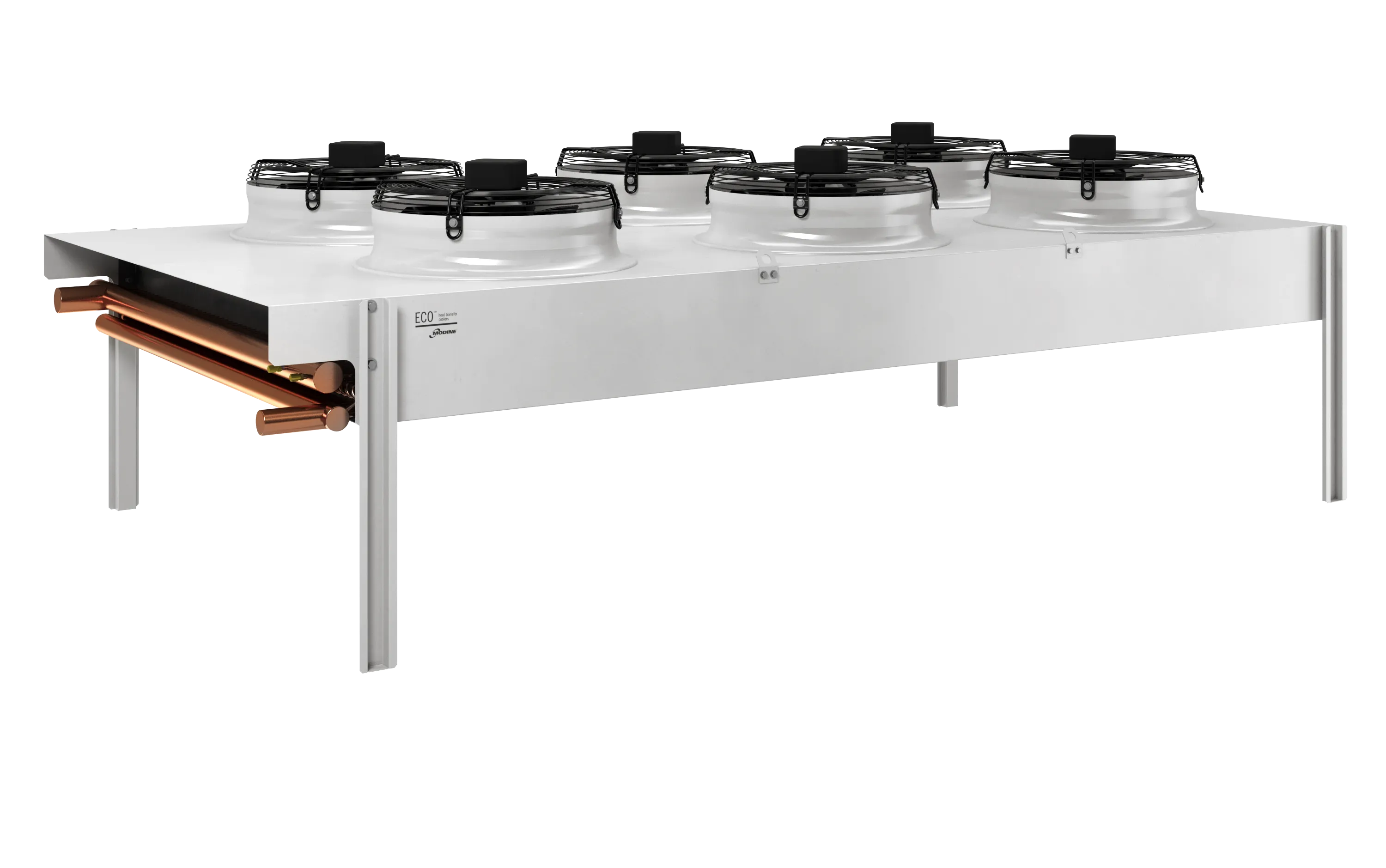

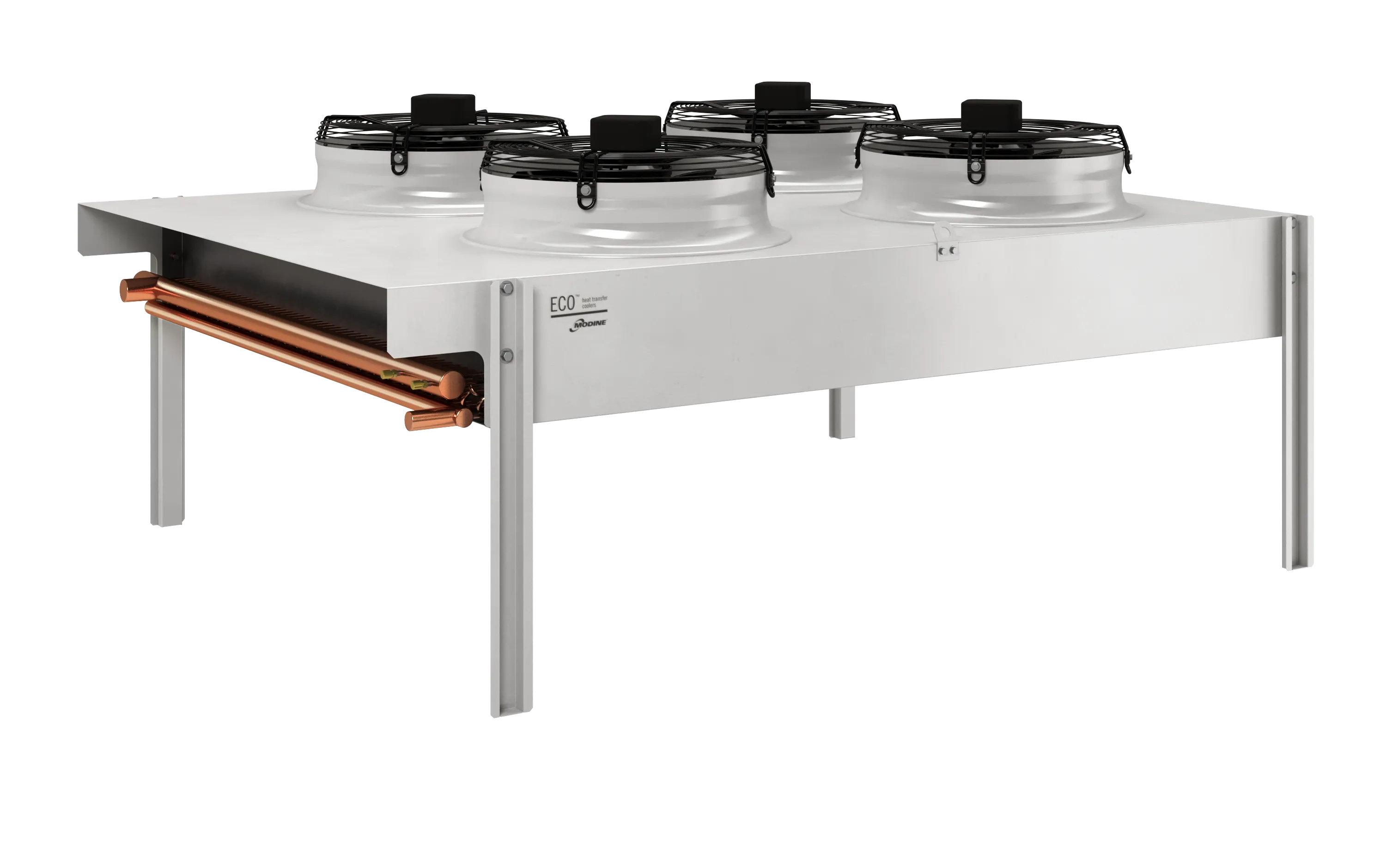

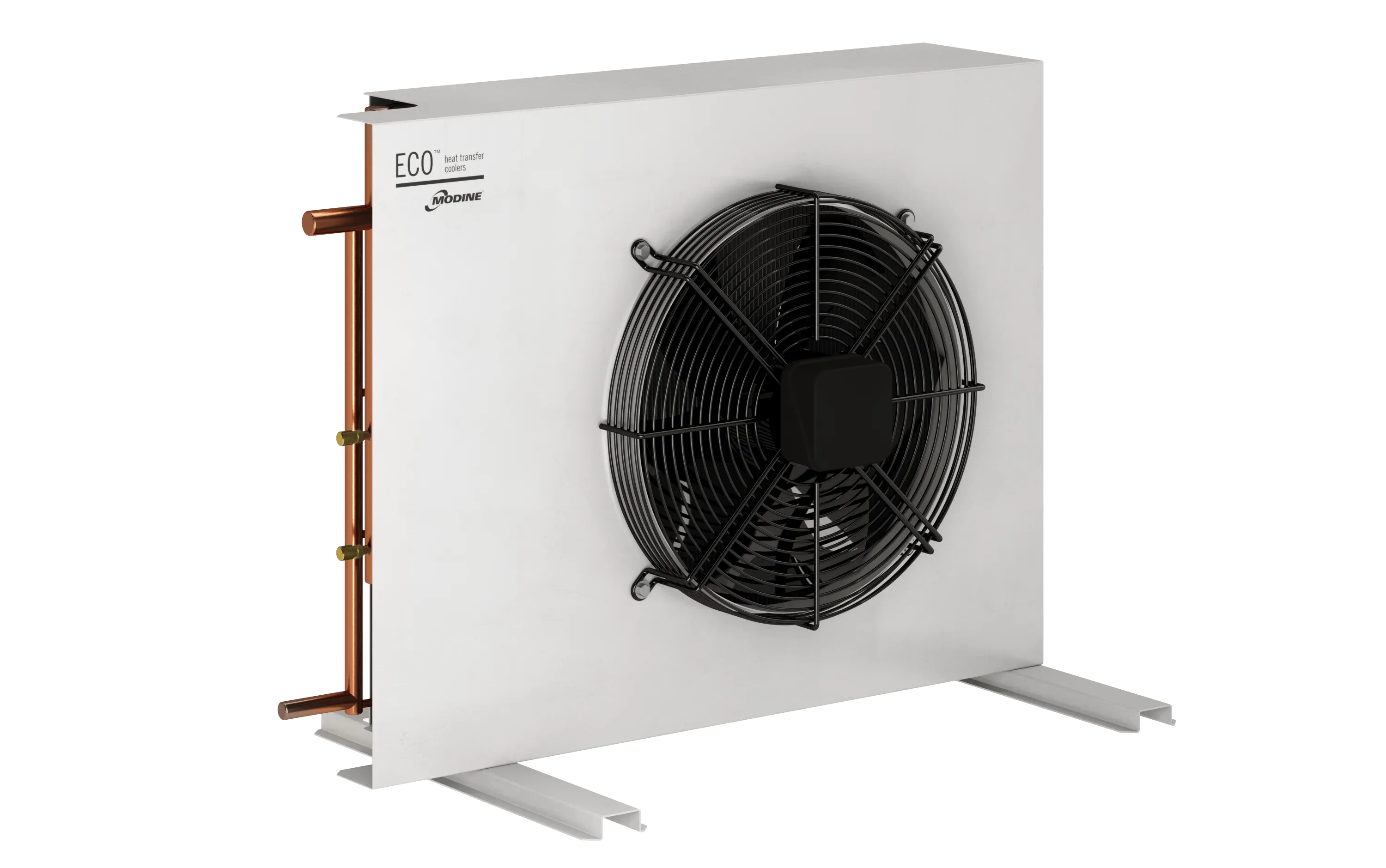

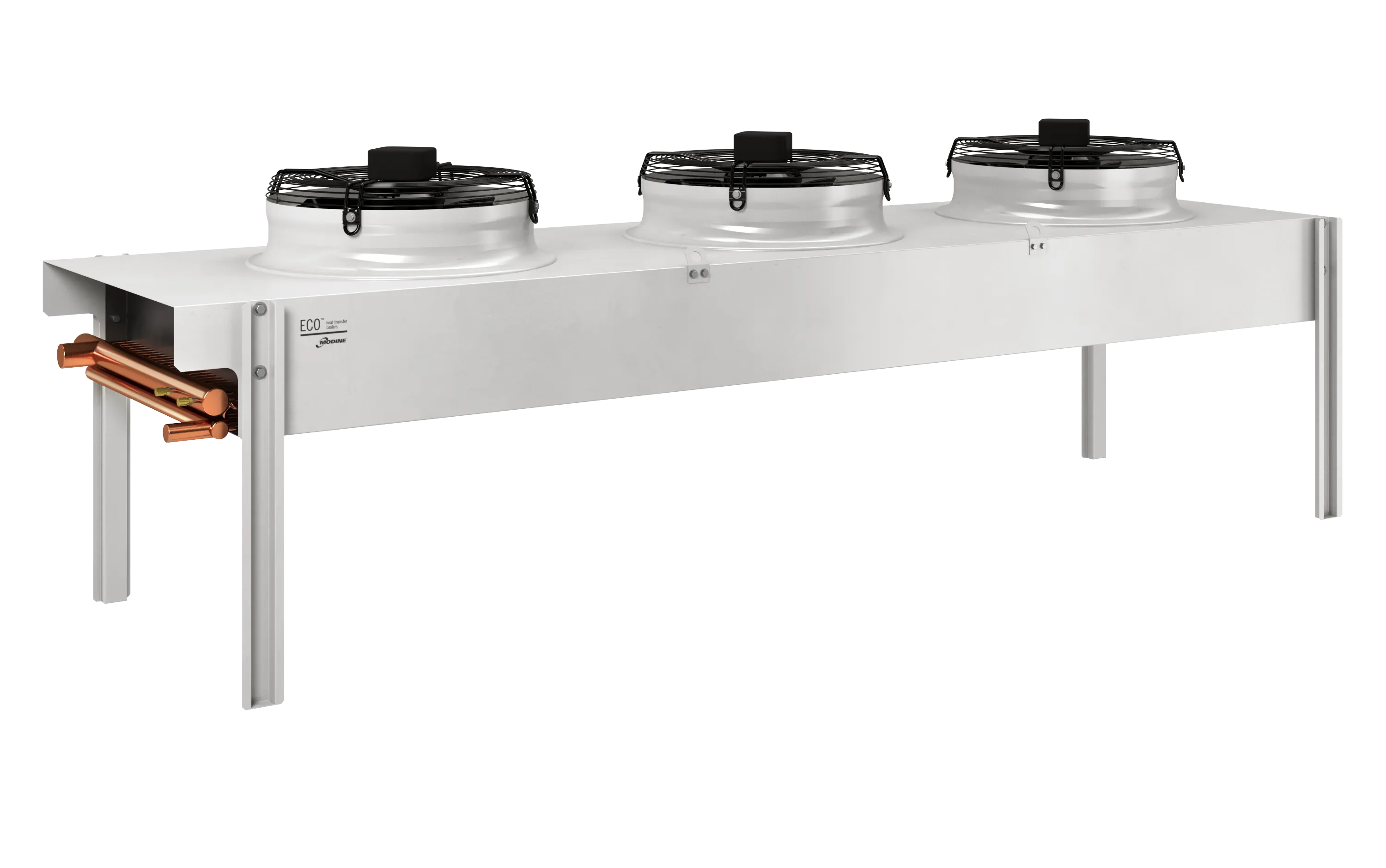

The TKE models can be used indifferently in the horizontal air flow version (H – with standard support brackets) or in the vertical air flow version (V – a kit with required legs is supplied upon request).
On request the models can be equipped with non-standard coils and fan motors.
Range consist of 69 customizable models.
The TKE models can be used indifferently in the horizontal air flow version (H – with standard support brackets) or in the vertical air flow version (V – a kit with required legs is supplied upon request).
On request the models can be equipped with non-standard coils and fan motors.
Range consist of 50 customizable models.
The TKE models can be used indifferently in the horizontal air flow version (H – with standard support brackets) or in the vertical air flow version (V – a kit with required legs is supplied upon request).
On request the models can be equipped with non-standard coils and fan motors.
applications
- Commercial AC
- Refrigeration systems
- Close control
- Precision air conditioning
- Data centers
- Commercial AC
- Refrigeration systems
- Close control
- Precision air conditioning
- Data centers
- Commercial AC
- Refrigeration systems
- Close control
- Precision air conditioning
- Data centers
capacity range
From 3,6 to 115 kW
From 3,6 to 115 kW
Please contact us
Technical Information
Coil features
- The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable new generation refrigerants.
- They are supplied charged with dry air at 2 bars and the fin spacing is 2,1 mm for the entire range.
- The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable new generation refrigerants.
- They are supplied charged with dry air at 2 bars and the fin spacing is 2,1 mm for the entire range.
- The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable new generation refrigerants.
- They are supplied charged with dry air at 2 bars and the fin spacing is 2,1 mm for the entire range.
Casing
- Casing Features Made of a pre-painted galvanised metal sheet, with a smooth finish covered by a plastic protection film.
Fan motors
The standard AC fan motors employed have the following features:
Ø 350 mm
- fan motor module: from 1 to 4
- external rotor
- single-phase 230V/1/50-60Hz
- built-in electric capacitor
- epoxy coated steel fan guard
- available with 4 and 6 poles
Ø 450 mm
- fan motor module: from 1 to 6
- external rotor
- single-phase 230V/1/50-60Hz
- built-in electric capacitor
- epoxy coated steel fan guard
- (EMEA only) available with 4, 6 and 8 poles
- (APAC only) available with 4 and 6 poles
The optional highly efficient EC fan motors have the following features:
- IP 54 protection grade;
- class B insulation;
- built-in electronic protection;
- speed regulator with 0-10V signal;
- Min / max operating temperature
–25/60 °C.
The standard AC fan motors employed have the following features:
Ø 350 mm
- fan motor module: from 1 to 4
- external rotor
- single-phase 230V/1/50-60Hz
- built-in electric capacitor
- epoxy coated steel fan guard
- available with 4 and 6 poles
Ø 450 mm
- fan motor module: from 1 to 6
- external rotor
- single-phase 230V/1/50-60Hz
- built-in electric capacitor
- epoxy coated steel fan guard
- available with 4, 6 and 8 poles
The optional highly efficient EC fan motors have the following features:
- IP 54 protection grade;
- class B insulation;
- built-in electronic protection;
- speed regulator with 0-10V signal;
- Min / max operating temperature
–25/60 °C.
The standard AC fan motors employed have the following features:
Ø 350 mm
- fan motor module: from 1 to 4
- external rotor
- single-phase 230V/1/50-60Hz
- built-in electric capacitor
- epoxy coated steel fan guard
- available with 4 and 6 poles
Ø 450 mm
- fan motor module: from 1 to 6
- external rotor
- single-phase 230V/1/50-60Hz
- built-in electric capacitor
- epoxy coated steel fan guard
- available with 4 and 6 poles
The optional highly efficient EC fan motors have the following features:
- IP 54 protection grade;
- class B insulation;
- built-in electronic protection;
- speed regulator with 0-10V signal;
- Min / max operating temperature: –25/60 °C.
Wiring
- The fan motors and the casework are predisposed for grounding.
Certifications
- CE
- PED
Published data
- EN 327 reference standard.
- (EMEA) The stated capacity is assessed based on ambient temperature 25 °C and condensing temperature 40 °C with R448A (mid-point).
- (APAC) The stated capacity is assessed based on ambient temperature 25 °C; and condensing temperature 40 °C with R404A.
- EN 327 reference standard.
- The stated capacity is assessed based on ambient temperature 25 °C and condensing temperature 40 °C with R448A (mid-point).
- EN 327 reference standard.
- (APAC) The stated capacity is assessed based on ambient temperature 25 °C; and condensing temperature 40 °C with R404A.
