MIC-W

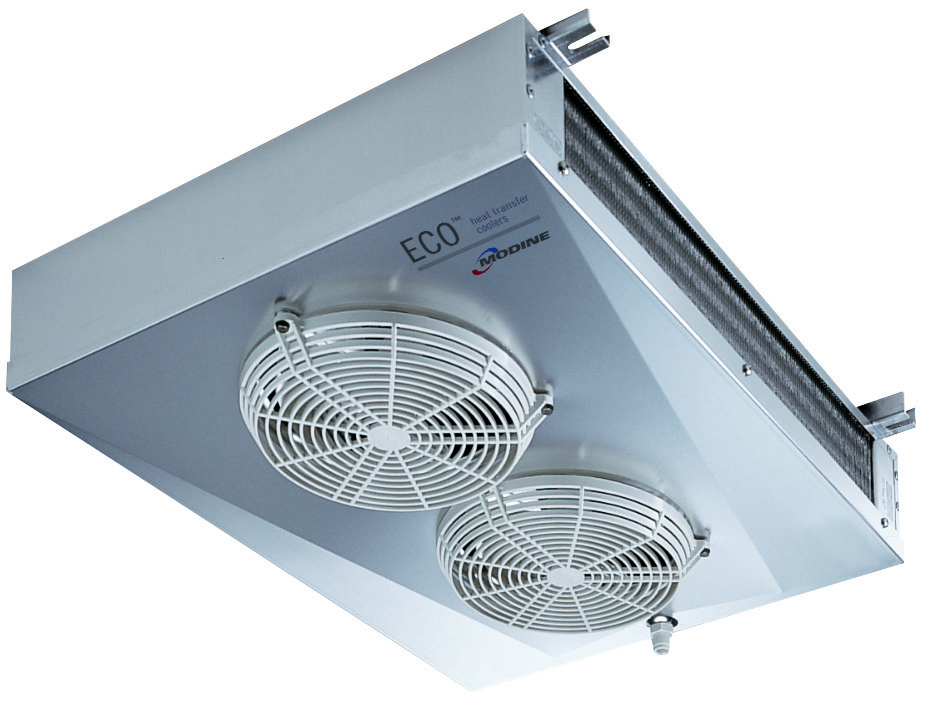

MIC

Applications

  • Reach-in cabinets
  • Small cold rooms
  • Walk-in cabinets
  • Low ceiling commercial refrigeration cold rooms
  • Food processing rooms (fresh and sensitive products, sea food, meat)

Capacity Range

Unit coolers: from 0,55 to 3,98 kW

Brine coolers: please use Scelte selection software

MIC-W Specifications

Overview

Range consists of 8 customizable models.

On request, the models can be equipped with non-standard: coils, defrosting, and fan motors.

Coil Features
The entire range is equipped with high efficiency coils made from special profile aluminium fins and smooth copper tube, optimized for brine pump circulation.
Casing
Casing Features Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film
Fan Motors
The standard AC fan motors employed have the following features:
  • Ø 230 mm
  • ffan motor module: from 1 to 5
  • single-phase 230V/1/50-60 Hz
  • fibreglass charged polyamide fan guard

The optional high efficiency EC fan motors have the following features:
  • Ø 230 mm
  • fan motor module: the same as AC fan motors
  • single-phase 230V/1/50-60Hz
  • fibreglass charged polyamide fan guard
Defrost
The versions with standard electric defrost (ED) are equipped with stainless steel heaters with vulcanised terminals preset for 230V/1/50-60Hz connection
Wiring
The electric parts and casing are connected to a earth terminal. The wiring of the motors and heaters is carried out in separate IP 54 protection grade junction boxes.
Certifications
  • CE
  • PED
