overview

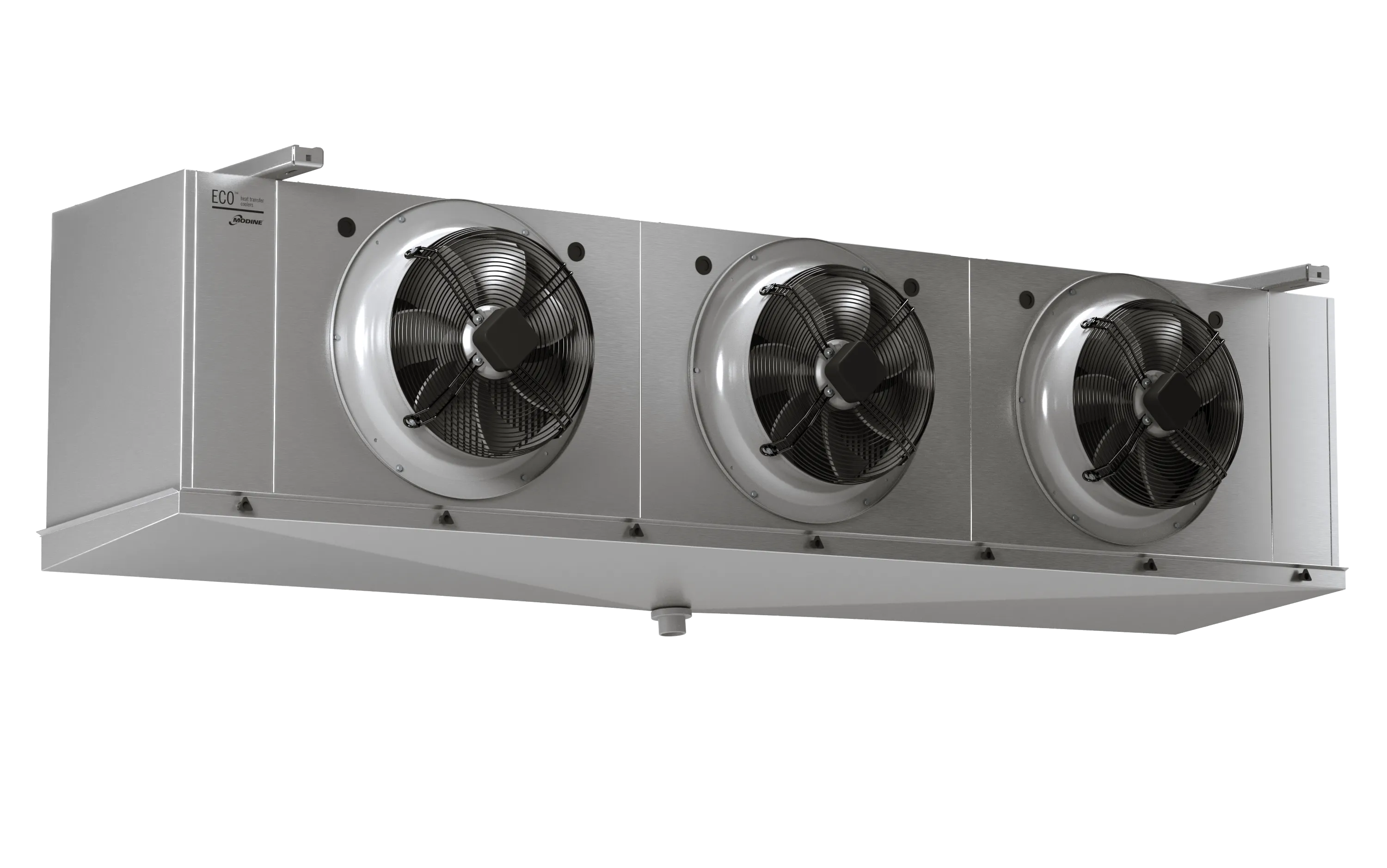

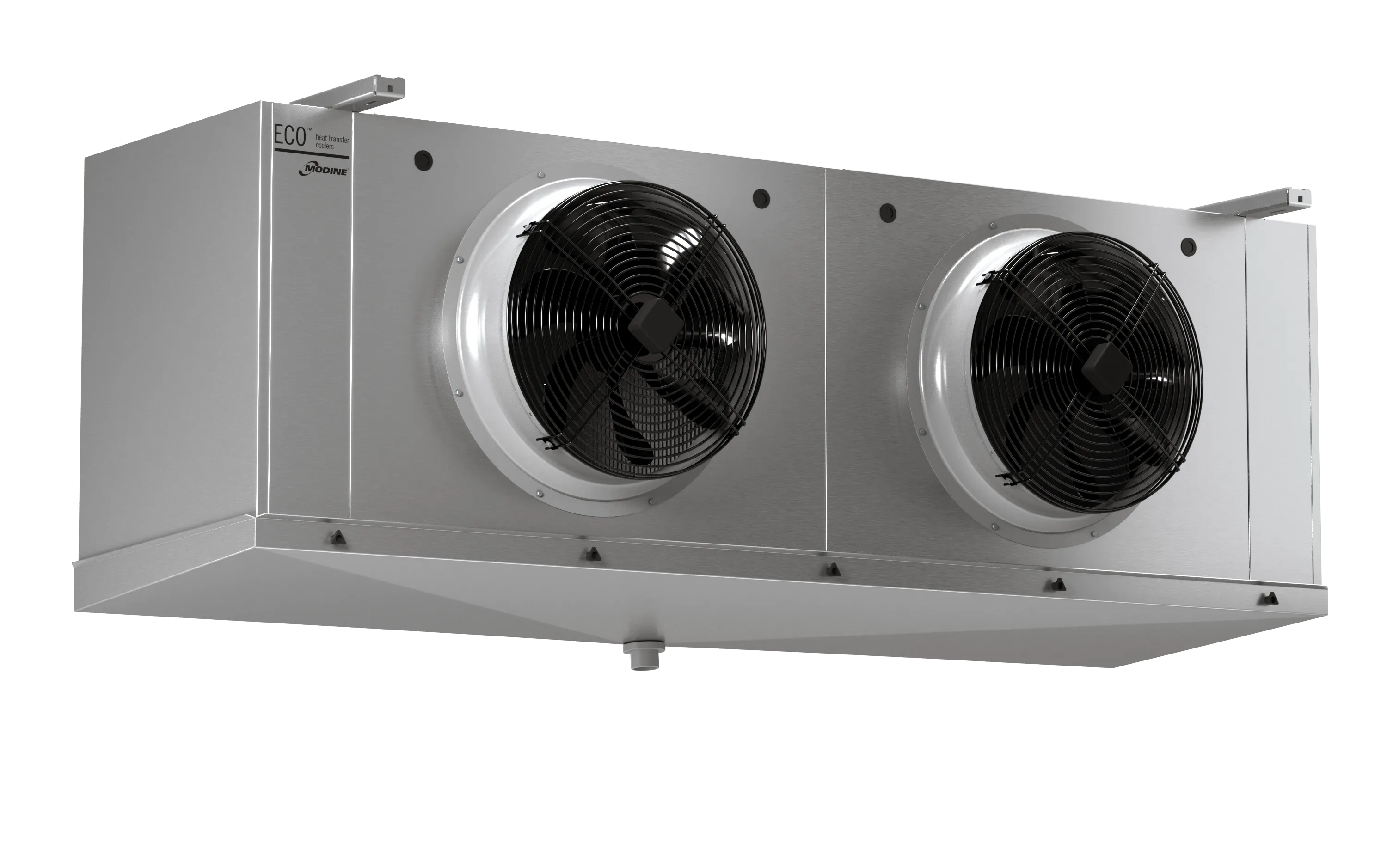

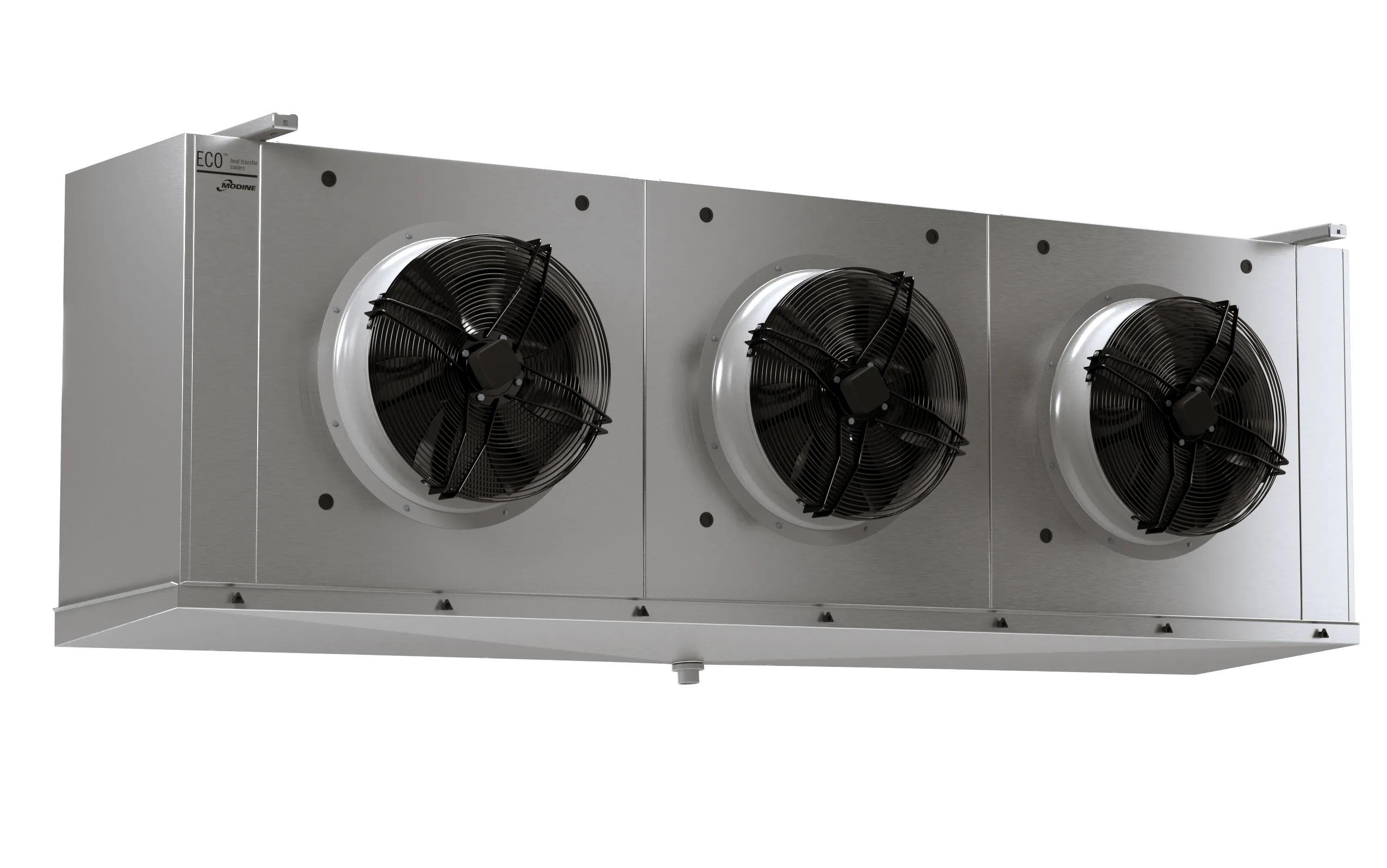

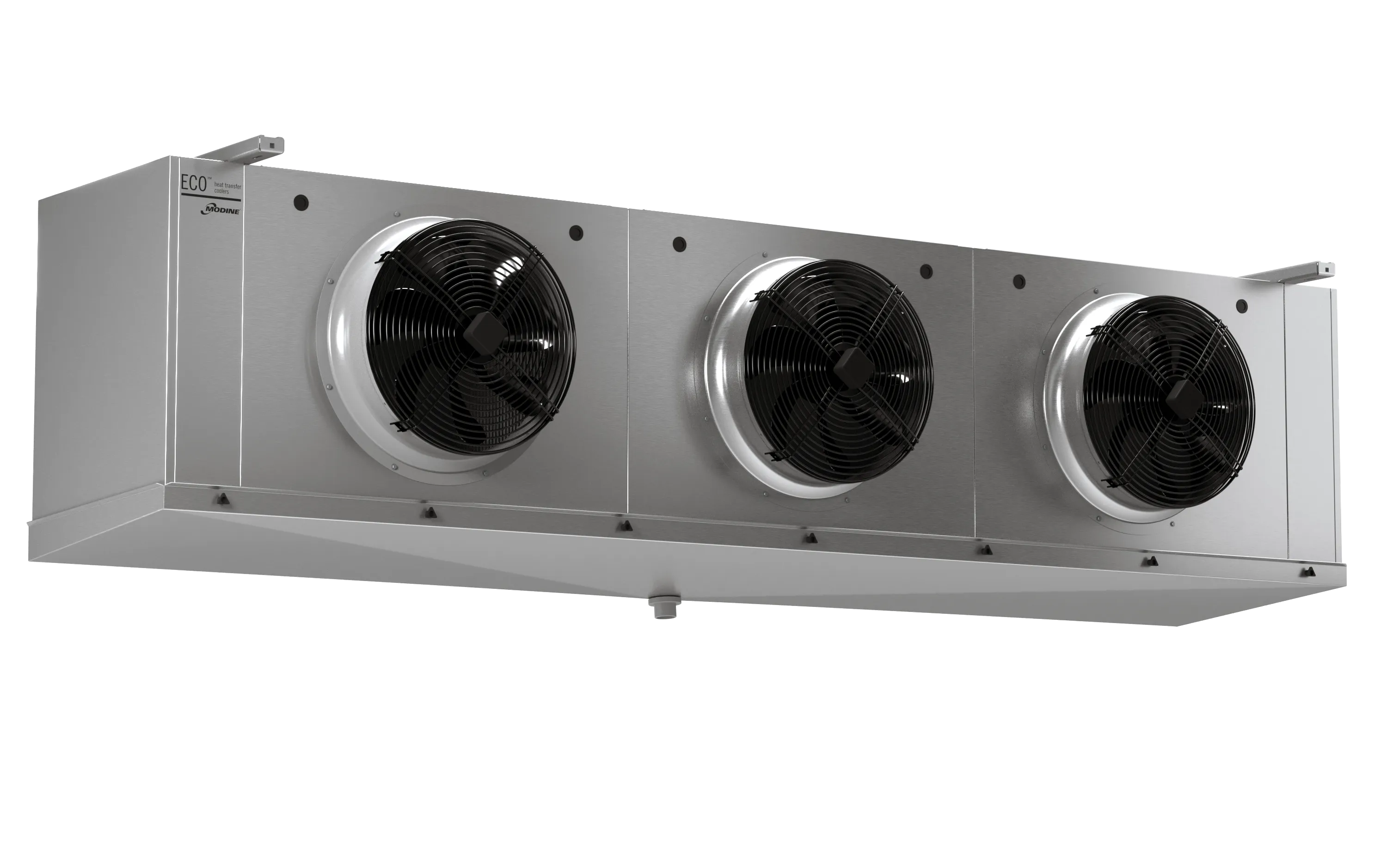

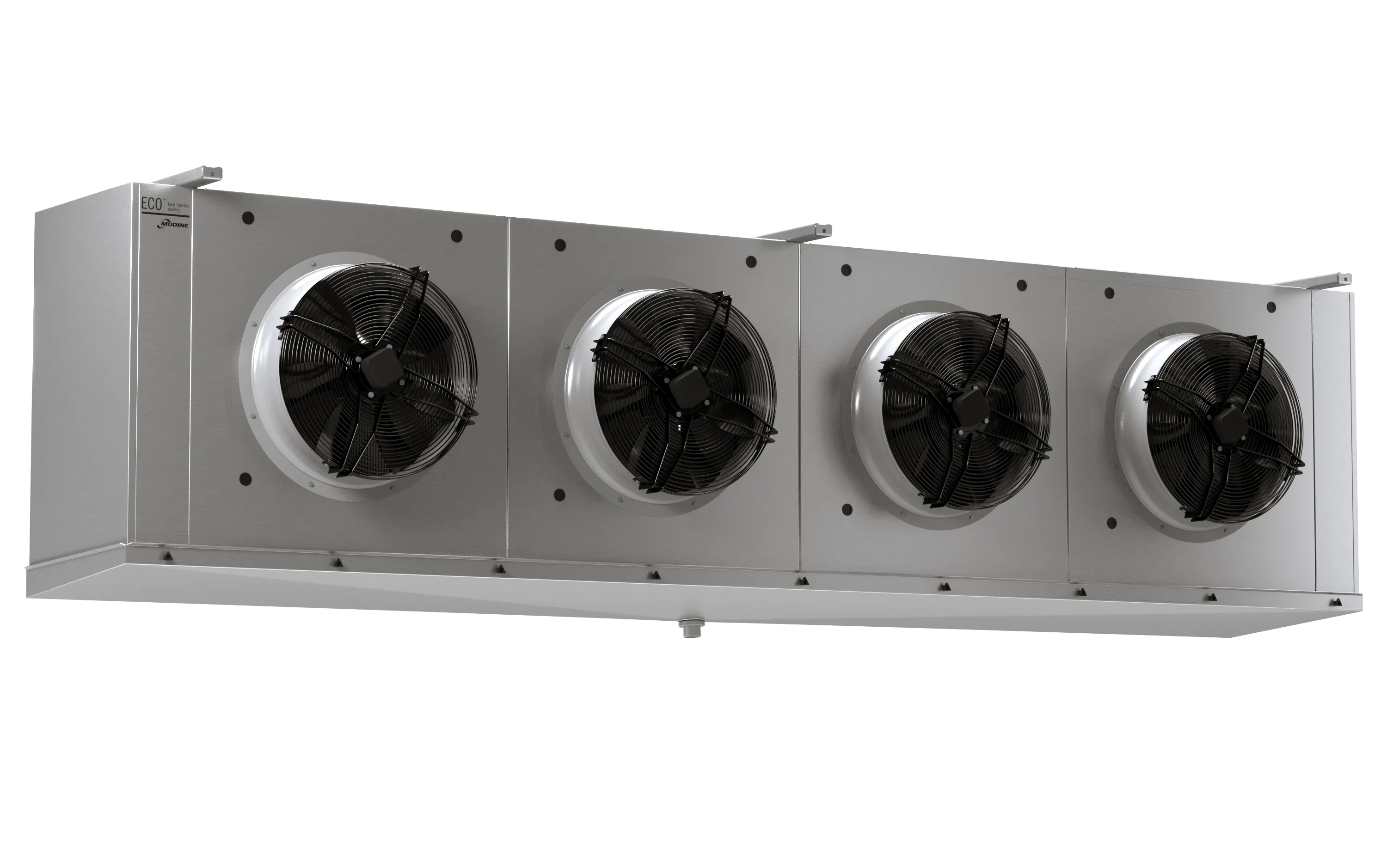

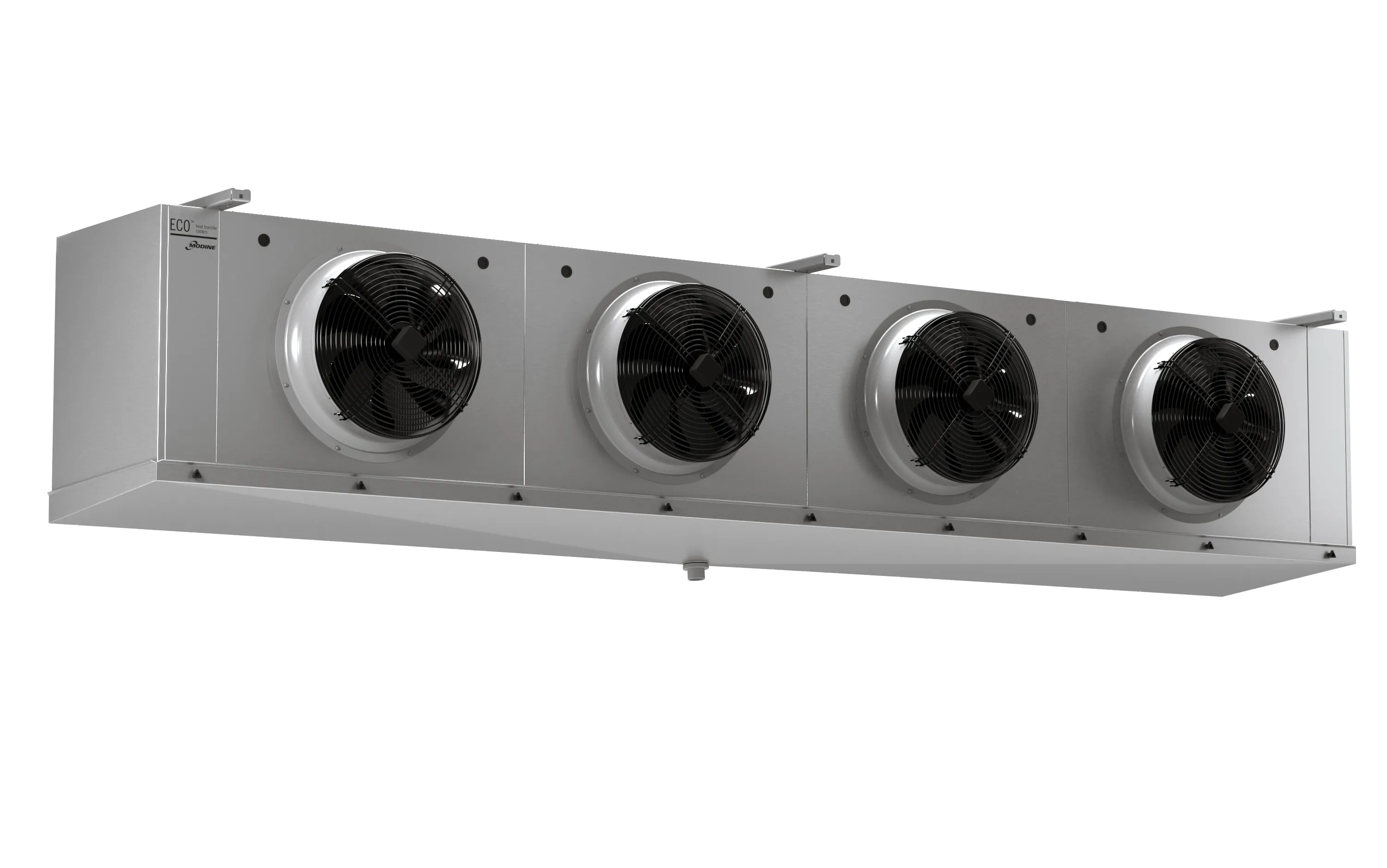

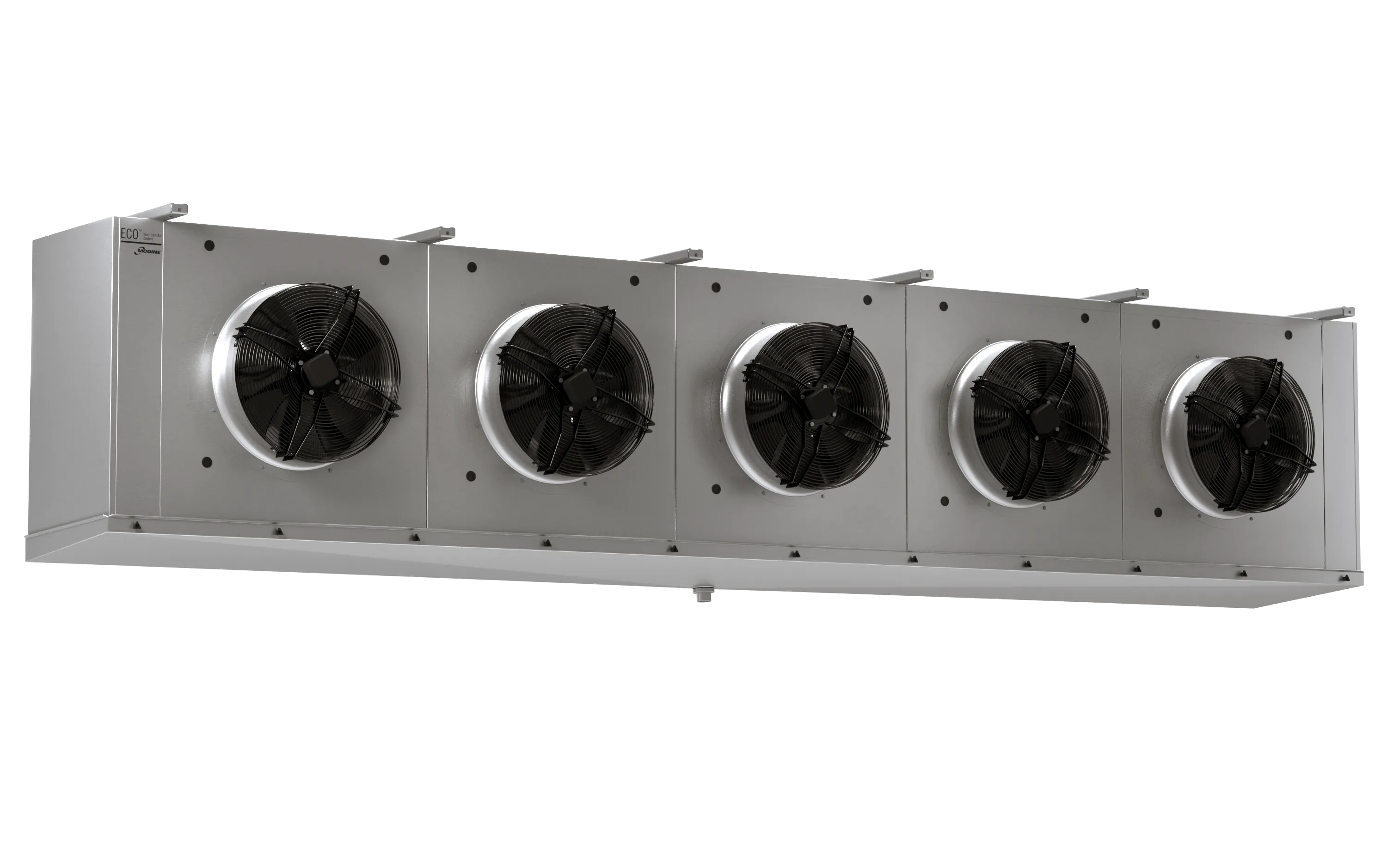

Range consists of 104 customizable models.
In accordance to the room temperature, the range is divided as follows:
- ICE 06 for higher and medium temperatures (≥ –15°C) with 6 mm fin spacing;
- ICE 08 – 10 – 12 for lower temperatures (≥ –35°C) with 8, 10 and 12 mm fin spacing (electric defrost recommended).
On request, the models can be equipped with non-standard coils, defrosting, and fan motors.
Range consists of 104 customizable models.
In accordance to the room temperature, the range is divided as follows:
- ICE 06 for higher and medium temperatures (≥ –15°C) with 6 mm fin spacing;
- ICE 08 – 10 – 12 for lower temperatures (≥ –35°C) with 8, 10 and 12 mm fin spacing (electric defrost recommended).
On request, the models can be equipped with non-standard coils, defrosting, and fan motors.
Range consists of 104 customizable models.
In accordance to the room temperature, the range is divided as follows:
- ICE 06 for higher and medium temperatures (≥ –15°C) with 6 mm fin spacing;
- ICE 08 – 10 – 12 for lower temperatures (≥ –35°C) with 8, 10 and 12 mm fin spacing (electric defrost recommended).
On request, the models can be equipped with non-standard coils, defrosting, and fan motors.
applications
- Large refrigeration cold rooms
- Refrigerated warehouses
- Large refrigeration cold rooms
- Refrigerated warehouses
- Large refrigeration cold rooms
- Refrigerated warehouses
capacity range
From 6,84 to 171 kW
From 7 to 150 kW
From 6,84 to 171 kW
Technical Information
Coil features
- The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable for new generation refrigerants.
- The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable for new generation refrigerants.
- The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable for new generation refrigerants.
Casing
- Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film.
Fan motors
Dual speed fan motors diameter: 450, 560, 630 mm
The standard AC fan motors employed have the following features:
Ø 450 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50-60 Hz
- dual speed
- epoxy coated steel fan guard
Ø 560 mm
- fan motor module: from 2 to 4
- external rotor
- three-phase 400V/3/50 Hz
- dual speed
- epoxy coated steel fan guard
Ø 630 mm
- fan motor module: from 2 to 5
- external rotor
- three-phase 400V/3/50-60 Hz
- dual speed
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 450 mm
- fan motor module: from 1 to 4
- external rotor
- single-phase power supply 230V/1/50-60 Hz
- dual speed
- epoxy coated steel fan guard
Ø 560 mm
- fan motor module: from 2 to 4
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Ø 630 mm
- fan motor module: from 2 to 5
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
The standard AC fan motors employed have the following features:
Ø 450 mm
- fan motor module: from 1 to 4
- external rotor
- three-phase 400V/3/50-60 Hz
- dual speed
- epoxy coated steel fan guard
Ø 560 mm
- fan motor module: from 2 to 4
- external rotor
- three-phase 400V/3/50 Hz
- dual speed
- epoxy coated steel fan guard
Ø 630 mm
- fan motor module: from 2 to 5
- external rotor
- three-phase 400V/3/50-60 Hz
- dual speed
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 450 mm
- fan motor module: from 1 to 4
- external rotor
- single-phase power supply 230V/1/50-60 Hz
- dual speed
- epoxy coated steel fan guard
Ø 560 mm
- fan motor module: from 2 to 4
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Ø 630 mm
- fan motor module: from 2 to 5
- external rotor
- three-phase 400V/3/50 Hz
- epoxy coated steel fan guard
Defrost
Wiring
- The electric parts and casework are predisposed for grounding.
- The wiring of the heaters is carried out in separate IP 54 protection grade junction boxes.
Certifications
- CE
- PED
- SASO
- TÜV SÜD (Please see cerfified model list on the catalogue)
Published data
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- EMEA: R448A refrigerant (mid point).
- APAC: R404A refrigerant.
- Air inlet temperature 0 °C.
- Evaporating temperature –8 °C.
- TD 8 K.
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- R448A refrigerant (mid point).
- Air inlet temperature 0 °C.
- Evaporating temperature –8 °C.
- TD 8 K.
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- R404A refrigerant.
- Air inlet temperature 0 °C.
- Evaporating temperature –8 °C.
- TD 8 K.
