overview
The PAE range with a compartment has been specifically designed to satisfy all possible high quality air conditioning and refrigeration applications.
The models of this range are equipped with high efficiency shaped coils to increase its compactness.
Upon request models can be equipped with non- standard coils, fan motors and casework with special features.
The PAE range with a compartment has been specifically designed to satisfy all possible high quality air conditioning and refrigeration applications.
The models of this range are equipped with high efficiency shaped coils to increase its compactness.
Upon request models can be equipped with non- standard coils, fan motors and casework with special features.
applications
- Air conditioning
- Refrigeration systems
- Air conditioning
- Refrigeration systems
capacity range
From 100 to 500 kW
From 100 to 500 kW
Technical Information
Coil features
- The coils of this range are made of special “Air Intake” profile aluminum fins and inner grooved copper tubes, suitable for new generation refrigerants.
- They are supplied charged with dry air at a pressure of 2 bars.
- The fin spacing is 2,1 mm for the entire range.
- Design pressure: up to 130 bar.
- The coils of this range are made of special “Air Intake” profile aluminum fins and inner grooved copper tubes, suitable for new generation refrigerants.
- They are supplied charged with dry air at a pressure of 2 bars.
- The fin spacing is 2,1 mm for the entire range.
- Design pressure: up to 130 bar.
Casing
- Made of a pre-painted galvanised metal sheet, with a smooth finish covered by a plastic protection film.

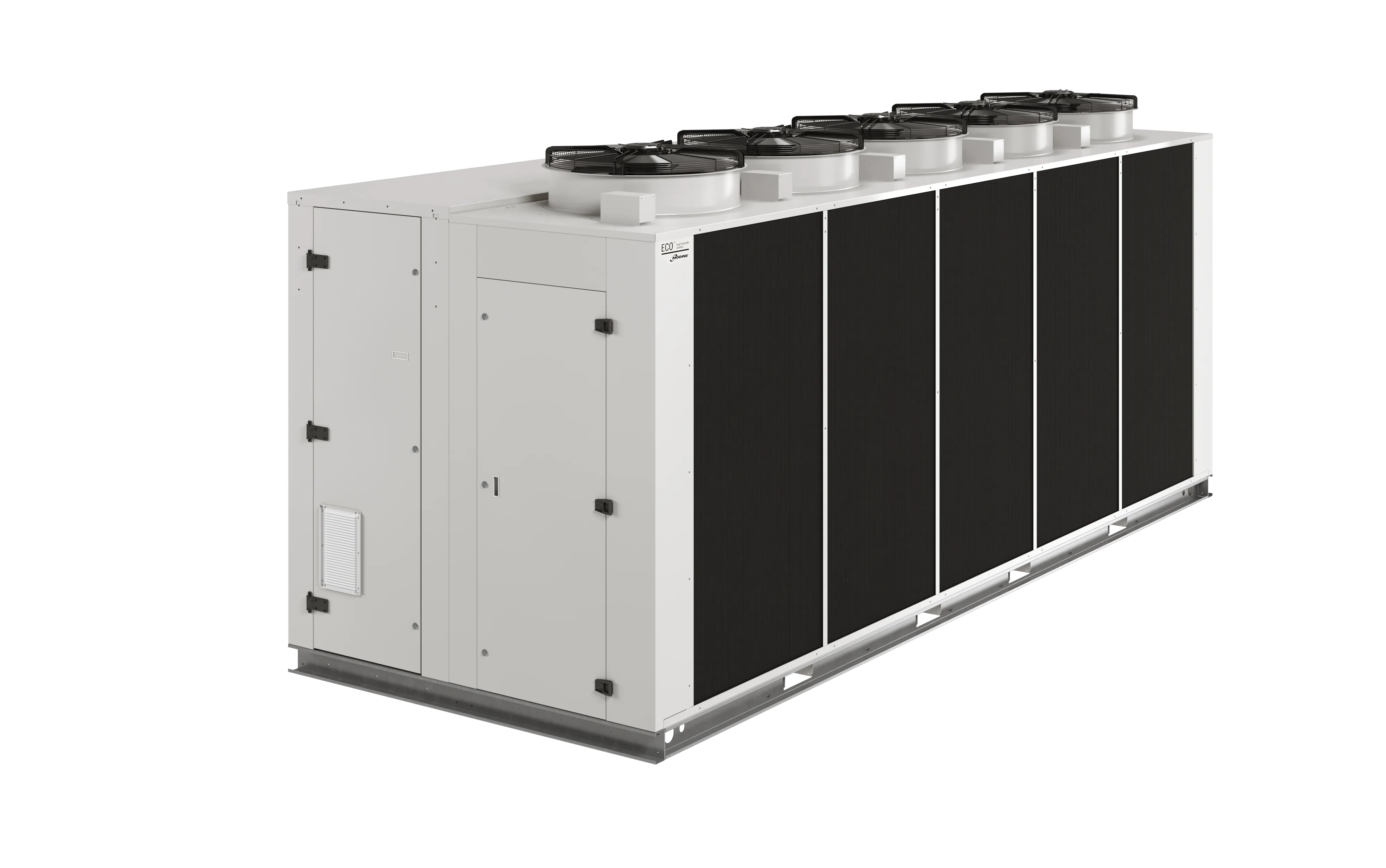

- The models have a special compartment designed to accommodate the compressor (not supplied) with a reinforced base and support platform, hinged doors, removable panels and inner protected compartment for the positioning of possible electrical switchboards.
Fan motors
The axial fan motors employed on the entire range are the most technologically up-to-date on the market.
New solutions like the hybrid shaped blades or bionic technology are widely used.
These fan motors have a wide range of diameters and rotation speeds.
The standard AC fan motors employed have the following features:
Ø 800 mm
- poles: 6, 8 strengthened, 8; 12 (EC only), 12 slowed (EC only), 12 ultra-slowed
- fan motor module: from 1 to 4
Ø 910 mm
- poles: 6 strengthened, 6, 8, 12
- fan motor module: from 1 to 4
The optional high efficiency EC fan motors have the following features:
Ø 800 or 910 mm
- speed control with 0-10V signal
- additional speed regulator with MODBUS systeM
- operating temperature: –25 ÷ +60 °C
The axial fan motors employed on the entire range are the most technologically up-to-date on the market.
New solutions like the hybrid shaped blades or bionic technology are widely used.
These fan motors have a wide range of diameters and rotation speeds.
The standard AC fan motors employed have the following features:
Ø 800 mm
- poles: 6, 8 strengthened, 8; 12 (EC only), 12 slowed (EC only), 12 ultra-slowed
- fan motor module: from 1 to 4
Ø 910 mm
- poles: 6 strengthened, 6, 8, 12
- fan motor module: from 1 to 4
The optional high efficiency EC fan motors have the following features:
Ø 800 or 910 mm
- speed control with 0-10V signal
- additional speed regulator with MODBUS systeM
- operating temperature: –25 ÷ +60 °C
Wiring
- The fan motors and the casework are predisposed for grounding.
Certifications
- CE
- PED
