ECO-BATIC
CO2
This product is not available in region
overview

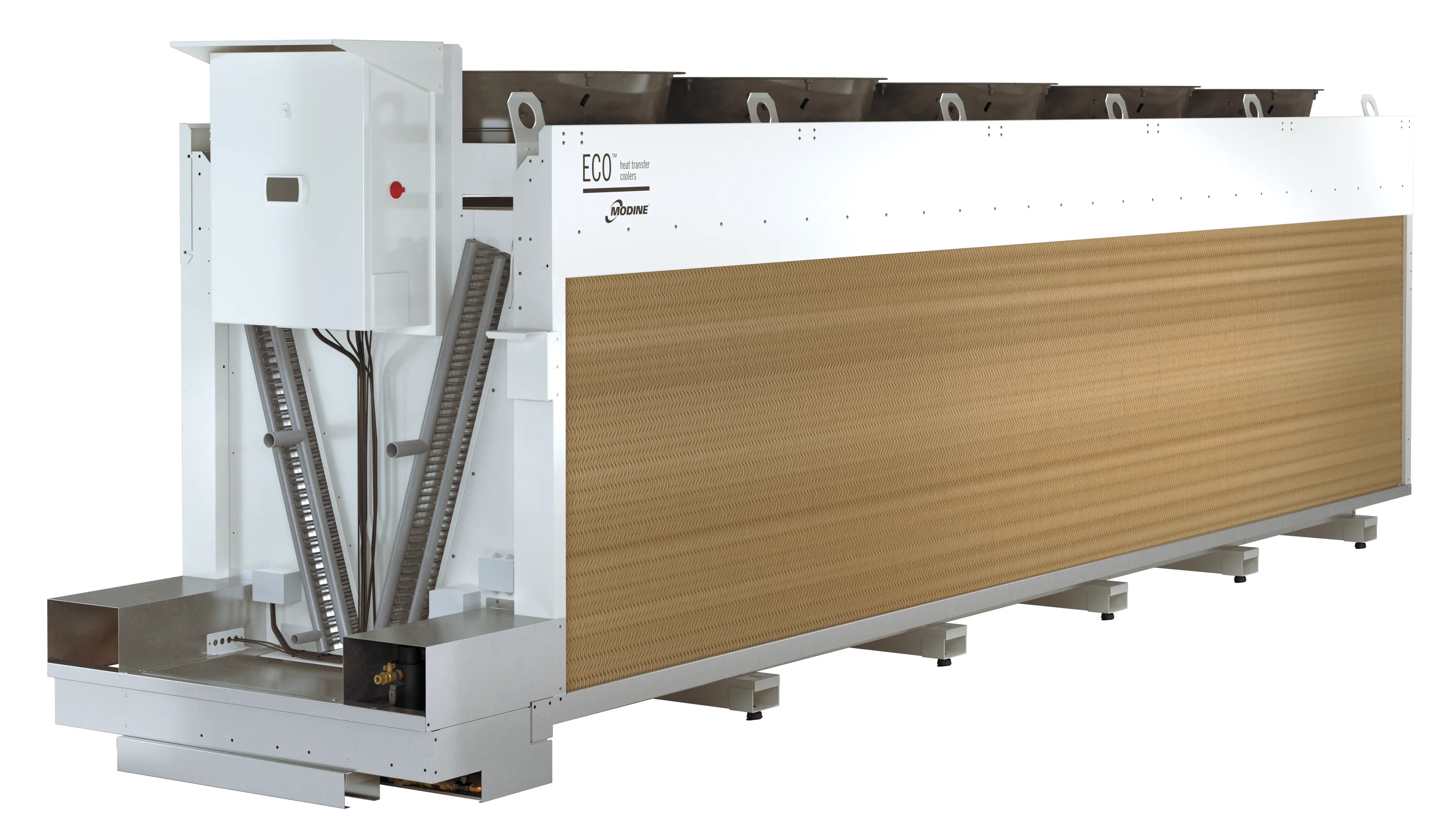

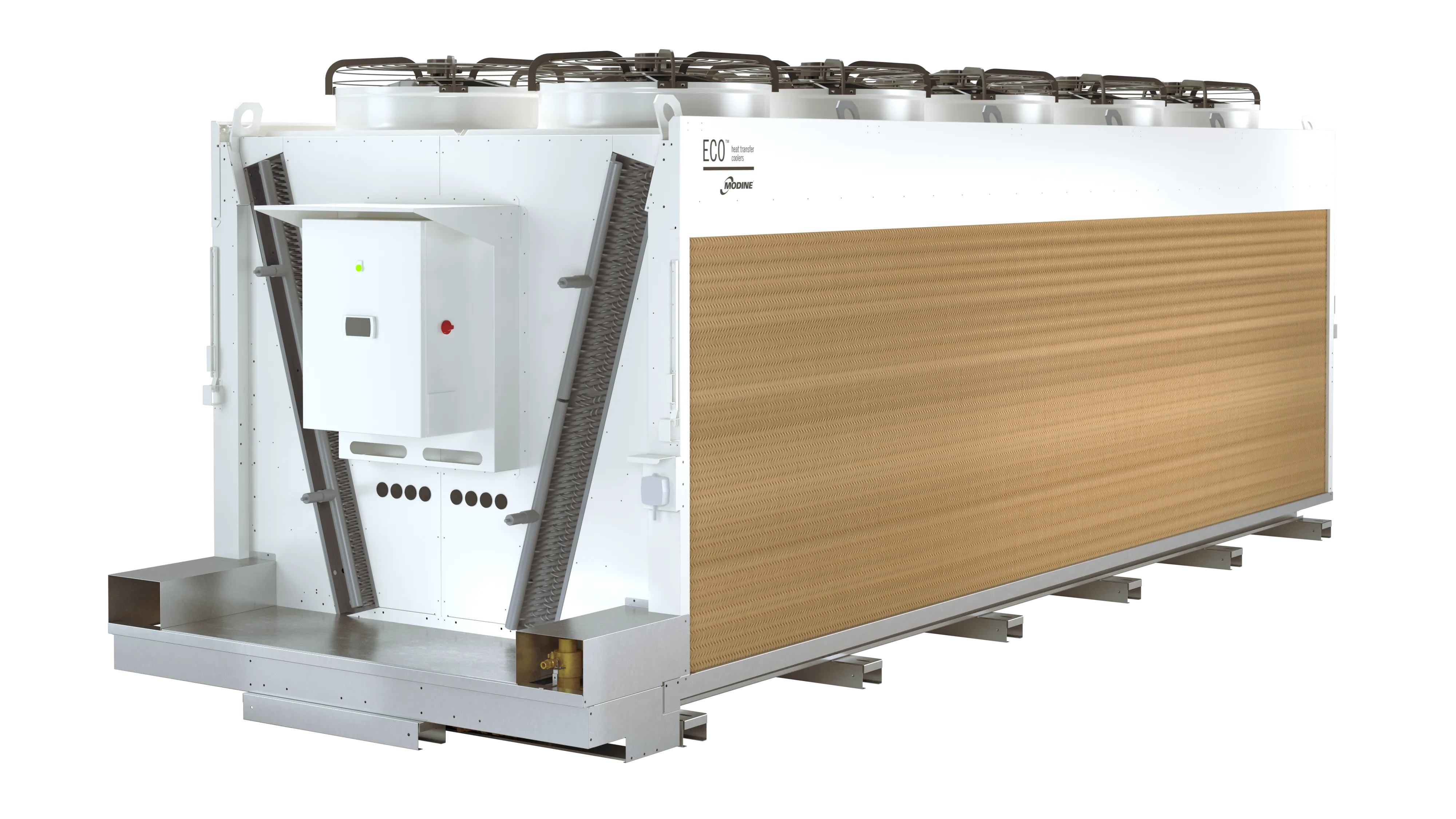

Modine foresaw the importance of adiabatic panels in improving cooling efficiency and developed ECO-BATIC®, a compact, high-performance line of gas coolers designed to meet new environmental standards using CO₂ refrigerants.
Its "all-in-one" design simplifies installation, while premium components like EC fanmotors and efficient heat exchangers ensure top performance.
Innovative features include water-saving systems and predictive tools from the "Scelte" selection software, which forecast water and energy needs globally.
ECO-BATIC® is a smart, sustainable choice that sets new benchmarks in efficiency and environmental responsibility.
Modine foresaw the importance of adiabatic panels in improving cooling efficiency and developed ECO-BATIC®, a compact, high-performance line of gas coolers designed to meet new environmental standards using CO₂ refrigerants.
Its "all-in-one" design simplifies installation, while premium components like EC fanmotors and efficient heat exchangers ensure top performance.
Innovative features include water-saving systems and predictive tools from the "Scelte" selection software, which forecast water and energy needs globally.
ECO-BATIC® is a smart, sustainable choice that sets new benchmarks in efficiency and environmental responsibility.
Modine foresaw the importance of adiabatic panels in improving cooling efficiency and developed ECO-BATIC®, a compact, high-performance line of gas coolers designed to meet new environmental standards using CO₂ refrigerants.
Its "all-in-one" design simplifies installation, while premium components like EC fanmotors and efficient heat exchangers ensure top performance.
Innovative features include water-saving systems and predictive tools from the "Scelte" selection software, which forecast water and energy needs globally.
ECO-BATIC® is a smart, sustainable choice that sets new benchmarks in efficiency and environmental responsibility.
applications
- Commercial AC
- Refrigeration systems
- Close control
- Precision air conditioning
- Data centers
- Commercial AC
- Refrigeration systems
- Close control
- Precision air conditioning
- Data centers
- Commercial AC
- Refrigeration systems
- Close control
- Precision air conditioning
- Data centers
capacity range
From 100 to 1000 kW
From 100 to 1000 kW
From 100 to 1000 kW
Technical Information
Coil features
- The entire range is equipped with high efficiency coils made from special “Air intake” profile aluminium fins and inner grooved copper tube suitable for new generation refrigerants.
- They are supplied charged with dry air at 2 bars and 2,1 mm fin spacing for the entire range.
- Design pressure: up to 130 bar.
- The entire range is equipped with high efficiency coils made from special “Air intake” profile aluminium fins and inner grooved copper tube suitable for new generation refrigerants.
- They are supplied charged with dry air at 2 bars and 2,1 mm fin spacing for the entire range.
- Design pressure: up to 130 bar.
- The entire range is equipped with high efficiency coils made from special “Air intake” profile aluminium fins and inner grooved copper tube suitable for new generation refrigerants.
- They are supplied charged with dry air at 2 bars and 2,1 mm fin spacing for the entire range.
- Design pressure: up to 130 bar.
Casing
- Made of a pre-painted galvanised metal sheet, with a smooth finish covered by a plastic protection film.
Fan motors
The axial fan motors employed on the entire range are the most technologically up-to-date on the market.
New solutions like the hybrid shaped blades or bionic technology are widely used.
These fan motors have a wide range of diameters and rotation speeds.
The standard AC fan motors employed have the following features:
Ø 500 mm
- poles: 4, 6, 8, 12
- fan motor module: from 1 to 8
Ø 630 mm
- poles: 4, 6, 8, 12
- fan motor module: from 1 to 8
Ø 710 mm (EMEA only)
- poles: 4, 6
- fan motor module: from 1 to 4
Ø 800 mm (EMEA only)
- poles: 6, 8 strengthened, 8; 12 (EC only), 12 slowed (EC only), 12 ultra-slowed
- fan motor module: from 1 to 14
Ø 910 mm
- poles: 6 strengthened, 6, 8, 12
- fan motor module: from 1 to 4
Ø 1000 mm
- poles: 6, 12, 12 slowed
- fan motor module: from 1 to 4
Common features
- three-phase 400V/3/50Hz
- dual speed (Delta/Star)
- die-cast aluminum or hybrid aluminum/technopolymer fan blades, with optimized sickle shaped profile
The optional high efficiency EC fan motors have the following features:
Ø 500, 630, 710, 800, 910 or 1000 mm (EMEA only)
- speed control with 0-10V signal
- additional speed regulator with MODBUS systeM
- operating temperature: –25 ÷ +60 °C
The axial fan motors employed on the entire range are the most technologically up-to-date on the market.
New solutions like the hybrid shaped blades or bionic technology are widely used.
These fan motors have a wide range of diameters and rotation speeds.
The standard AC fan motors employed have the following features:
Ø 500 mm
- poles: 4, 6, 8, 12
- fan motor module: from 1 to 8
Ø 630 mm
- poles: 4, 6, 8, 12
- fan motor module: from 1 to 8
Ø 710 mm
- poles: 4, 6
- fan motor module: from 1 to 4
Ø 800 mm
- poles: 6, 8 strengthened, 8; 12 (EC only), 12 slowed (EC only), 12 ultra-slowed
- fan motor module: from 1 to 14
Ø 910 mm
- poles: 6 strengthened, 6, 8, 12
- fan motor module: from 1 to 4
Ø 1000 mm
- poles: 6, 12, 12 slowed
- fan motor module: from 1 to 4
Common features
- three-phase 400V/3/50Hz
- dual speed (Delta/Star)
- die-cast aluminum or hybrid aluminum/technopolymer fan blades, with optimized sickle shaped profile
The optional high efficiency EC fan motors have the following features:
Ø 500, 630, 710, 800, 910 or 1000 mm
- speed control with 0-10V signal
- additional speed regulator with MODBUS systeM
- operating temperature: –25 ÷ +60 °C
The axial fan motors employed on the entire range are the most technologically up-to-date on the market.
New solutions like the hybrid shaped blades or bionic technology are widely used.
These fan motors have a wide range of diameters and rotation speeds.
The standard AC fan motors employed have the following features:
Ø 500 mm
- poles: 4, 6, 8, 12
- fan motor module: from 1 to 8
Ø 630 mm
- poles: 4, 6, 8, 12
- fan motor module: from 1 to 8
Ø 910 mm
- poles: 6 strengthened, 6, 8, 12
- fan motor module: from 1 to 4
Ø 1000 mm
- poles: 6, 12, 12 slowed
- fan motor module: from 1 to 4
Common features
- three-phase 400V/3/50Hz
- dual speed (Delta/Star)
- die-cast aluminum or hybrid aluminum/technopolymer fan blades, with optimized sickle shaped profile
Wiring
- The fan motors and the casework are predisposed for grounding.
Certifications
- CE
- PED
- EAC
Certifications
- ETL
Downloads
EMEA
AMERICAS
Scelte Selection Software
SCELTE is a web based application to select all ECO™ branded coolers and to configure bespoke models.
The selection engine is faster than ever and will allow you to select the unit that suit your requirements, also thanks to a comprehensive database with all new generation refrigerants available on the market.
