overview

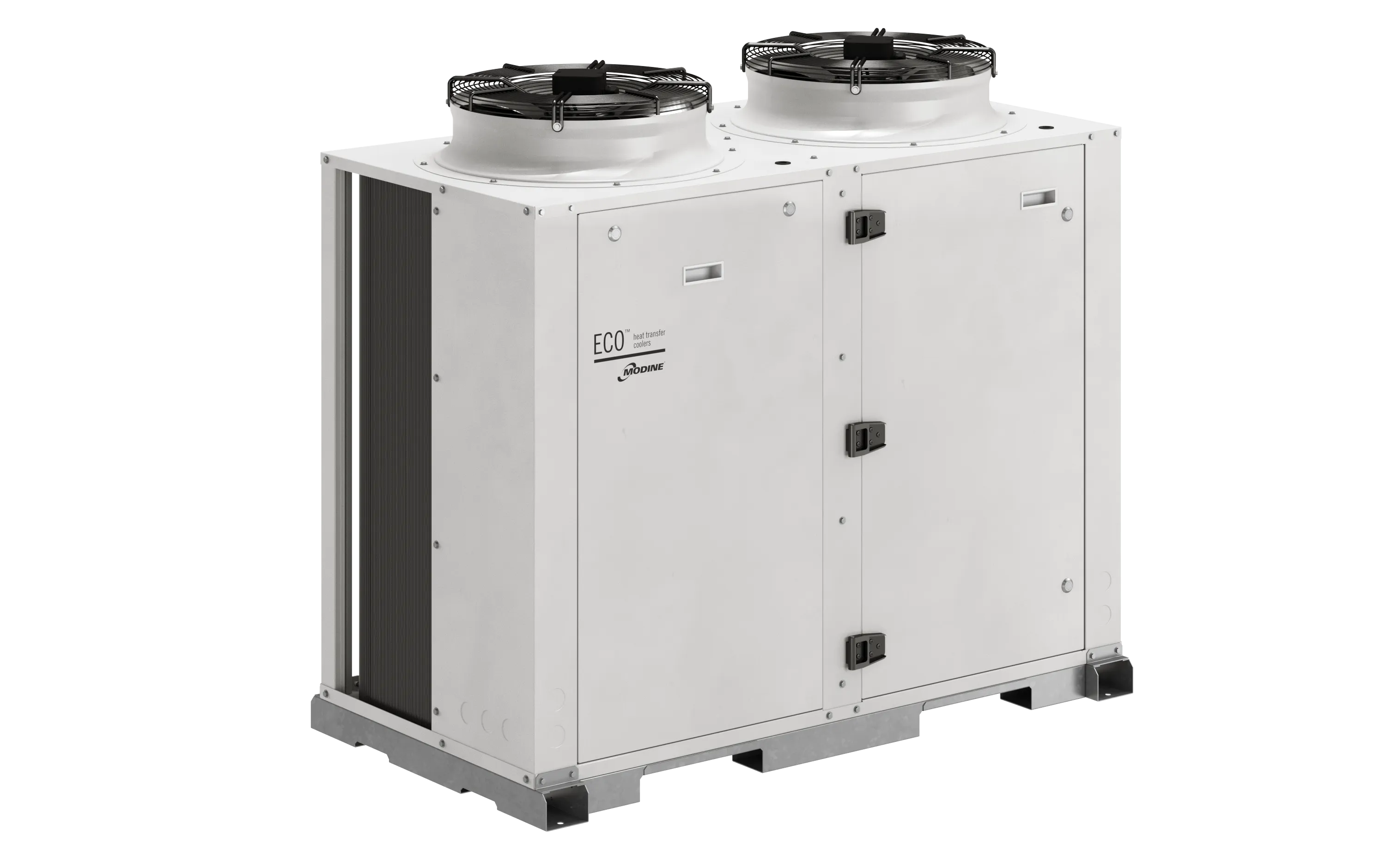

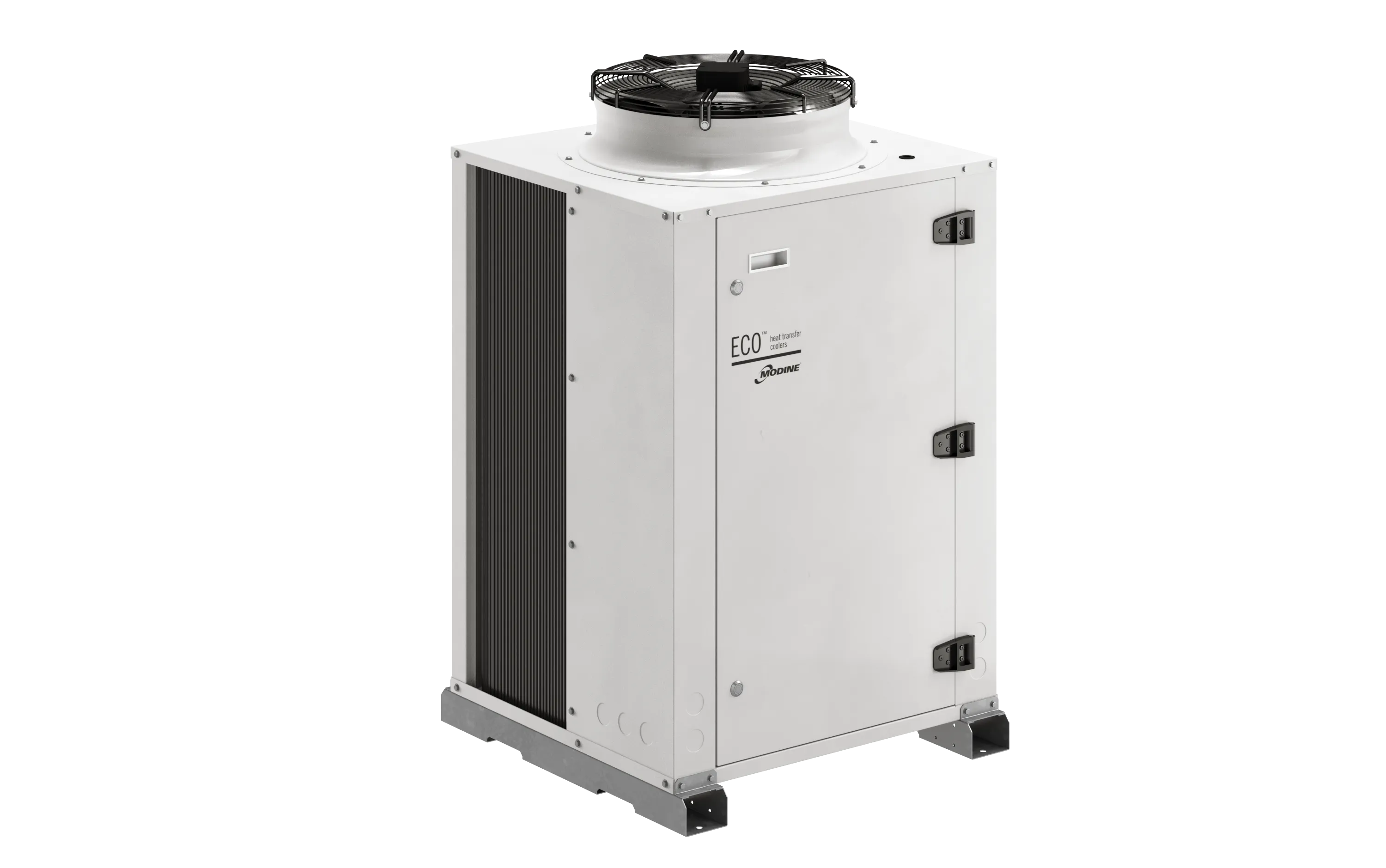

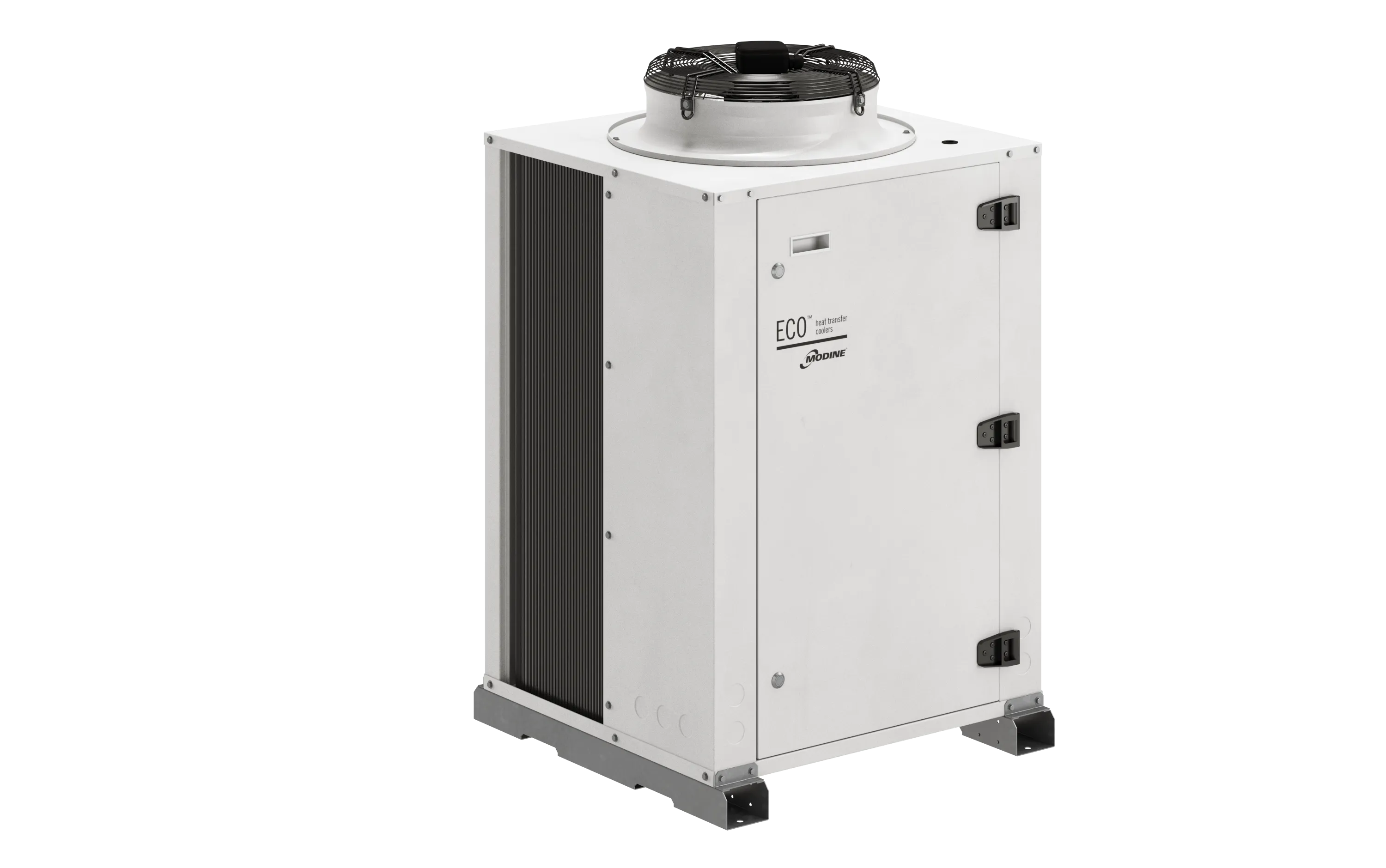

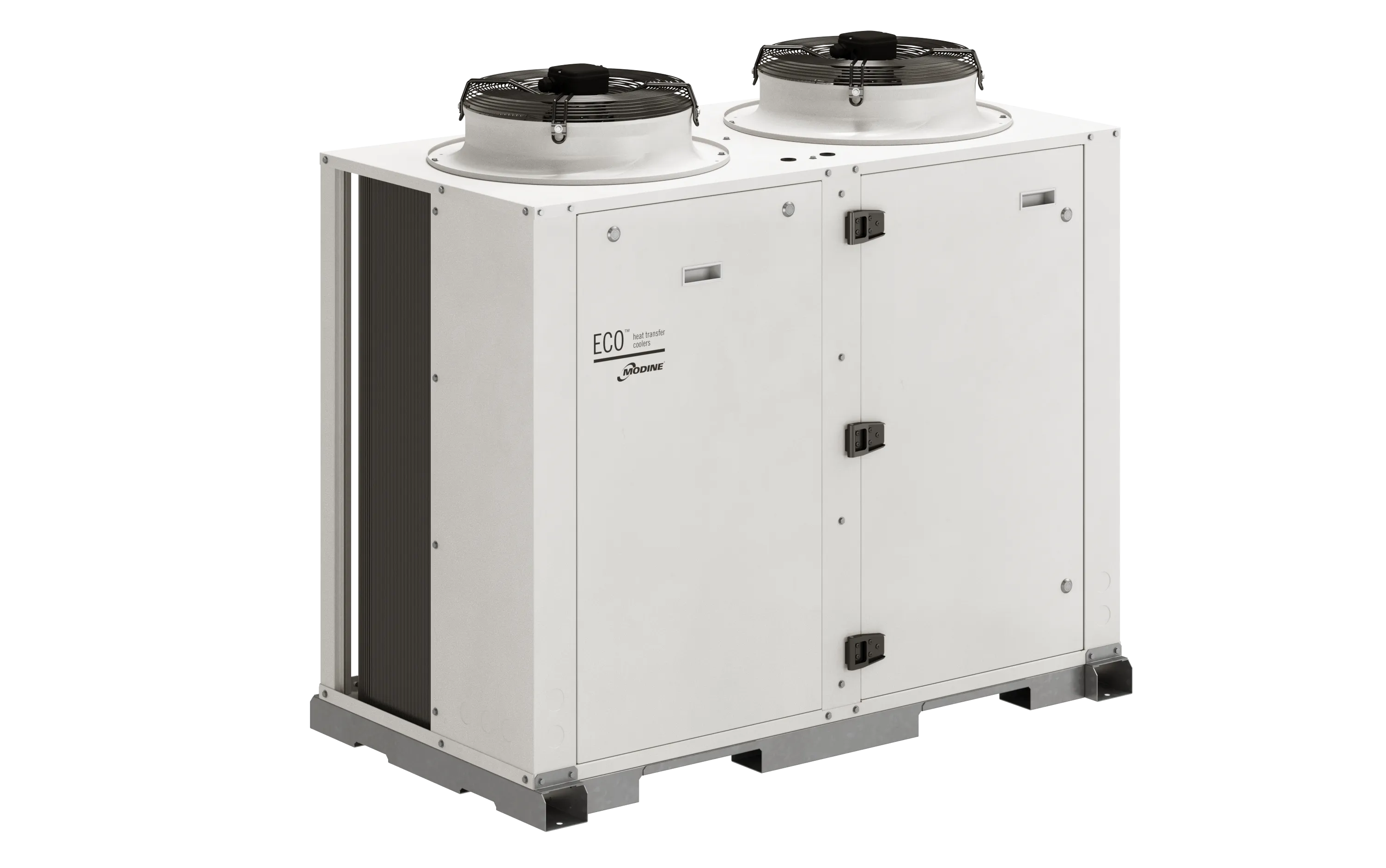

The PCV range with a compartment has been specifically designed to satisfy all possible high quality air conditioning and refrigeration applications.
Range consists of 60 customizable models.
The models of this range are equipped with high efficiency “L” shaped coils to increase its compactness.
Upon request, models can be equipped with non-standard coils, fan motors, and casework with special features.
The PCV range with a compartment has been specifically designed to satisfy all possible high quality air conditioning and refrigeration applications.
Range consists of 60 customizable models.
The models of this range are equipped with high efficiency “L” shaped coils to increase its compactness.
Upon request, models can be equipped with non-standard coils, fan motors, and casework with special features.
The PCV range with a compartment has been specifically designed to satisfy all possible high quality air conditioning and refrigeration applications.
Range consists of 60 customizable models.
The models of this range are equipped with high efficiency “L” shaped coils to increase its compactness.
Upon request, models can be equipped with non-standard coils, fan motors, and casework with special features.
applications
- Air conditioning
- Refrigeration systems
- Air conditioning
- Refrigeration systems
- Air conditioning
- Refrigeration systems
capacity range
From 8,5 to 55,3 kW
From 8,5 to 55,3 kW
Please contact us
Technical Information
Coil features
- The coils of this range are made of special “Air Intake” profile aluminum fins and inner grooved copper tubes, suitable for new generation refrigerants.
- They are supplied charged with dry air at a pressure of 2 bars.
- The fin spacing is 2,1 mm for the entire range.
- The coils of this range are made of special “Air Intake” profile aluminum fins and inner grooved copper tubes, suitable for new generation refrigerants.
- They are supplied charged with dry air at a pressure of 2 bars.
- The fin spacing is 2,1 mm for the entire range.
- The coils of this range are made of special “Air Intake” profile aluminum fins and inner grooved copper tubes, suitable for new generation refrigerants.
- They are supplied charged with dry air at a pressure of 2 bars.
- The fin spacing is 2,1 mm for the entire range.
Casing
- Made of a pre-painted galvanised metal sheet, with a smooth finish covered by a plastic protection film.
- The models have a special compartment designed to accommodate the compressor (not supplied) with a reinforced base and support platform, hinged doors, removable panels and inner protected compartment for the positioning of possible electrical switchboards.
Fan motors
The standard AC fan motors employed have the following features:
Ø 450 mm
- fan motor module: 1 or 2
- 230V/1/50-60 Hz single-phase
- with 4 or 6 poles
- external rotor type
- built-in electric capacitor
- epoxy coated steel fan guard
Ø 500 mm
- fan motor module: 1 or 2
- 230V/1/50-60 Hz single-phase
- with 4 or 6 poles
- external rotor type
- built-in electric capacitor
- epoxy coated steel fan guard
Ø 630mm
- fan motor module: 1 or 2
- 230V/1/50 Hz 6 poles single-phase or 400V/3/50 Hz 8 poles three-phase
- external rotor type
- built-in electric capacitor
- epoxy coated steel fan guard
Ø 710mm
- fan motor module: 1 or 2
- 230V/1/50 Hz 6 poles single-phase or 400V/3/50 Hz 4 poles three-phase
- external rotor type
- built-in electric capacitor
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 450, 500, 630 or 710 mm
- speed regulator with 0-10V signal
- fan motor module: the same as AC fan motors
- operating temperature: –25 °C ÷ +60 °C
The standard AC fan motors employed have the following features:
Ø 450 mm
- fan motor module: 1 or 2
- 230V/1/50-60 Hz single-phase
- with 4 or 6 poles
- external rotor type
- built-in electric capacitor
- epoxy coated steel fan guard
Ø 500 mm
- fan motor module: 1 or 2
- 230V/1/50-60 Hz single-phase
- with 4 or 6 poles
- external rotor type
- built-in electric capacitor
- epoxy coated steel fan guard
Ø 630mm
- fan motor module: 1 or 2
- 230V/1/50 Hz 6 poles single-phase or 400V/3/50 Hz 8 poles three-phase
- external rotor type
- built-in electric capacitor
- epoxy coated steel fan guard
Ø 710mm
- fan motor module: 1 or 2
- 230V/1/50 Hz 6 poles single-phase or 400V/3/50 Hz 4 poles three-phase
- external rotor type
- built-in electric capacitor
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 450, 500, 630 or 710 mm
- speed regulator with 0-10V signal
- fan motor module: the same as AC fan motors
- operating temperature: –25 °C ÷ +60 °C
Please contact us
Wiring
- The fan motors and the casework are predisposed for grounding.
Certifications
- CE
- PED
Published data
- EN 327 reference standard
- The stated capacity is assessed based on ambient temperature 25 °C and condensing temperature 40 °C with R448A (mid-point)
- EN 327 reference standard
- The stated capacity is assessed based on ambient temperature 25 °C and condensing temperature 40 °C with R448A (mid-point)
Downloads
Scelte Selection Software
SCELTE is a web based application to select all ECO™ branded coolers and to configure bespoke models.
The selection engine is faster than ever and will allow you to select the unit that suit your requirements, also thanks to a comprehensive database with all new generation refrigerants available on the market.
