overview

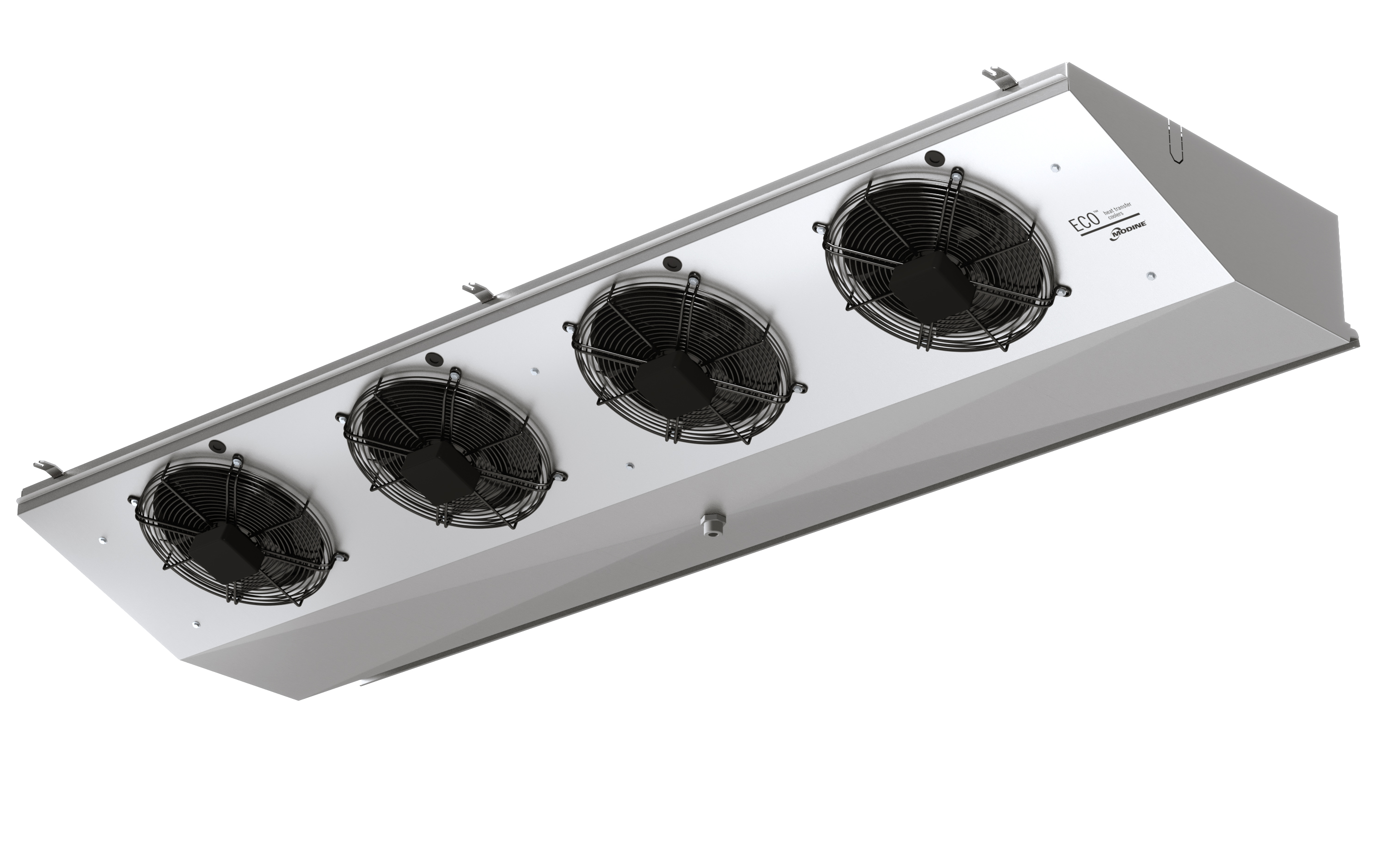

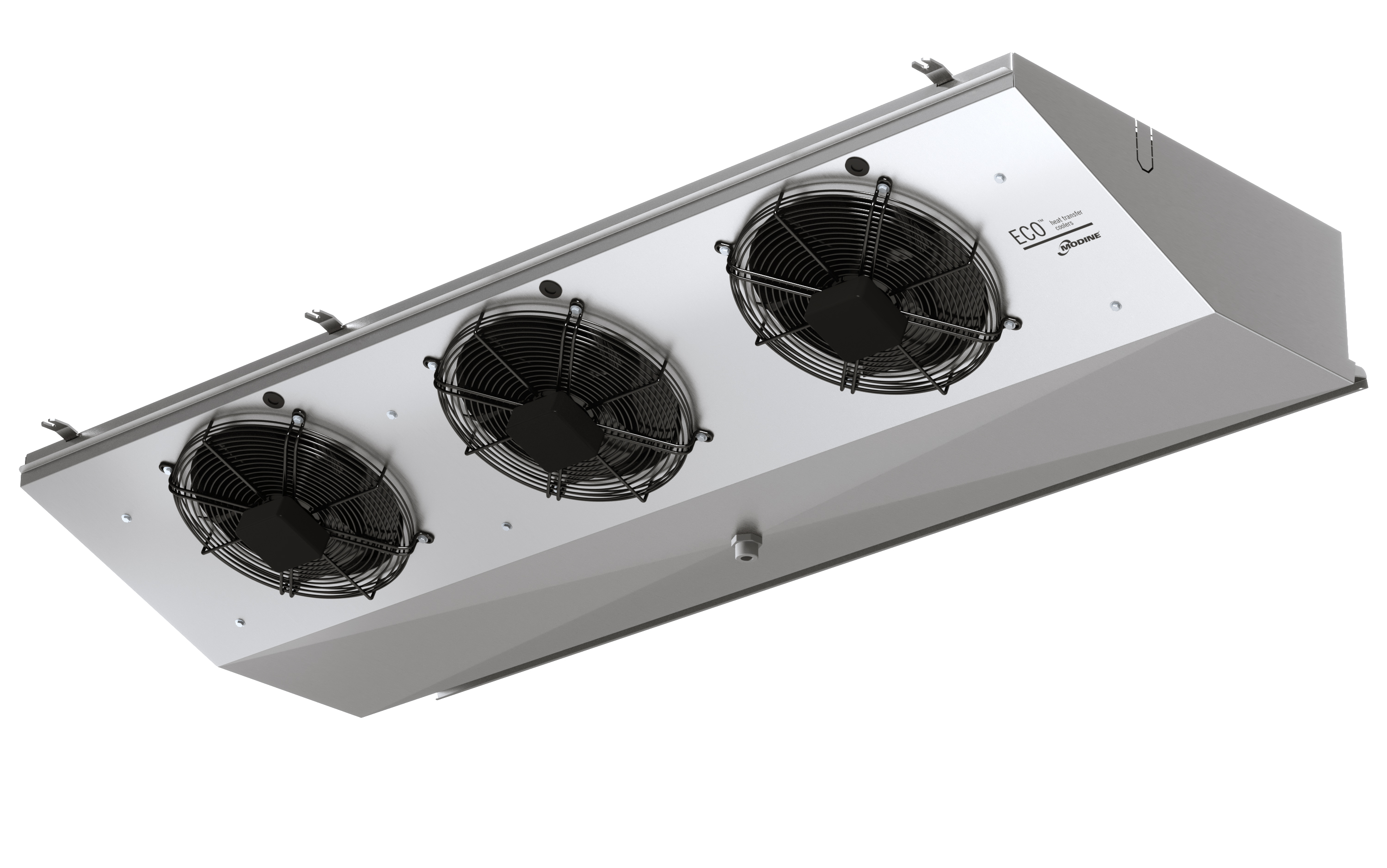

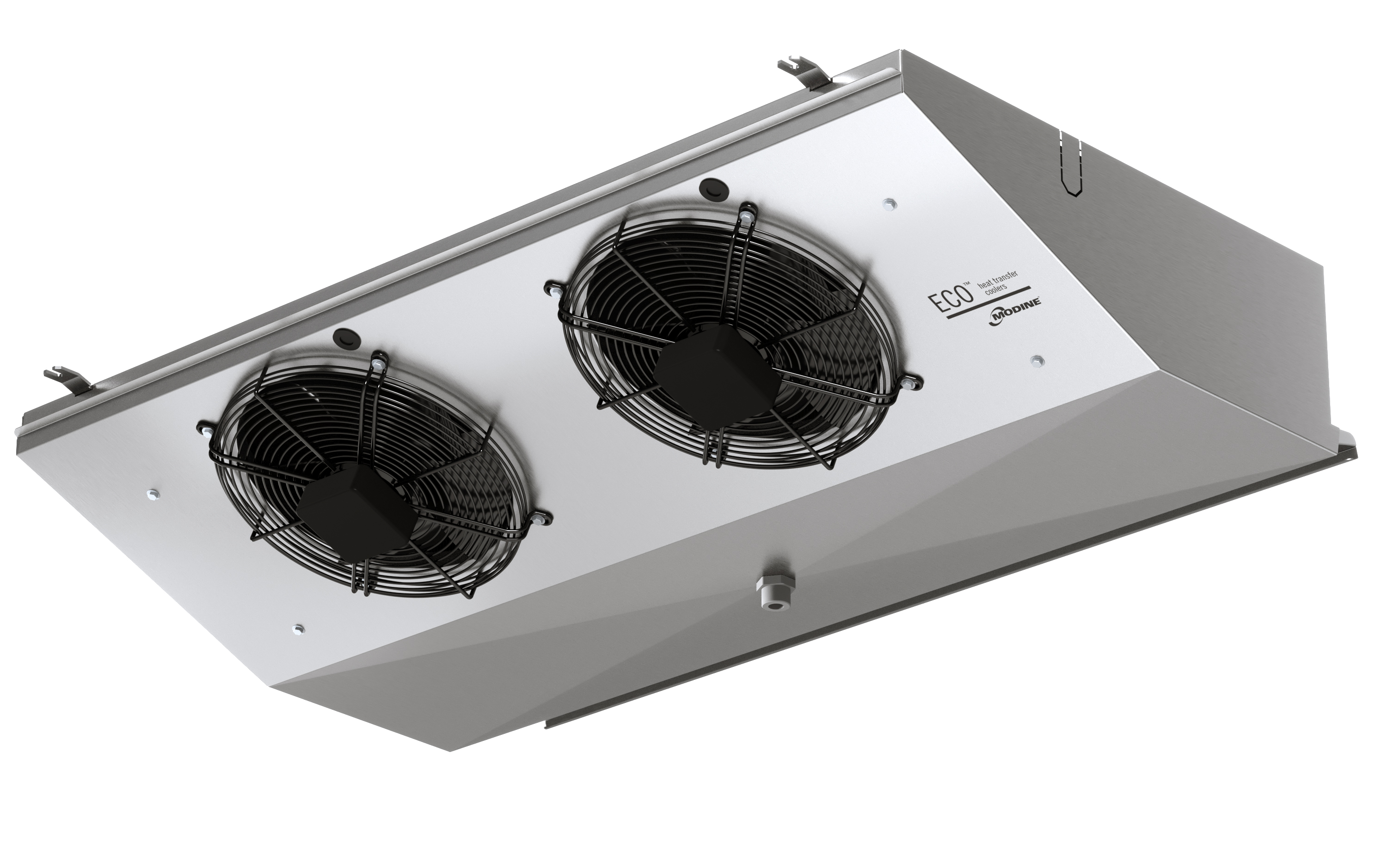

Range consists of 8 customizable models.
According to the room temperature, the range is divided as follows:
- STE H3 for higher temperatures (≥ +2 °C) with 3,5 mm fin spacing;
- STE L7 for lower temperatures (≥ –25 °C) with 7 mm fin spacing, electric defrost version (ED) is recommended.
On request, the models can be equipped with non-standard coils, defrosting, and fan motors.
Range consists of 8 customizable models.
According to the room temperature, the range is divided as follows:
- STE H3 for higher temperatures (≥ +2 °C) with 3,5 mm fin spacing;
- STE L7 for lower temperatures (≥ –25 °C) with 7 mm fin spacing, electric defrost version (ED) is recommended.
On request, the models can be equipped with non-standard coils, defrosting, and fan motors.
applications
- Small cold rooms
- Walk-in cabinets
- Low ceiling commercial refrigeration cold rooms
- Small cold rooms
- Walk-in cabinets
- Low ceiling commercial refrigeration cold rooms
capacity range
From 2,14 to 8,88 kW
From 2,14 to 8,88 kW
Technical Information
Coil features
- The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable for new generation refrigerants.
- The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable for new generation refrigerants.
Casing
- Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film.
Fan motors
The standard AC fan motors employed have the following features:
Ø 315 mm
- fan motor module: from 1 to 4
- external rotor
- single phase 230V/1/50-60 Hz
- built-in electric capacitor
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 300 mm
- fan motor module: from 1 to 4
- external rotor
- single phase 230V/1/50-60 Hz
- epoxy coated steel fan guard
The standard AC fan motors employed have the following features:
Ø 315 mm
- fan motor module: from 1 to 4
- external rotor
- single phase 230V/1/50-60 Hz
- built-in electric capacitor
- epoxy coated steel fan guard
The optional high efficiency EC fan motors have the following features:
Ø 300 mm
- fan motor module: from 1 to 4
- external rotor
- single phase 230V/1/50-60 Hz
- epoxy coated steel fan guard
Defrost
Wiring
- The electric parts and casework are connected to an earth terminal.
- The wiring of the fan motors and heaters is carried out in separate IP 54 protection grade junction boxes.
Published data
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- R404A refrigerant.
- Air inlet temperature 0 °C.
- Evaporating temperature –8 °C.
- TD 8 K.
- EN 328 reference standard.
- Nominal capacity assessed in practical operating ambient i.e. in wet conditions.
- R404A refrigerant.
- Air inlet temperature 0 °C.
- Evaporating temperature –8 °C.
- TD 8 K.
