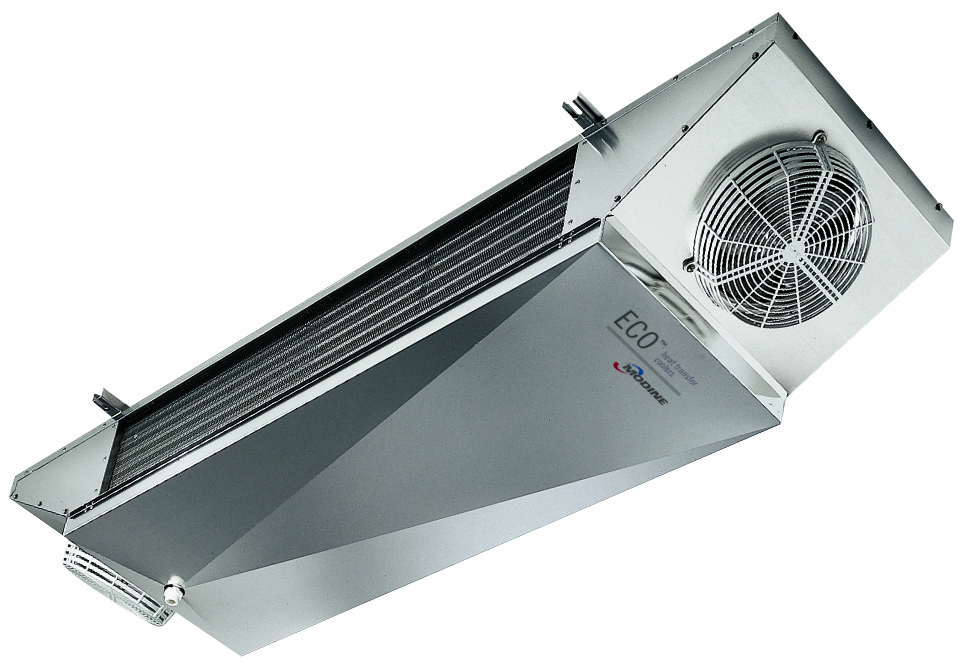

GLE-W

LFE

Applications

  • Food processing rooms (fresh and sensitive products, sea food, meat)

Capacity Range

Unit coolers: From 2,9 to 7,4 kW

Brine coolers: Please use Scelte selection software

GLE-W Specifications

Overview

Range consists of 5 customizable models.

On request, the models can be equipped with non-standard coils, defrosting, and fan motors.

Coil Features
The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, designed for new generation refrigerants. (smooth tube for brine coolers). For the entire range 5 mm fin spacing, for room temperature ≥ –5 °C
Casing
Casing Features Made of a magnesium aluminum alloy, with a smooth finish covered by a plastic protection film
Fan Motors
The standard AC fan motors employed have the following features:
  • Ø 250 mm:
  • shaded pole
  • single-phase 230V/1/50-60Hz
  • fibreglass charged polyamide fan guard
  • Ø 315 mm:
  • external rotor
  • single-phase 230V/1/50-60Hz
  • fbuilt-in electric capacitor
  • epoxy coated steel fan guard

The optional high efficiency EC fan motors have the following features:
  • Ø 250 mm:
  • single-phase 230V/1/50-60Hz
  • fibreglass charged polyamide fan guard
  • Ø 300 mm:
  • external rotor
  • single-phase 230V/1/50-60Hz
  • fbuilt-in electric capacitor
  • epoxy coated steel fan guard
Defrost
The versions with standard electric defrost (ED) are equipped with stainless steel heaters with vulcanised terminals preset for 400V/3/50-60 Hz connection
Wiring
The electric parts and casework are connected to a grounding terminal, the wiring of the motors and heaters is carried out in separate IP 54 protection grade junction boxes
Certifications
  • CE
  • PED
  • TÜV SÜD (Please see cerfified model list on the catalogue)
Published Data
  • EN 328 reference standard
  • Nominal capacity assessed in practical operating ambient i.e. in wet conditions
  • R448A refrigerant (media glide
  • air inlet temperature 0 °C
  • evaporating temperature –8 °C
  • TD 8 K
